Features:

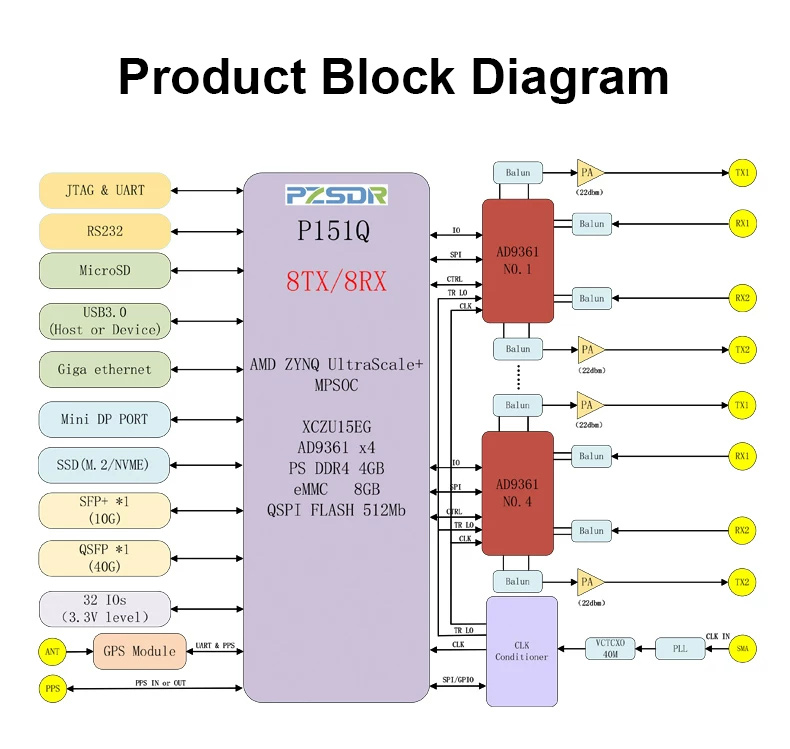

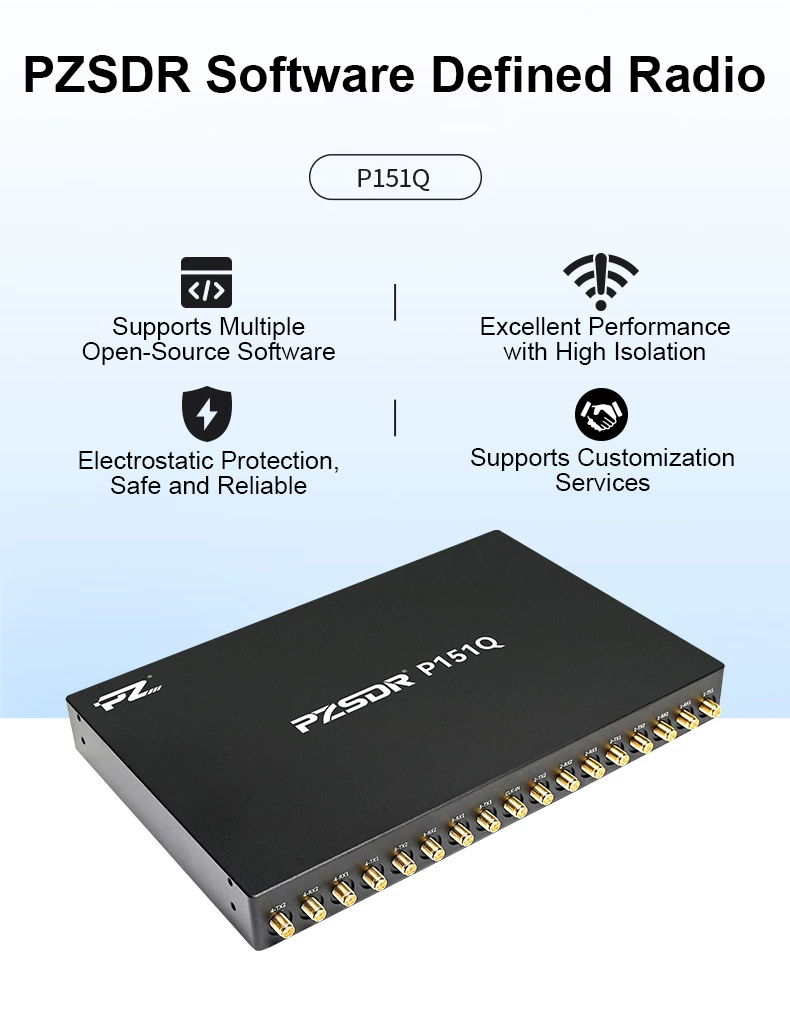

* PZSDR Software Defined Radio
* P151Q (XCZU15EG + AD9361x4)
* RF Chip AD9361BBCZ, Frequency Range 70MHz-6GHz, Signal Bandwidth 200KHz-56MHz
* PS Side 4GB DDR4, 512Mb (256Mb x 2) QSPI FLASH, and 22dbm Power Amplifier

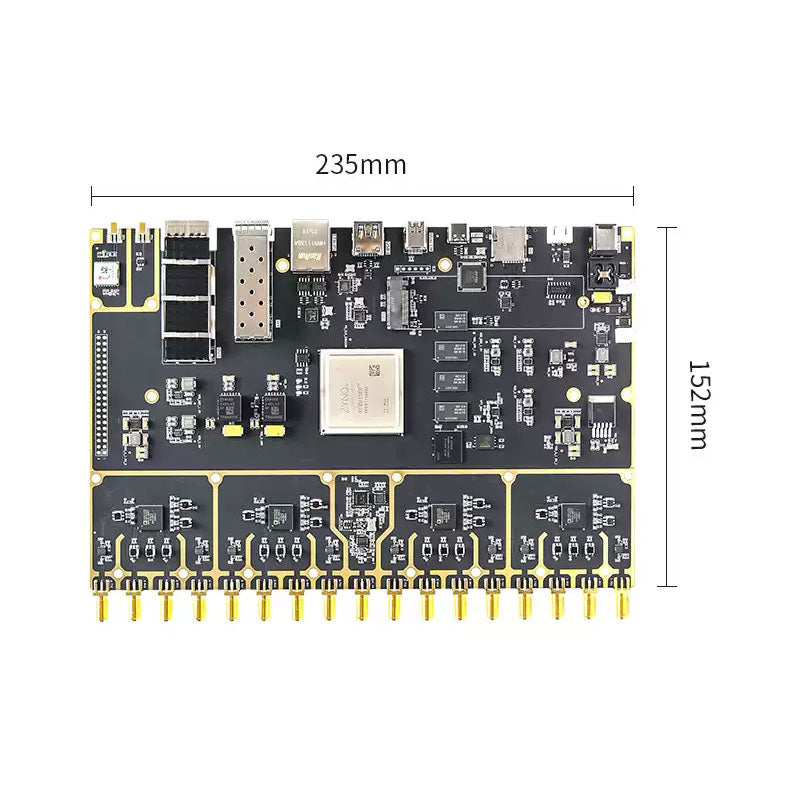

* Dimensions: Board 235mm x 152mm, Shell 245mm x 160mm x 28mm

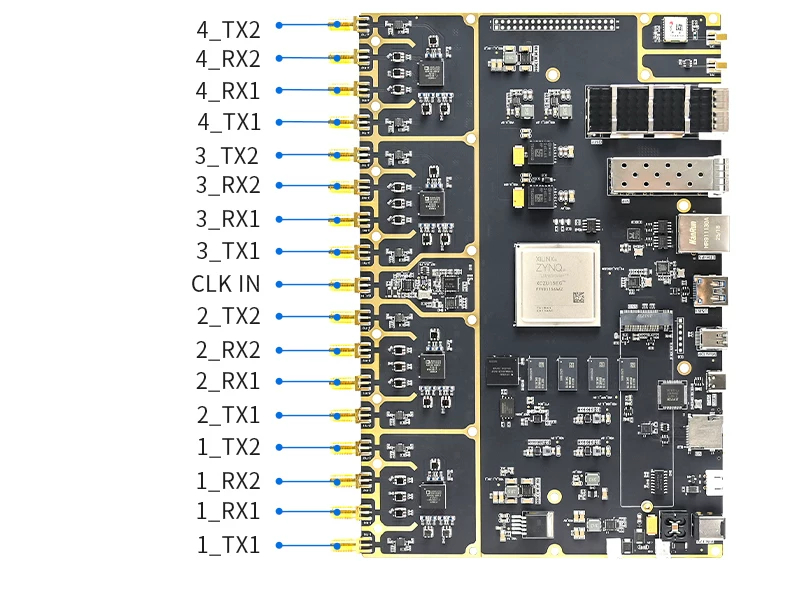

* 8TX 8RX, High Isolation Excellent Performance, Static Protection Safe and Reliable
* Multi-Channel High Linearity and High Sensitivity
* Supports FDD and MIMO
* Supports Signal Detection and Storage
* Provides Host PC Software
Industrial SDR Board:
* Operating Temperature: -40°C to 85°C (Extreme Cold & Heat, Outdoor Enclosures)
* Stability & Lifespan: Designed for 7x24 continuous operation scenarios, with high MTBF (Mean Time Between Failures)
* Anti-Interference Capability: Electromagnetic Interference (EMI) Resistance, Full-Interface ESD Protection + RF Shielding
* Price & Cost: Higher price, due to high component costs for wide temperature ranges and rigorous testing
* Common Applications: Industrial Automation, Outdoor Telecom Base Stations, Power Monitoring, Traffic Monitoring, Phased Array Radar, and Spectrum Monitoring
Rich Support Resources:
Initial Code & Firmware
* ADI-NOOS Bare-Metal Test Code
* ADI-FMCOMMS5 Partially Compatible Firmware
* OpenWifi Test Firmware
* ADI-IIO-USB3.0 (NCM-3.75G)-EMMC Test Firmware
Open-Source Project Support
* ADI IIO-oscilloscope
* Spectrum Analyzer Host PC Software
Software Support
* Libiio
* ADI IIO-oscilloscope
* Host PC Acquisition & Processing Software
Specifications:
* Model: P151Q
* Main Controller: XCZU15EG-2FFVB1156I
* Core: 4 x Cortex-A53-1.333GHz, 2 x Cortex-R5F-533MHz
* Speed Grade: Grade 2
* Temperature Grade: Industrial Grade (-40°C to 85°C)
* Logic Cells: 747K
* Look-Up Tables: 341000
* Flip-Flops: 682000
* DSP Slices: 3528
* BLOCK RAM: 26.2Mb
* RF Chip: AD9361BBCZ
* Frequency Range: 70MHz-6GHz
* Signal Bandwidth: 200kHz-56MHz
* Power Amplification: 22dBm
* DDR4: PS side 4GB
* QSPI FLASH: 512Mb (256Mb x 2)
* RF Clock: Onboard 40M VCTCXO (0.1PPM)/External Input

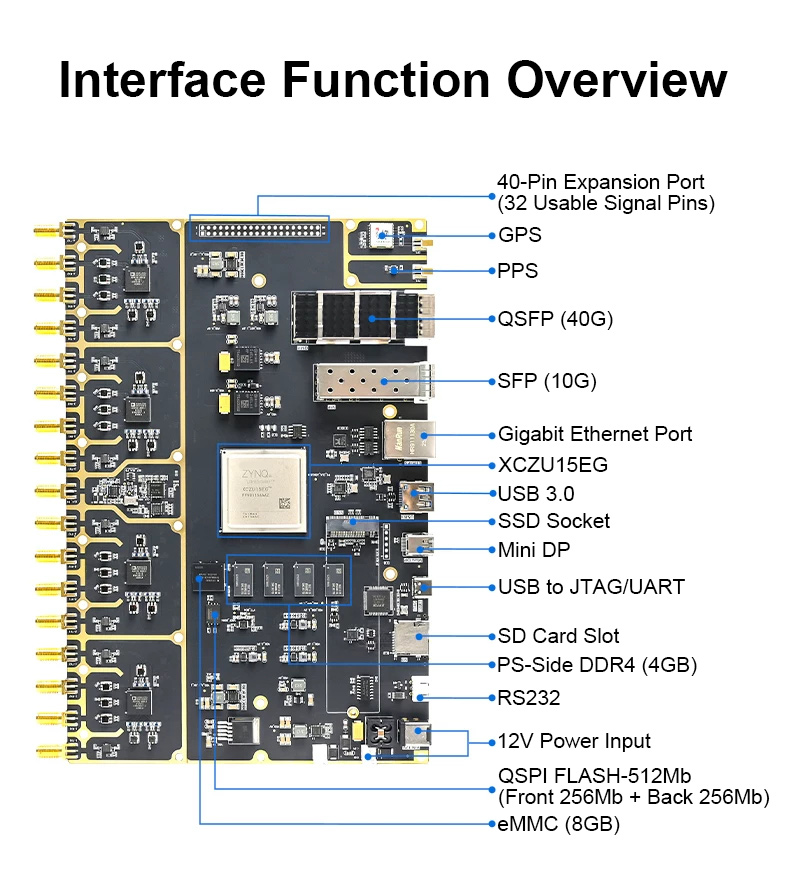

* Gigabit Ethernet: PL side 1 channel
* USB 3.0: 1 channel
* UART: 1 channel
* JTAG: 1 channel
* SD Card Slot: 1 channel
* GPS: 1 channel
* PPS: 1 channel
* External Clock Input: 1 channel
* Expansion IO: 40P 2.54mm Pitch Connector (Including 5V/3.3V Power Supply and 32 Signal Lines)

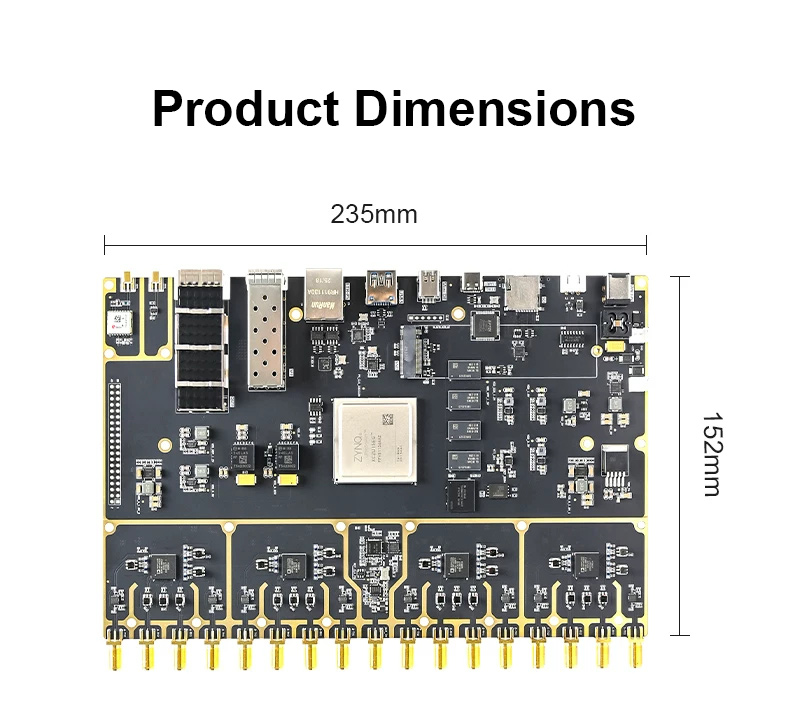

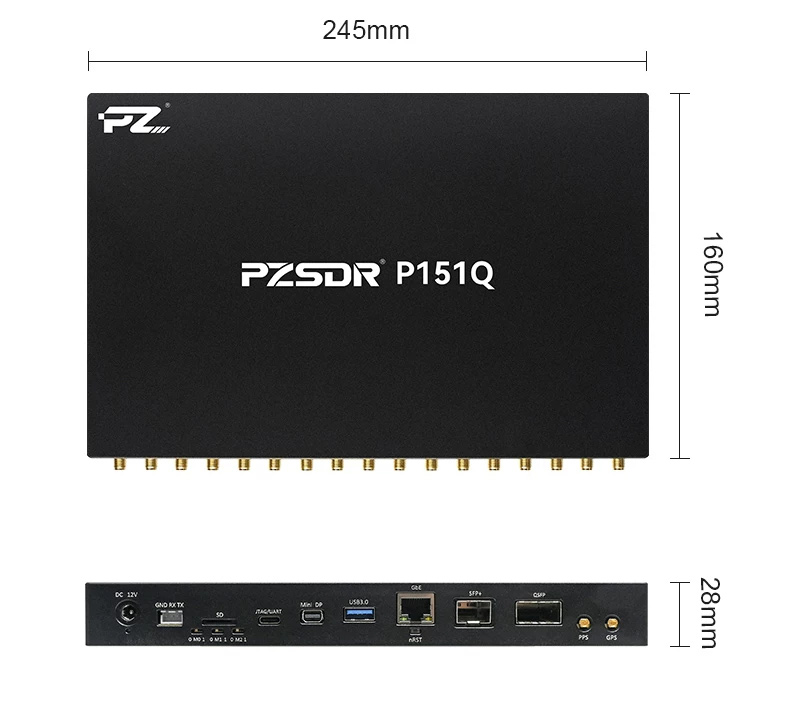

* Dimensions: Single Board: 235mm x 152mm; Enclosure: 245mm x 160mm x 28mm
* Protection Level: All External Interfaces Feature ESD Protection; Clock/RF Sections Feature Shielding Protection
* Power Supply: 12V/3A
Packing List:
* 1 x Board
* 1 x Enclosure
* 1 x 12V/3A Power Adapter
* 1 x GPS Antenna
* 1 x Type-C Cable
* 1 x USB 3.0 Data Cable with Two Plugs
* 1 x Gigabit Ethernet Cable
* 4 x Dual-Band Rubber Antennas (2.4GHz/5.8GHz)
* 2 x Spring Antennas (100MHz-6GHz)
* 1 x 32GB SD Card
* 1 x SD Card Reader
Packaging Details:
* Package weight: 1.1kg
