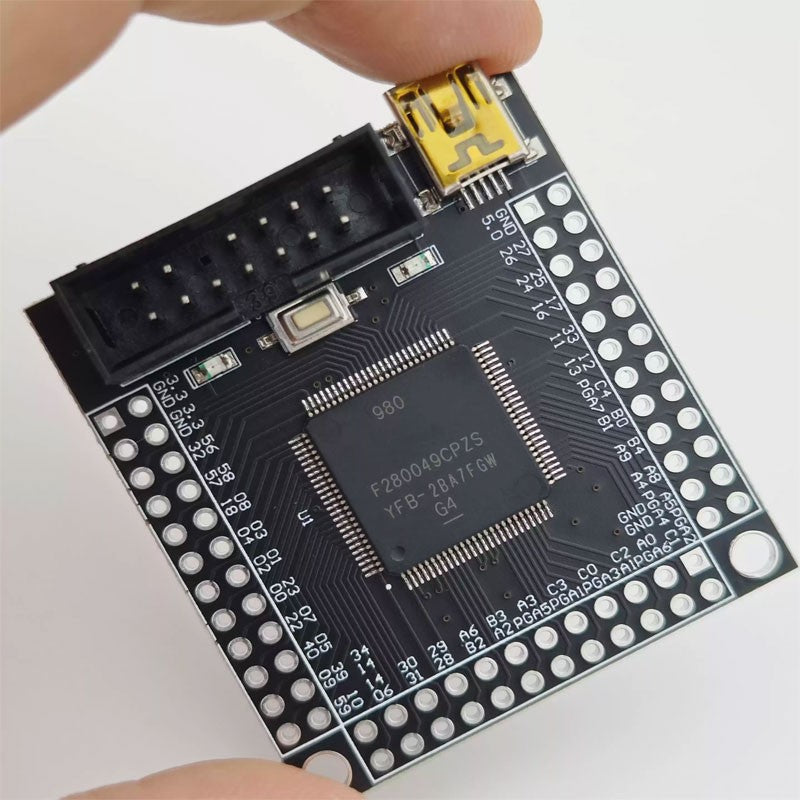

HamGeek TMS320F280049CPZS C2000 280049C C28xx DSP Development Board Finished Core Board for TI Embedded System
Preço normal
$35.00
Preço normal
Preço promocional
$35.00
Preço unitário
por
Frete calculado no checkout.
Não foi possível carregar a disponibilidade de retirada.
Availability:
Out of stock
SKU:
105767
Preço normal
$35.00
Preço normal
Preço promocional
$35.00
Product Status:
* Finished Product: All components soldered, with pin headers

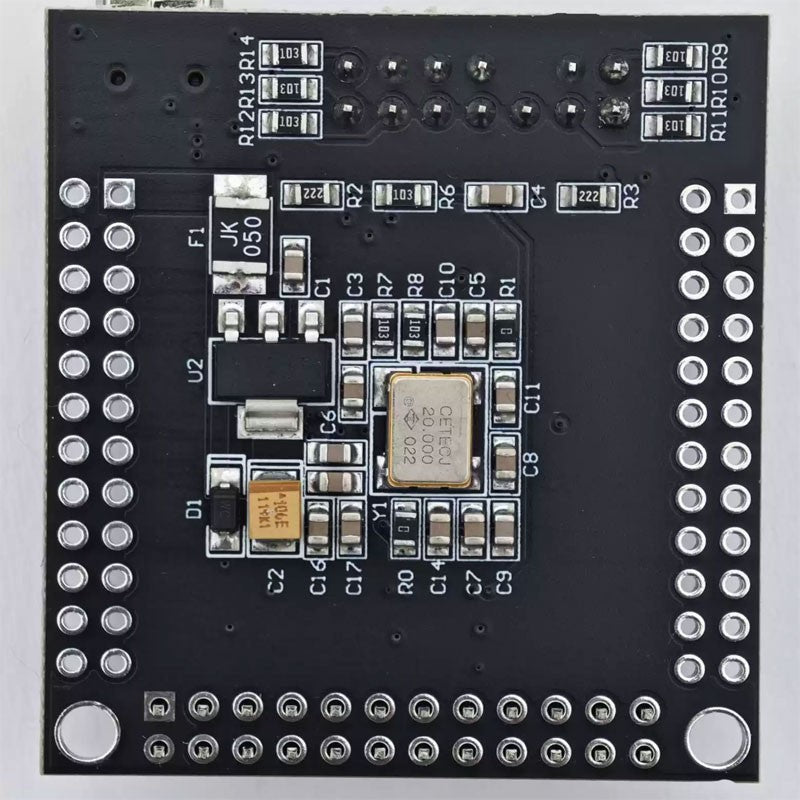

Features of Development Board Circuit:
* Complete power supply system, only 5V external power input is required for operation
* 5070 package 20MHz active crystal oscillator, main frequency can be set via PLL
* One power indicator LED to indicate power-on status of the circuit board
* One test LED, which can be controlled by users through programs
* One reset button for manual reset
External Interfaces of Development Board:
* Mini USB socket (5V/500mA)
* Anti-reverse 14P/2.54mm standard JATG socket
* 3 rows of DIP18x2 2.54mm standard pitch pin headers with all chip IO ports brought out; total 64 ports: 38 GPIO, 19 ADC channels, and 7 comparator channels.
Specifications:
* On-Board Chip Model: TMS320F280049CPZS
* Development Board Dimension: 41mm x 46mm
* Power Supply Mode: 5V/500mA (Power can be supplied via pin header or mini USB)
* PCB Layers: 4 Layers
* Download Method: JTAG
* Development Environment: CCS

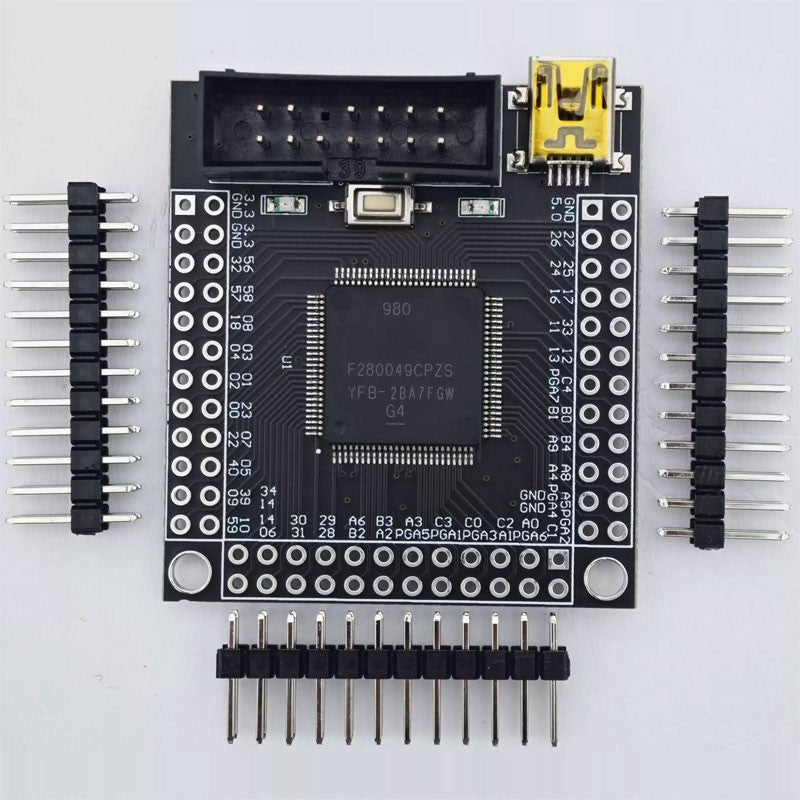

Packing List:
* 1 x Development Board
* 3 x Pin Headers
Packaging Details:
* Package weight: 0.22kg
