PZ-V7690TF-SOM FPGA Core Board Virtex-7 JFM7VX690T36 Industrial Board 693K Logic Cells 2GB+2GB DDR3
$5,202.00 - $5,284.00
Frete calculado no checkout.
Preço normal
$5,202.00
Preço normal
Preço promocional
$5,202.00
Preço unitário
por
Não foi possível carregar a disponibilidade de retirada.
Availability:
Out of stock
SKU:
105309
Preço normal
$5,202.00
Preço normal
Preço promocional
$5,202.00
Available Configurations:

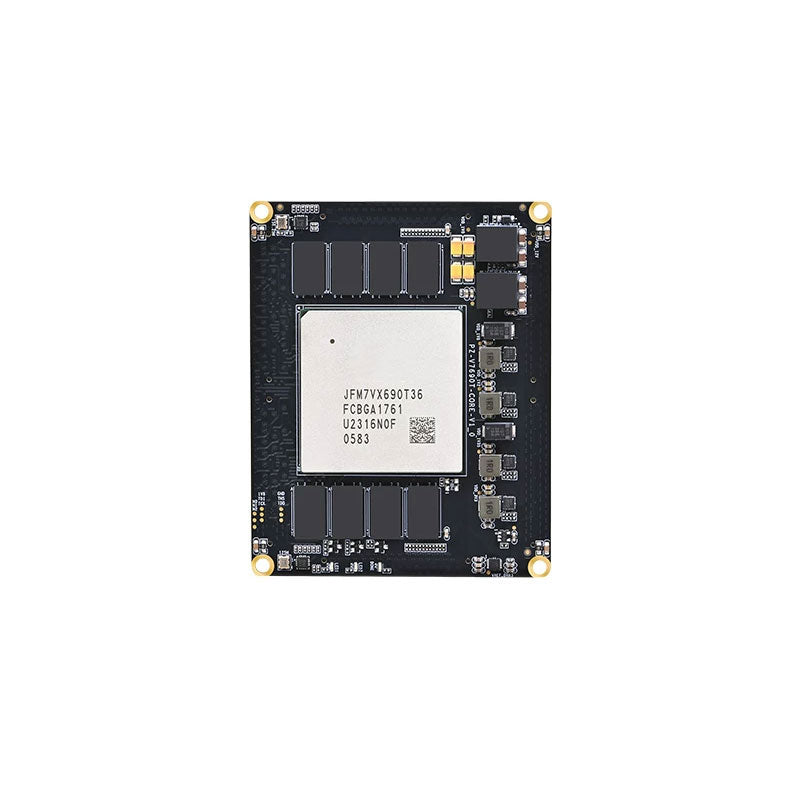

* Core Board Only

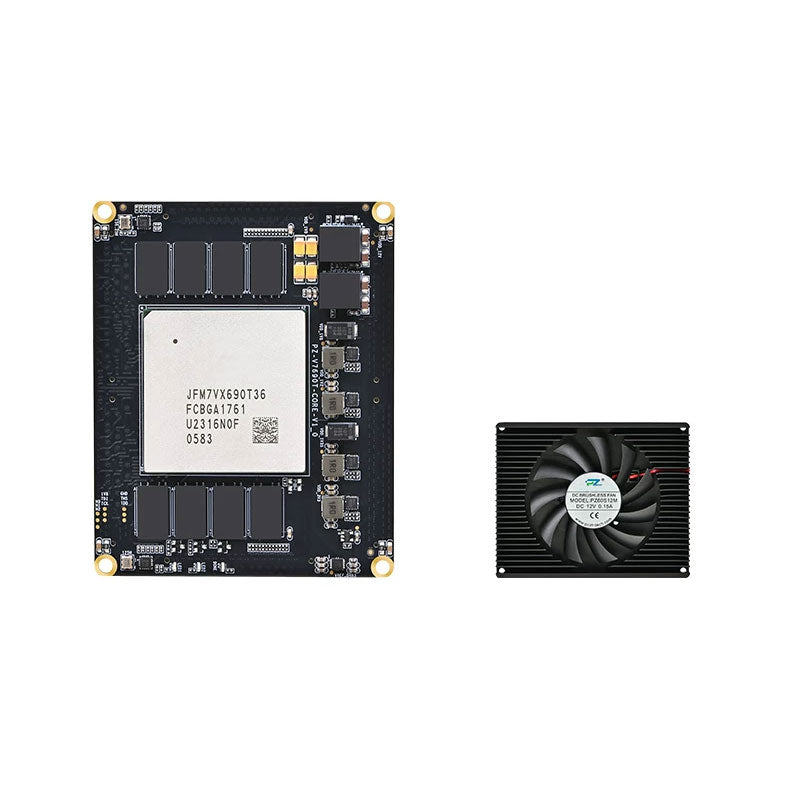

* Core Board + Heatsink

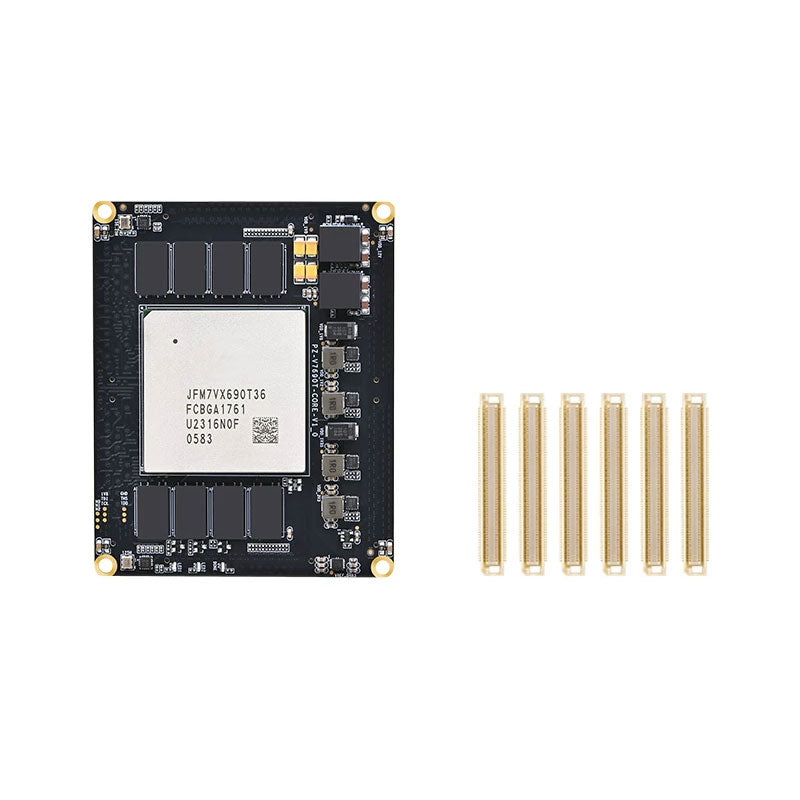

* Core Board + Connector

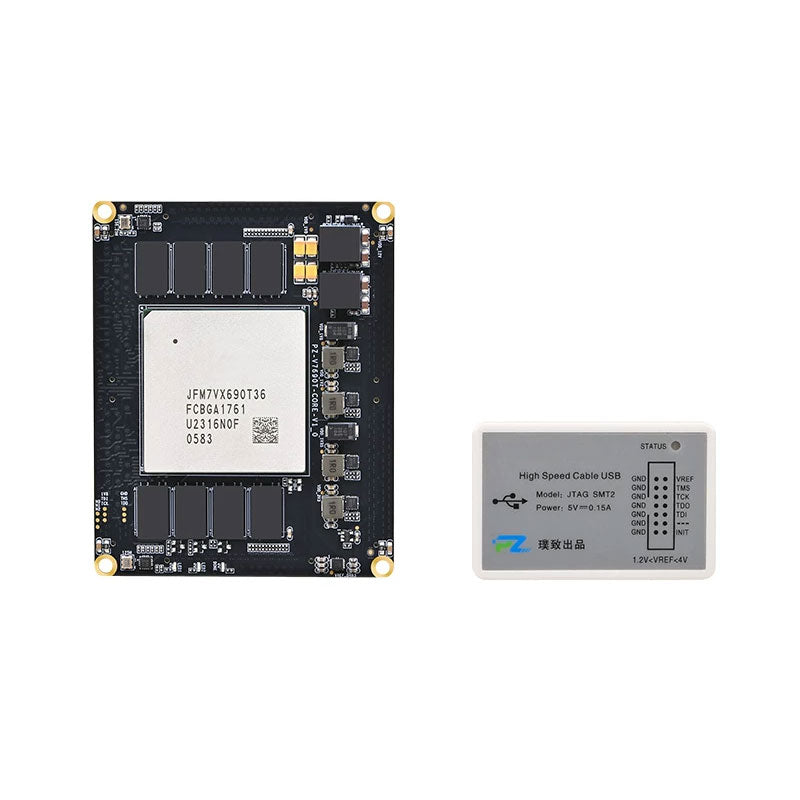

* Core Board + Downloader
* Core Board + Heatsink + Connector

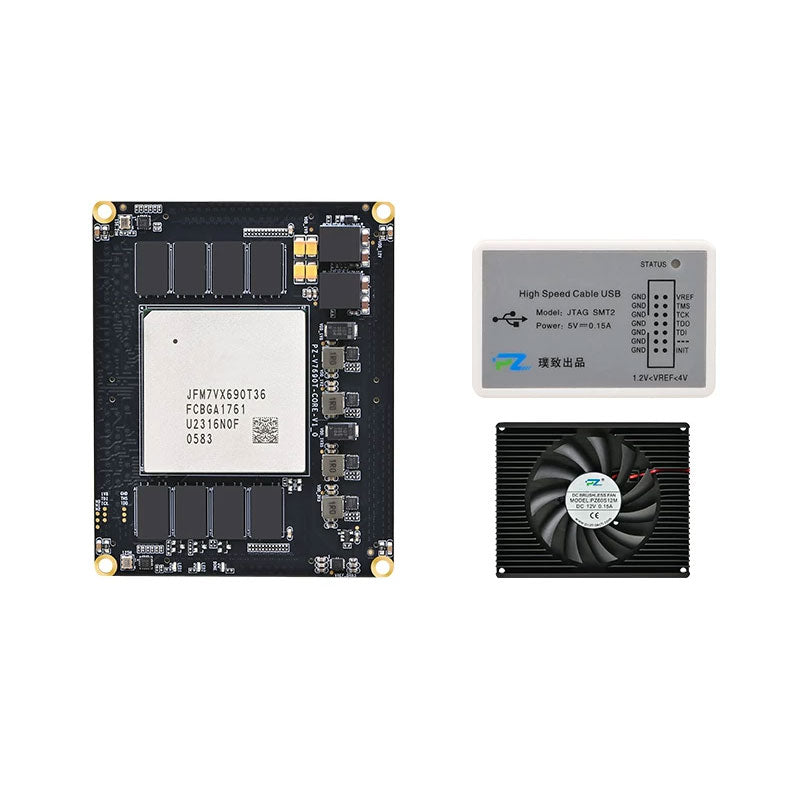

* Core Board + Heatsink + Downloader

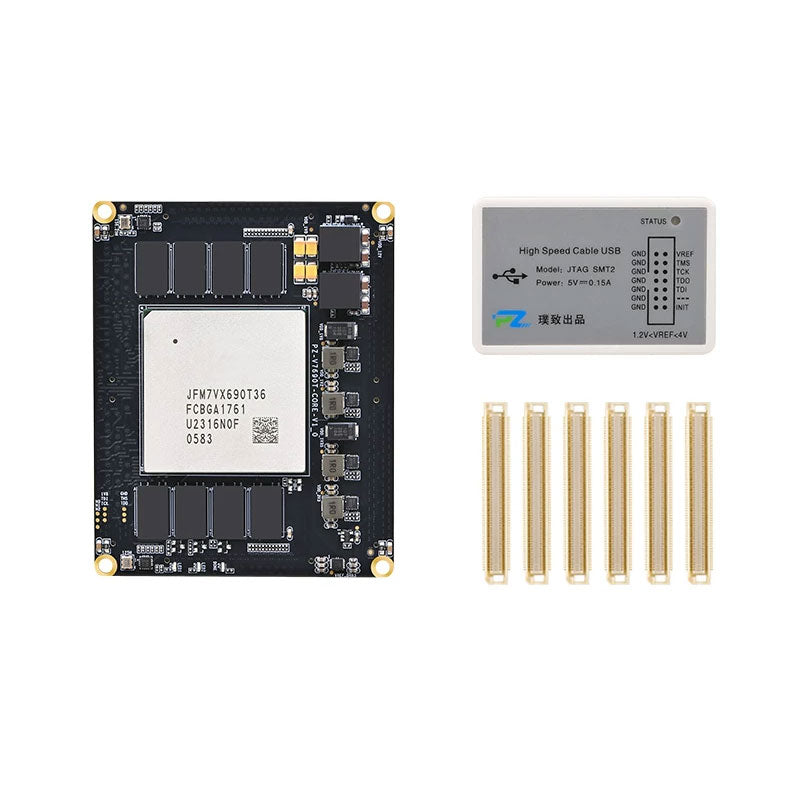

* Core Board + Connector + Downloader

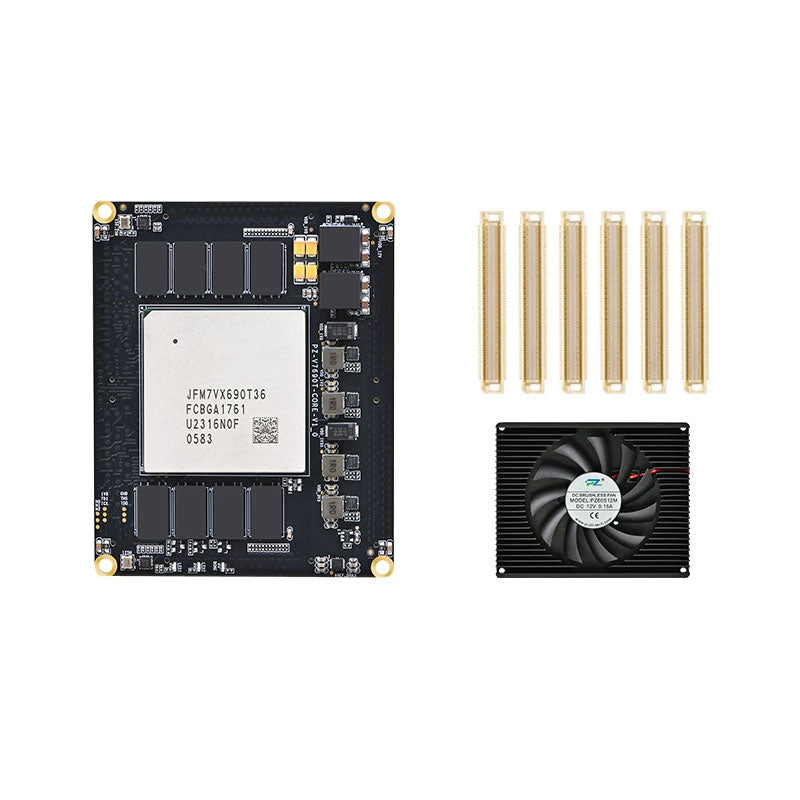

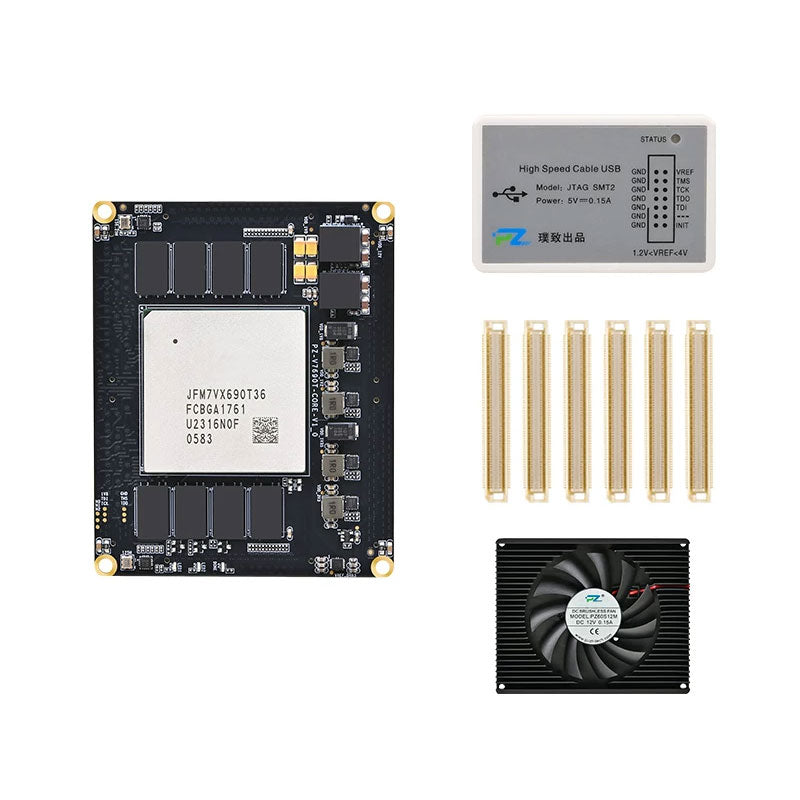

* Core Board + Heatsink + Connector + Downloader
Features:
* Fudan Micro Virtex-7 Core Board
* Dual Large-Capacity DDR3
* 693K Logic Cells and 2GB+2GB DDR3
* Up to 528 IOs
* 16G High-Speed Connector
* 36 Pairs of High-Speed GTH
* Industrial Grade and High Reliability
* Passed Multiple International Certifications: ISO 9001 Certified and RoHS Compliant
* 72-Hour Rigorous High & Low Temperature Testing
* 10+ Years Extended Service Life
Specifications:
* Module: PZ-V7690TF-SOM
* Main Controller: JFM7VX690T36
* Speed Grade: Grade 2
* Temperature Grade: Industrial Grade (-40°C to 85°C)
* Logic Cells: 693k
* Slices: 108300
* Flip-Flops: 866400
* DSP Slices: 3600
* Total BLOCK RAM: 52920
* DDR3: 2GB/64bit+2GB/64bit
* Boot Mode: JTAG/QSPI/BPI
* User LED: 2 Channels
* GTH Quantity: 36 Pairs TX/RX
* IO Quantity: 528 Single-ended / 264 Pairs Differential (1.2/1.8V Adjustable, Default 1.8V)
* Power Supply/Current: 8-12V/5A
* Crystal Oscillator: 1 Differential 200MHz Crystal Oscillator for FPGA; 1 Differential 125MHz Crystal Oscillator for GT Transceiver Reference Clock; 1 Differential 156.25MHz Crystal Oscillator for GT Transceiver Reference Clock
* Dimensions & Technology: 100x80mm, Immersion Gold Process, 0.5mm Pitch 144P Connector x 6; Top Layer Max Height 5mm, PCB Thickness 2mm, Connector Mated Height 4mm
More Information:
* Processor Architecture Type: FPGA
* Expansion Slot Type: GPIO
* Typical Application Fields: Energy & Environment, 8051 Microcontroller Learning, Embedded Hardware, Consumer Electronics, and Internet of Things
* Network Interface Configuration: Gigabit Ethernet (1 Gbps), I/O
* Compatible Expansion Module: 1 Module
* Operating System Support: None
Packing List (Varies by Package):
Core Board Only:
* 1 x Core Board
Core Board + Heatsink:
* 1 x Core Board
* 1 x Heatsink
Core Board + Connector:
* 1 x Core Board
* 6 x Baseboard Connectors
Core Board + Downloader:
* 1 x Core Board
* 1 x Downloader
Core Board + Heatsink + Connector:
* 1 x Core Board
* 1 x Heatsink
* 6 x Baseboard Connectors
Core Board + Heatsink + Downloader:
* 1 x Core Board
* 1 x Heatsink
* 1 x Downloader
Core Board + Connector + Downloader:
* 1 x Core Board
* 6 x Baseboard Connectors
* 1 x Downloader
Core Board + Heatsink + Connector + Downloader:
* 1 x Core Board
* 1 x Heatsink
* 6 x Baseboard Connectors
* 1 x Downloader
