Regular price
$536.00
Regular price
Sale price
$536.00
Why Choose P201Mini/P203Mini?
1. Ultra-Compact Industrial-Grade Design, Fits Into Your Device

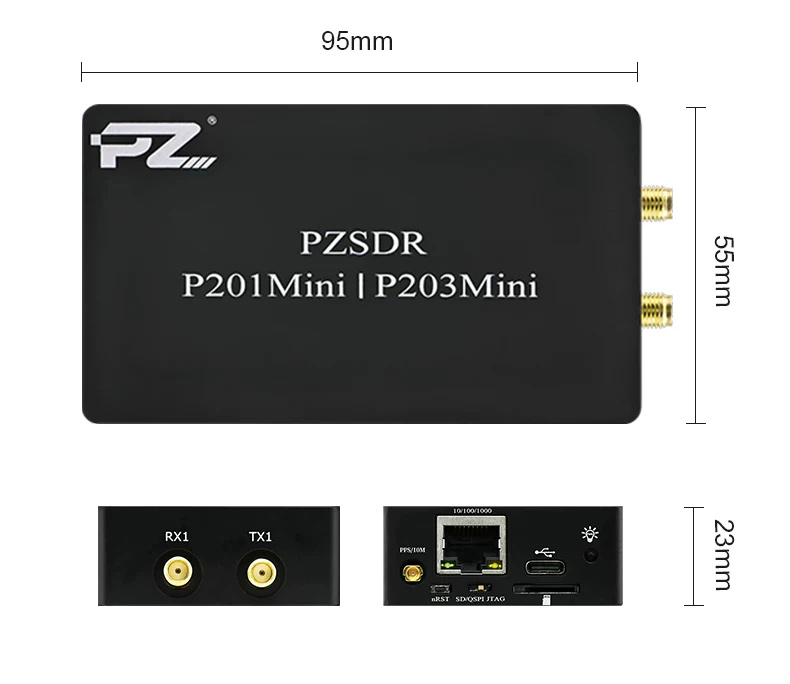

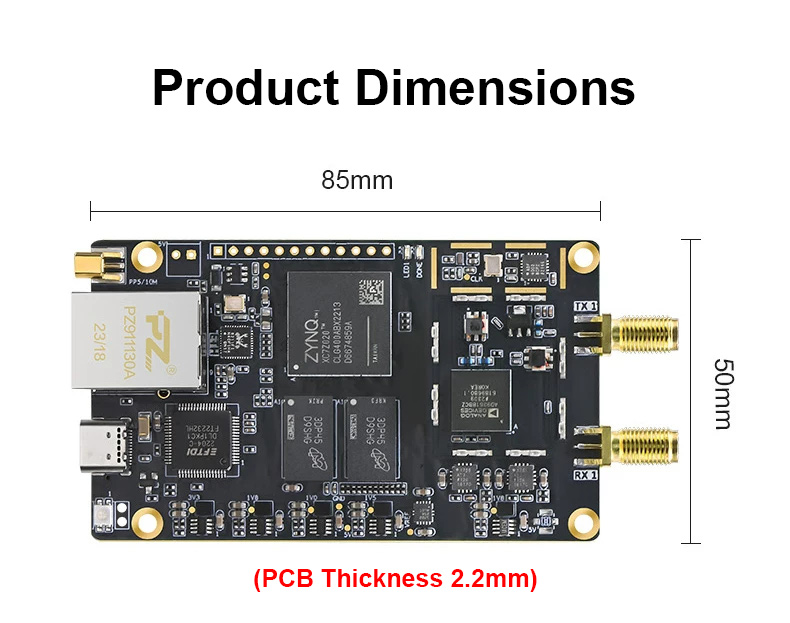

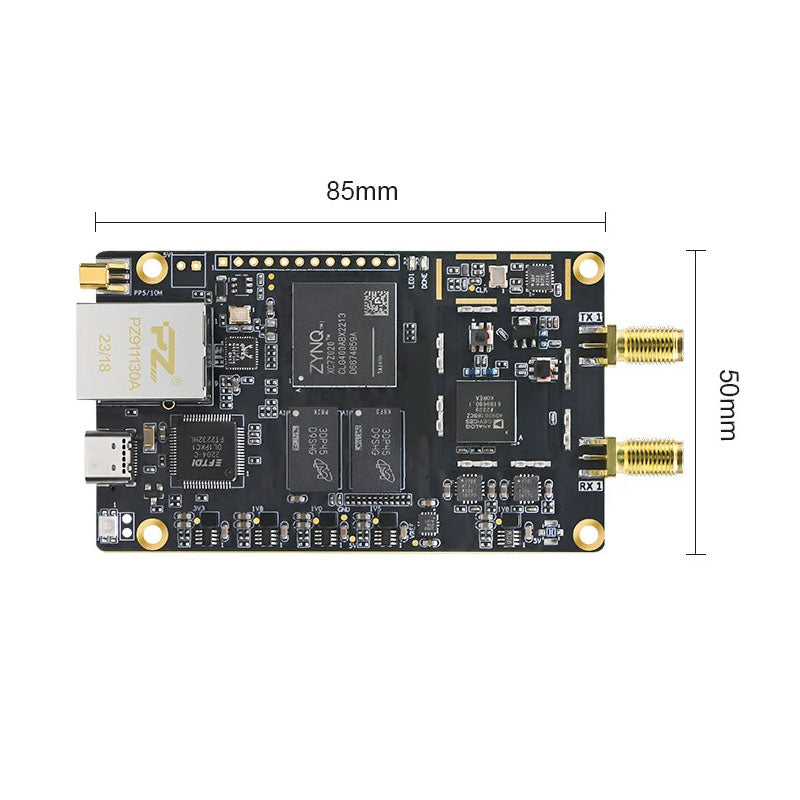

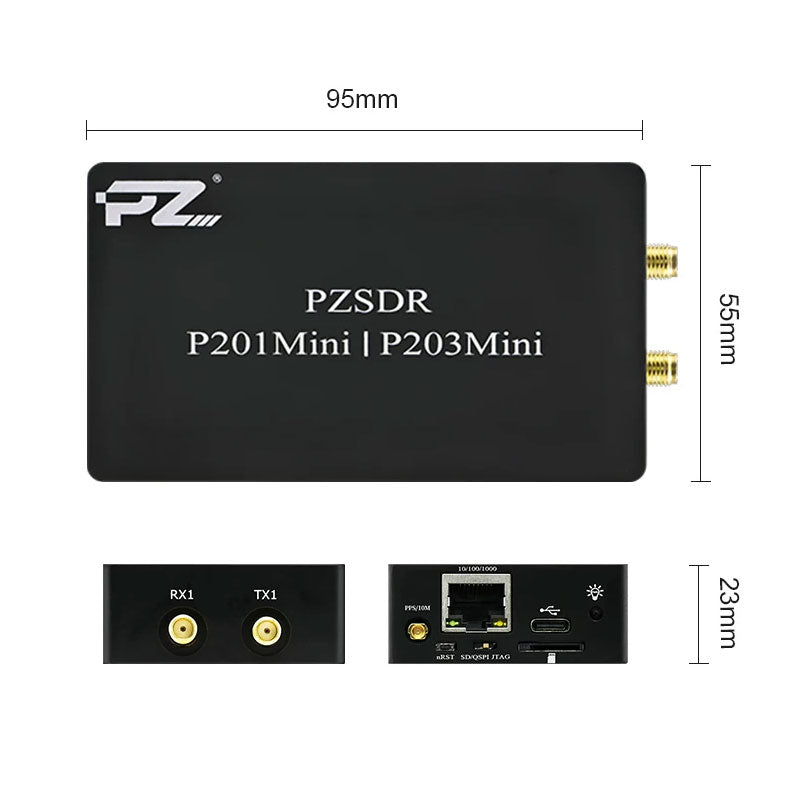

* Compact Size: PCB size is only 85 x 85mm, with a metal heat-dissipation enclosure measuring 95 x 55 x 23mm.
* Wide Operating Temperature: Supports a wide temperature range of -40°C to 85°C, using an XC7Z020 and industrial-grade DDR3 components.
* Direct Board-Level Power Supply: Equipped with an XH2.54 board-level power supply interface, allowing direct power from your device without requiring an additional power module.
* Compact and Reliable: Smaller footprint while maintaining industrial-grade reliability.
2. Ready to Use Out of the Box with One Type-C Cable

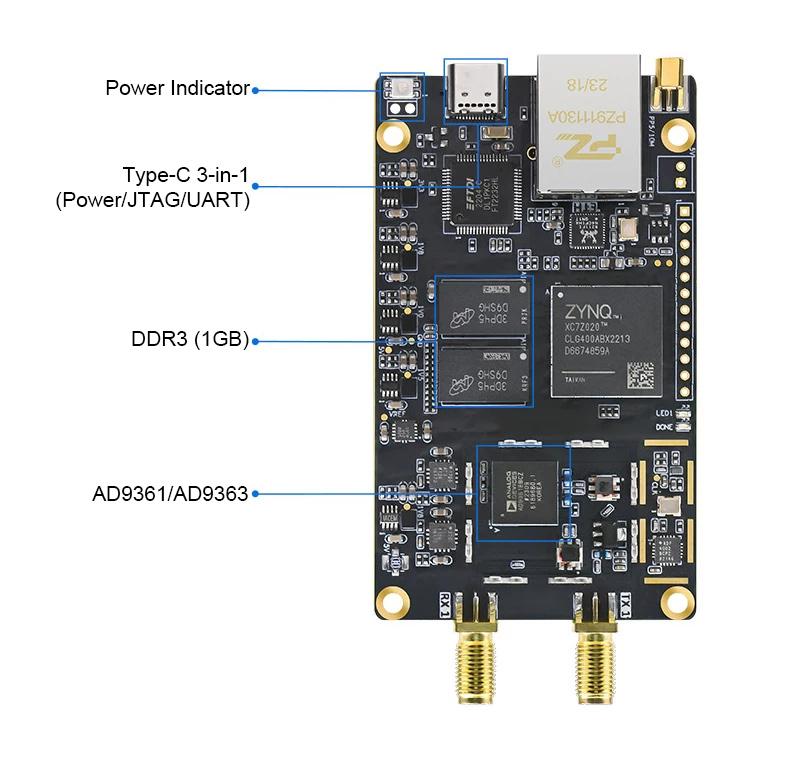

* Three Functions via One Cable: A single Type-C cable simultaneously handles power supply, JTAG downloading, and UART debugging, eliminating the need for additional emulators or serial converter boards.
* Pre-Installed Linux: Comes with Linux pre-installed and is adapted for Vivado.

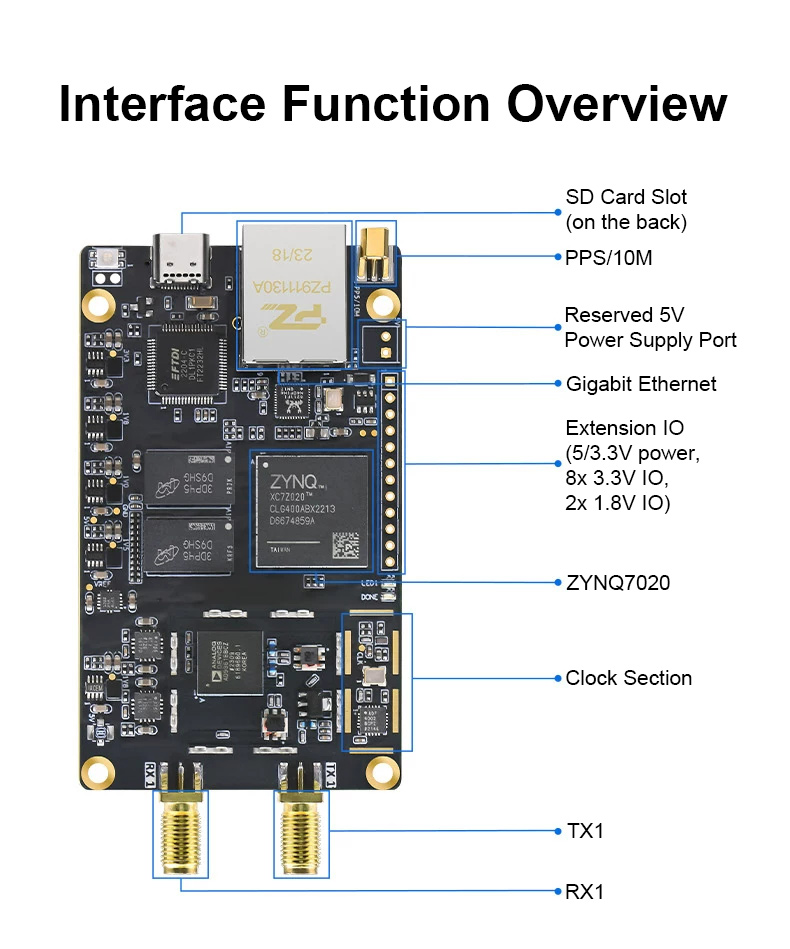

* Multiple Interfaces: Provides Gigabit Ethernet, UART, and SD interfaces.
* Ready for Testing: Power on and start testing immediately upon arrival.
* Automatic Boot Switching: Inserting an SD card automatically switches to SD boot; unplugging the SD card reverts to QSPI Flash boot.
3. Rich Development and Software Support
* Supports 10+ mainstream SDR software and development environments. It is for GNU Radio, MATLAB Simulink, OpenWifi, SDR#, SDRangel, and PYNQ.
4. Trusted by More Research Institutes
* 60+ Research Institutes: It serves more than 60 research institutes.
* Laboratory-Verified Stability: Product stability has been verified in laboratory testing.
Key Application Scenarios:
* Embedded Wireless Module Prototype Verification
* Portable and Vehicle-Mounted Spectrum Monitoring
* Drone and Unmanned Platform Payload Experiments
* 5G and Private Network Physical Layer Verification
* Distributed Multi-Node Synchronous Acquisition with External PPS/10M
* University RF Teaching and Research
* From Prototype Verification to Product Integration
* One Compact Board for the Entire Development Process
* Also Suitable For Amateur Radio, ADS-B Decoding, Weather Satellite Reception, LoRa Verification, and Other Applications
Rich Development Resources:
1. Porting & Open-Source Support
* PlutoSDR
* UHD
* AD9361 Bare-Metal (Non-OS) Project
2. Supported & Provided Software Packages
* Vivado 2019.1
* Ubuntu 18.04.4
* GNU Radio
* SDRangel
* SDR#
* MATLAB Simulink
* Gqrx SDR
* PYNQ

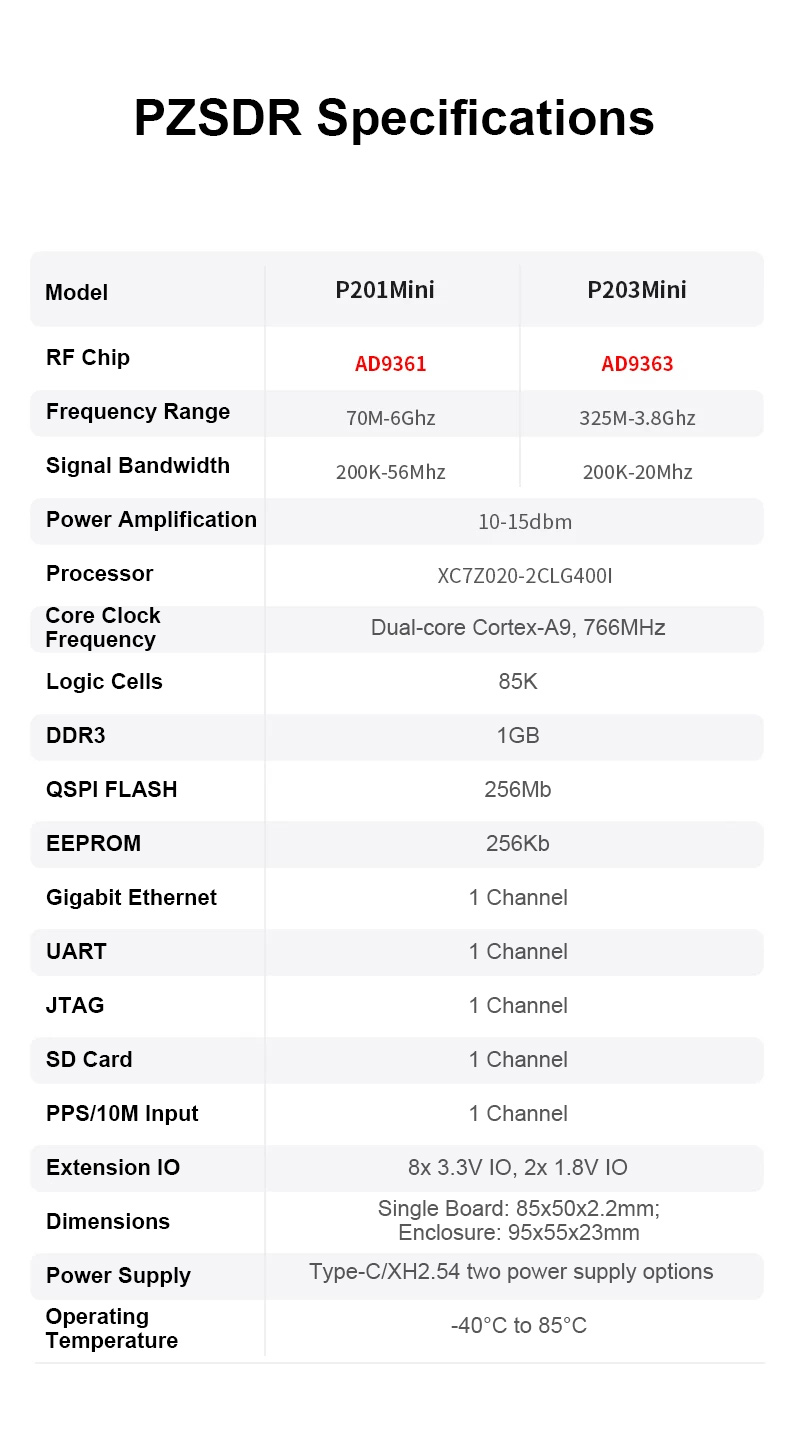

More Information:
* Industry Certification: RoHS
* Processor Architecture: For ARM + FPGA and FPGA
* Expansion Slots: MicroSD and GPIO
* Operating System Support: Linux
* Typical Applications: General Industry, Embedded Hardware, and Industrial Applications
* Network Interfaces: RS485, UART, Gigabit Ethernet (1Gbps), and CAN (1Mbps)
* Operating Temperature: -40°C to 85°C
* Transmit Power: 10-15dBm
* Power Supply: Type-C/XH2.54, two power supply options
* Product Positioning: An SDR module designed to fit into your device
Packing List:
* 1 x Development Board
* 1 x Enclosure
* 1 x Type-C Cable
* 1 x Gigabit Ethernet Cable
* 2 x Dual-Band Rubber Antennas (2.4/5.8GHz)
* 2 x Spring Antennas (100M-6G)
* 1 x 32GB SD Card
* 1 x SD Card Reader
Packaging Details:
* Package Weight: 0.45kg
