PZ-VU9P-SOM PZ-VU13P-SOM Virtex UltraScale+ FPGA Core Board XCVU9P XCVU13P SOM 8GB+8GB DDR4
$12,279.00 - $14,167.00
Shipping calculated at checkout.
Regular price
$12,279.00
Regular price
Sale price
$12,279.00
Unit price
per
Couldn't load pickup availability
Availability:
Out of stock
SKU:
104530
Regular price
$12,279.00
Regular price
Sale price
$12,279.00
PZ-VU9P-SOM / Board Only

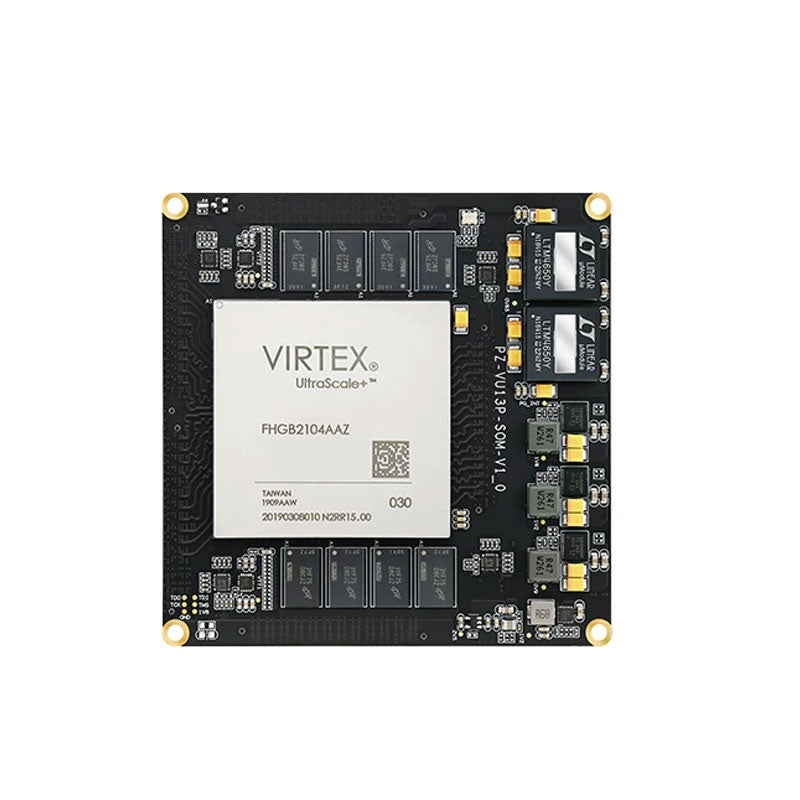

- PZ-VU9P-SOM / Board Only

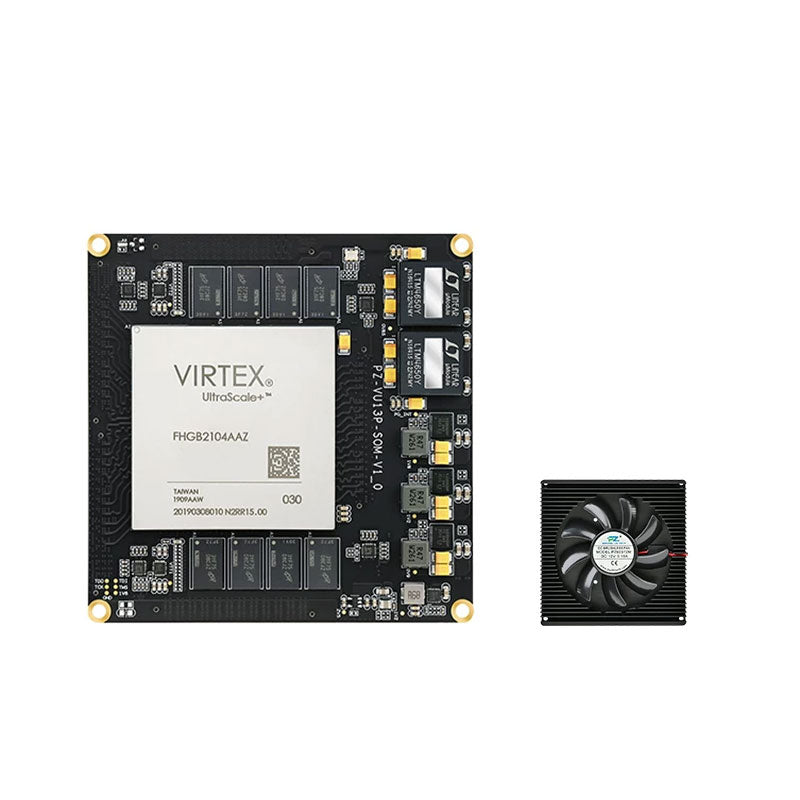

- PZ-VU9P-SOM / Board + Heatsink

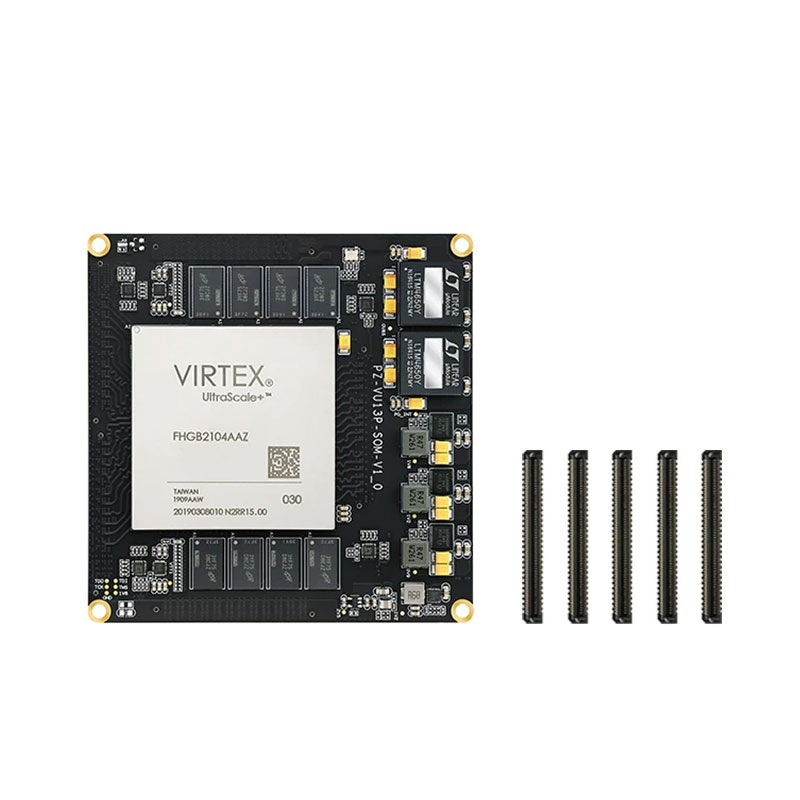

- PZ-VU9P-SOM / Board + Connector

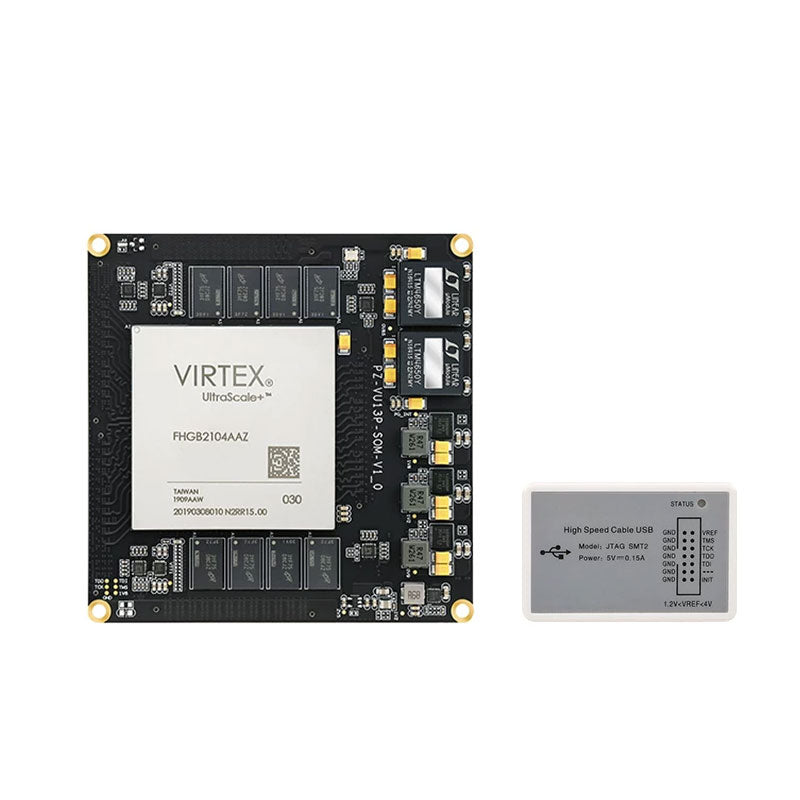

- PZ-VU9P-SOM / Board + Downloader

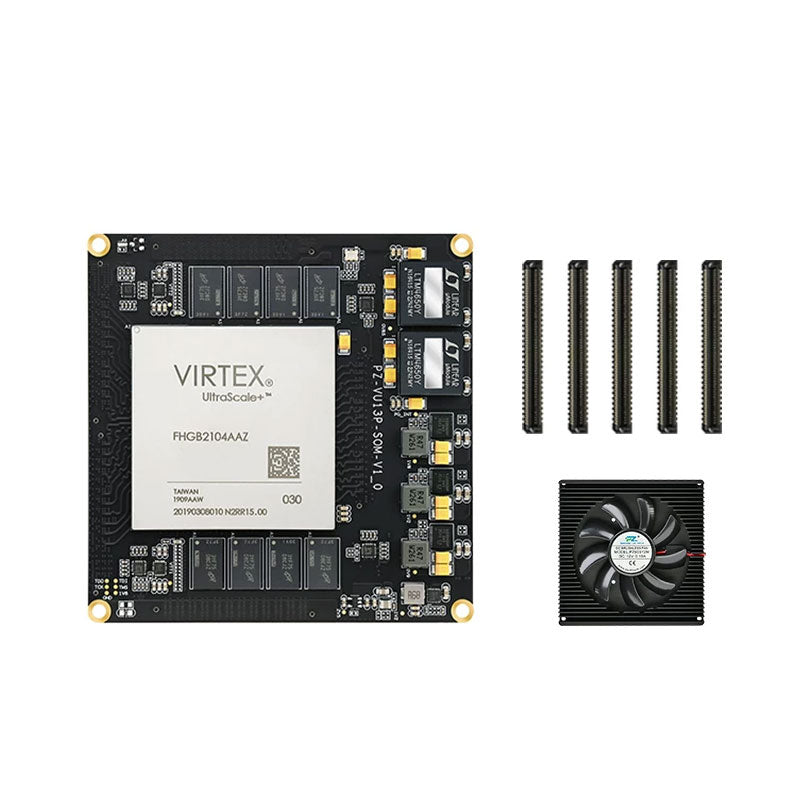

- PZ-VU9P-SOM / Board + Heatsink + Connector
- PZ-VU9P-SOM / Board + Heatsink + Downloader

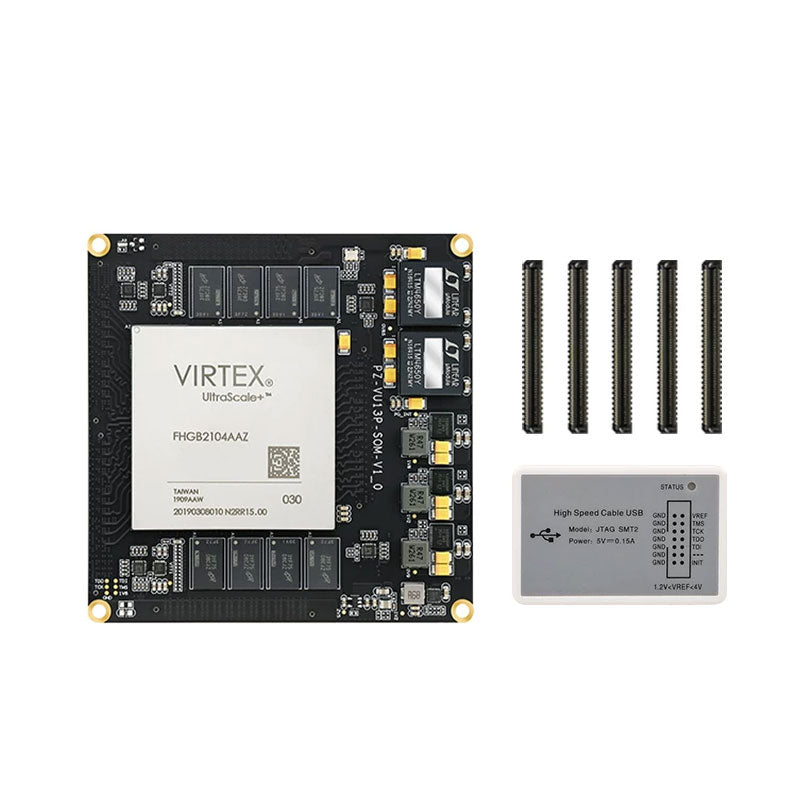

- PZ-VU9P-SOM / Board + Connector + Downloader

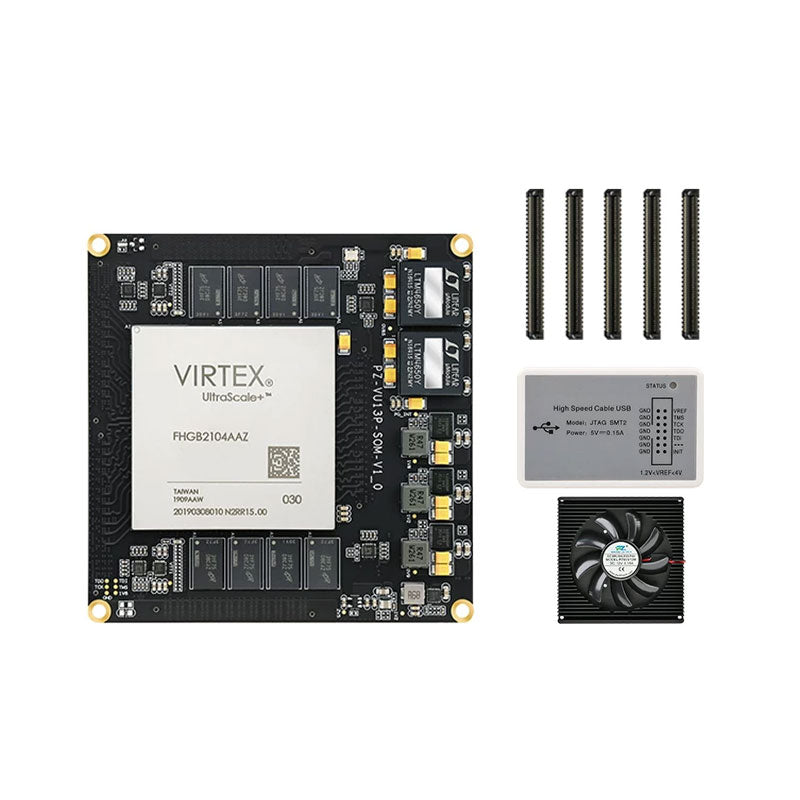

- PZ-VU9P-SOM / Complete Kit
- PZ-VU13P-SOM / Board Only
- PZ-VU13P-SOM / Board + Heatsink
- PZ-VU13P-SOM / Board + Connector
- PZ-VU13P-SOM / Board + Downloader
- PZ-VU13P-SOM / Board + Heatsink + Connector
- PZ-VU13P-SOM / Board + Heatsink + Downloader
- PZ-VU13P-SOM / Board + Connector + Downloader
- PZ-VU13P-SOM / Complete Kit
Available Models:
* PZ-VU9P-SOM: 2586K Logic Cells, 8GB+8GB DDR4
* PZ-VU13P-SOM: 3780K Logic Cells, 8GB+8GB DDR4
Optional Configurations:
* Board Only
* Board + Heatsink
* Board + Connector
* Board + Downloader
* Board + Heatsink + Connector
* Board + Heatsink + Downloader
* Board + Connector + Downloader
* Complete Kit (Board + Heatsink + Connector + Downloader)
Features:
* VIRTEX UltraScale+ core board
* Multi-platform compatibility
* Dual-channel high-capacity DDR4
* Up to 360 I/O pins
* 76 pairs of high-speed GTY transceivers
* Industrial-grade high reliability
* International Quality Certifications: Passed multiple international standard certifications, including ISO9001 Quality Management System Certification and RoHS Environmental Compliance Certification, ensuring reliable quality control and compliance with global market requirements.
* Rigorous Reliability Testing & Long Life-cycle: Underwent 72-hour high and low temperature testing to verify stable performance under extreme conditions. Designed with a 10+ year life-cycle for long-term reliability and industrial applications.
* Processor Architecture Type: FPGA
* Expansion Slot Type: GPIO
* Typical Application Areas: Energy & environment, 51 MCU learning, embedded hardware, consumer electronics, Internet of Things (IoT)
* Network Interface Configuration: Gigabit Ethernet (1Gbps), I/O
Package Contents:
All configurations include:
* 1 x PZ-VU9P-SOM/PZ-VU13P-SOM Core Board (based on selected model)
Additional accessories are included according to the selected configuration:
* Heatsink (if selected)
* Connector (if selected)
* Downloader (if selected)
Package Weight:
* Board Only: 0.22kg
* Board + Heatsink: 0.3kg
* Board + Connector: 0.3kg
* Board + Downloader: 0.28kg
* Board + Heatsink + Connector: 0.38kg
* Board + Heatsink + Downloader: 0.36kg
* Board + Connector + Downloader: 0.36kg
* Complete Kit (Board + Heatsink + Connector + Downloader): 0.44kg
