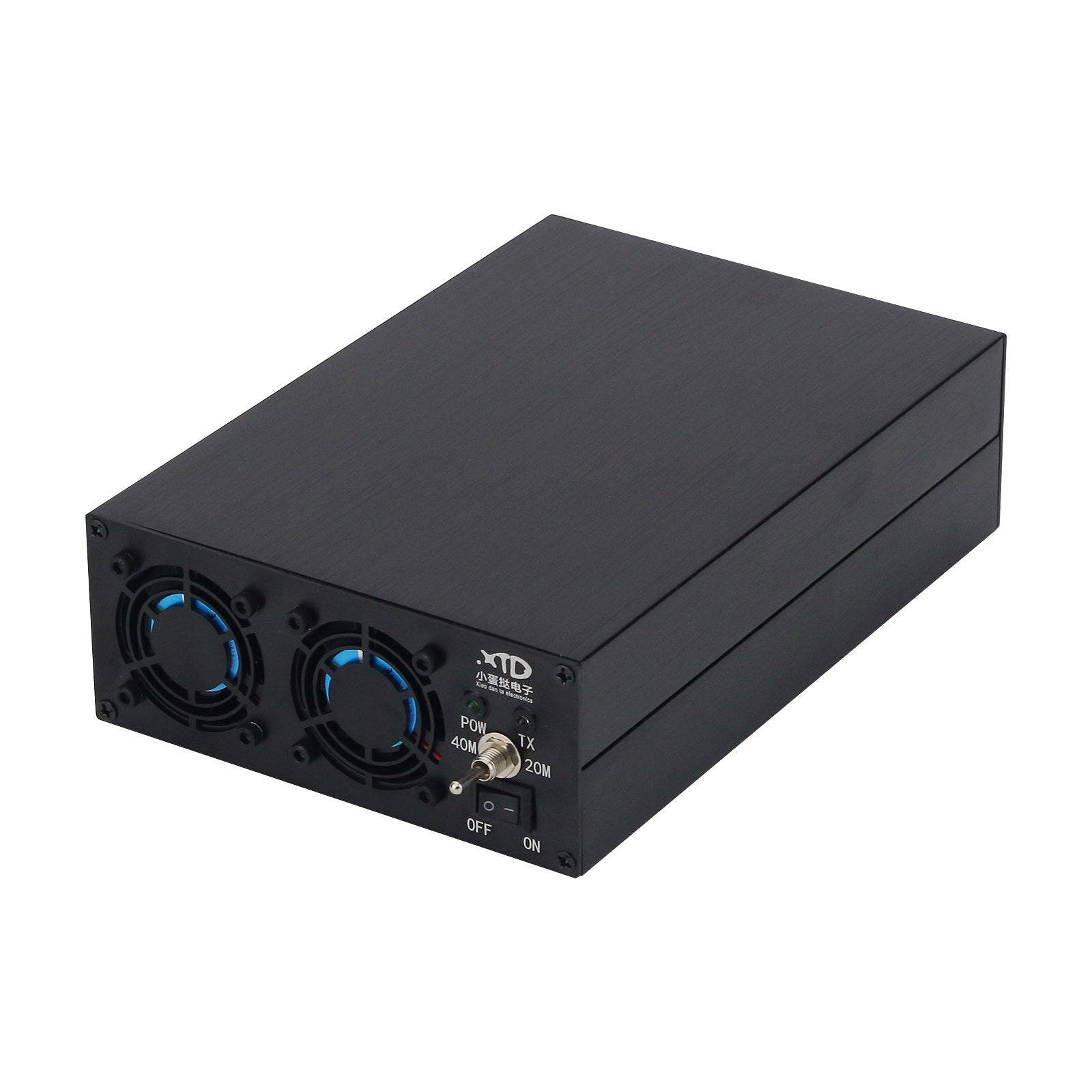

HamGeek XDT-PA100X 120W 1.8MHz-30MHz Shortwave Power Amplifier with 3 Low-pass Filters for XIEGU-X6100
Couldn't load pickup availability
Features:
- Output power is increased to 120W, the input standing wave ratio is reduced, the output harmonics are reduced, and the transmission efficiency is improved.
- Frequency range of 1.8MHz to 30MHz
- 70W nominal and 120W maximum
- Power supply 13.8v
- Input power 1W and output 30W
- Input power 5W and output 100W
- Suitable for XIEGU-X6100 transceiver
- Increased power, improved communication effect, with 3pcs 7th-order low-pass filters
Specifications:
- Frequency range: 1.8MHz ~ 30MHz
- Supported mode: A1A (CW), J3E (SSB), A3E (AM), F3E (FM), F7M (C4FM), F1B (FSK)
- Power supply voltage: DC12V ~ 16V
- Power supply current: 0.2A for standby, 15A for transmitting
- Input SWR: < 2.0
- Input/output impedance: 50ohm
- Direct loss: better than 0.5dB
- Power gain: 15dB (±2dB)
- Maximum input power: 10W
- Maximum output power: 100W at 7/14MHz, 70W at 21/28MHz
- Low-pass filter frequency: 33MHz, 18MHz, 9MHz
- Harmonic output: better than -50dB (even times), better than -30dB (odd times)
- Spurious suppression output: better than 40dB

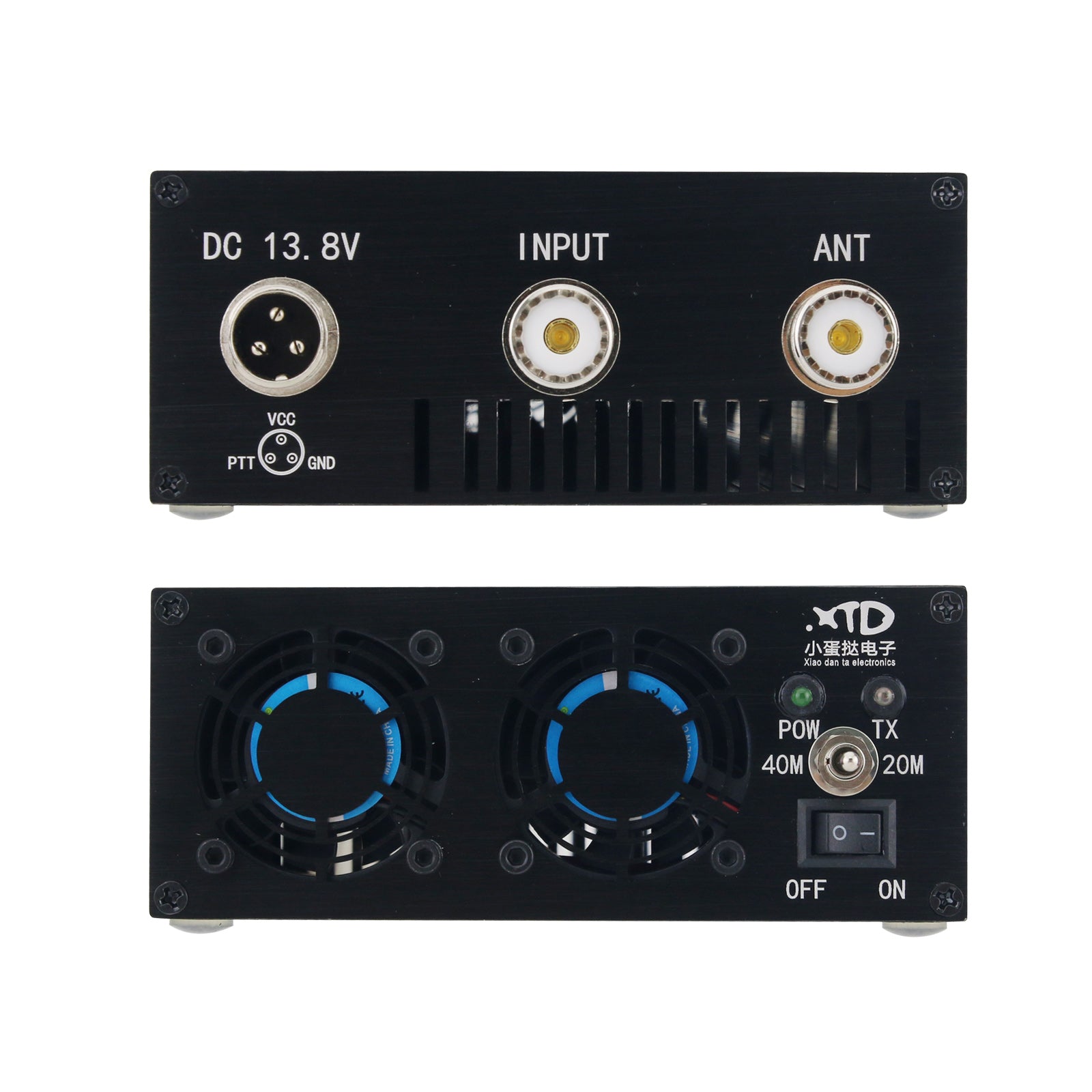

- Input/output connector: SL16I-K

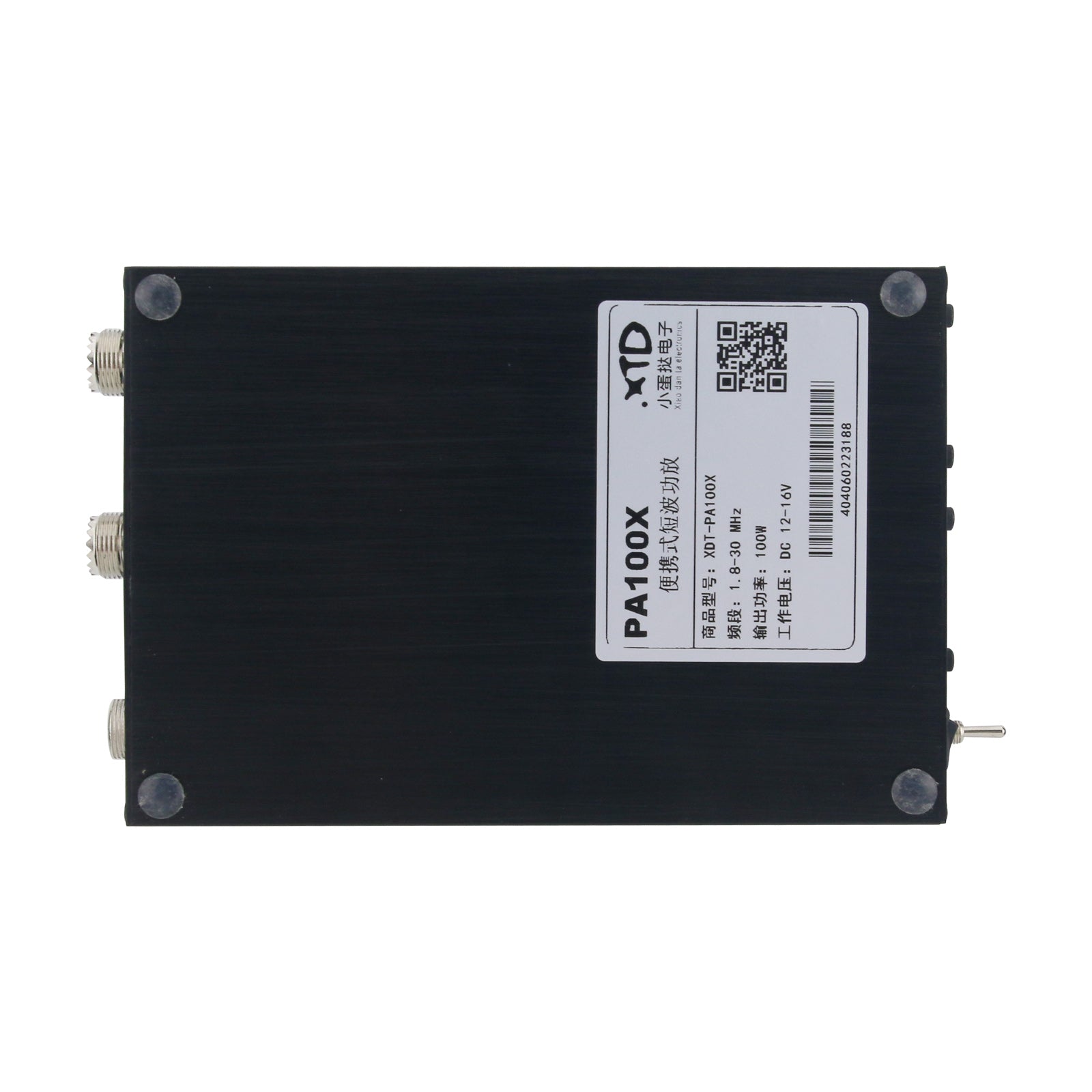

- Size: L x W x H = 200 x 120 x 50mm
- Weight: 900g
- Working temperature: 0 - 50℃
- Storage temperature: -20 - 70℃
- Storage humidity: better than 55%
- PTT trigger level: +VCC-2V (low trigger), GND+5V (high trigger)
- PTT trigger current: 2mA
- Note: do not output from open circuit, short circuit, or standing wave ratio above 2.0 !

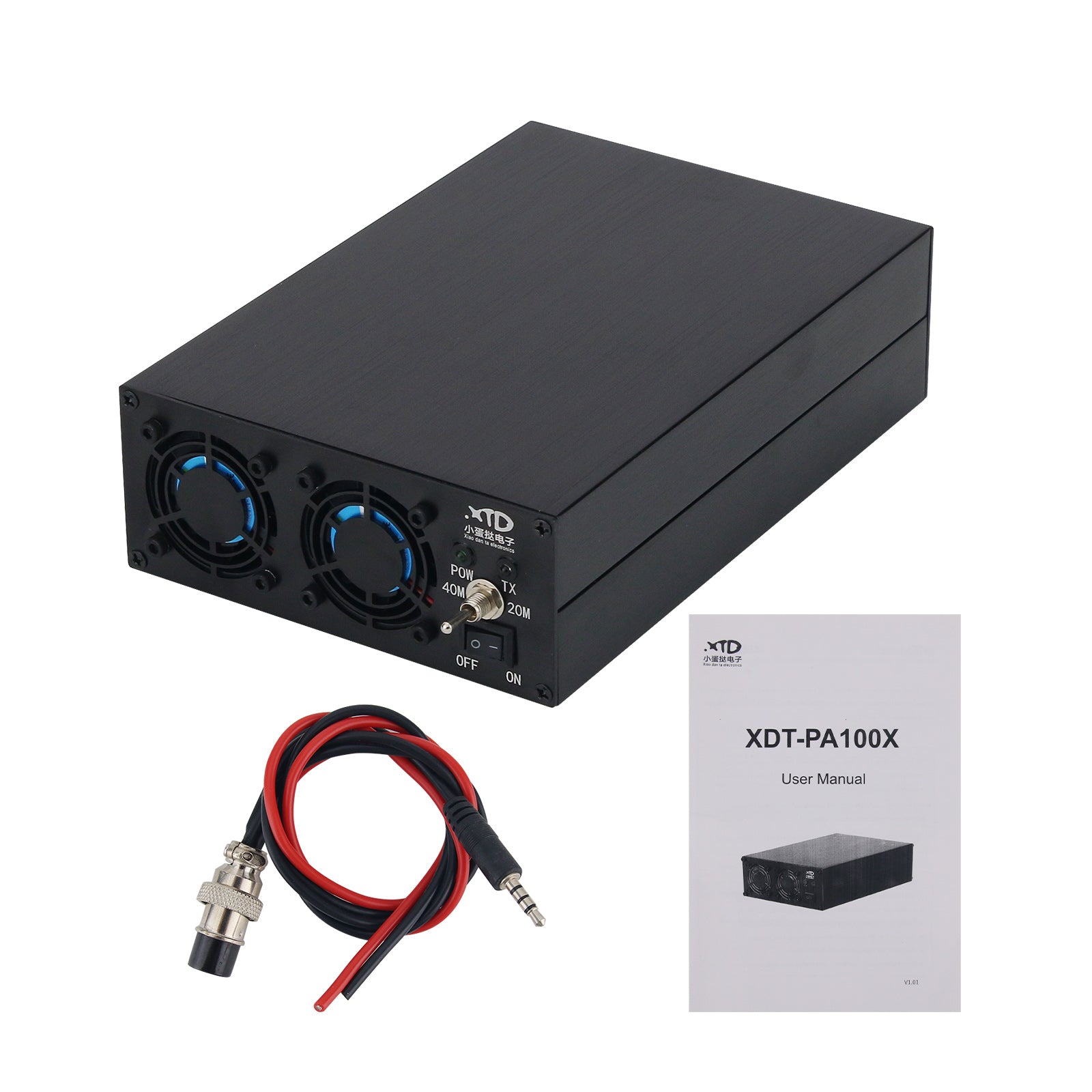

Package Included:
- 1 x HamGeek Power Amplifier
- 1 x User Manual
- 1 x Power Cord
- 1 x Sync Trigger Cable
Note:
- Please pay attention to the wiring of your transceiver and the amplifier is correct to avoid damage.
- When installing and wiring the radio amplifier, please take a photo of the connection between the radio and the amplifier and send it to customer service to confirm that there is no wrong connection. We are not responsible for the motor that is damaged due to the wrong phase line or other human factors.
