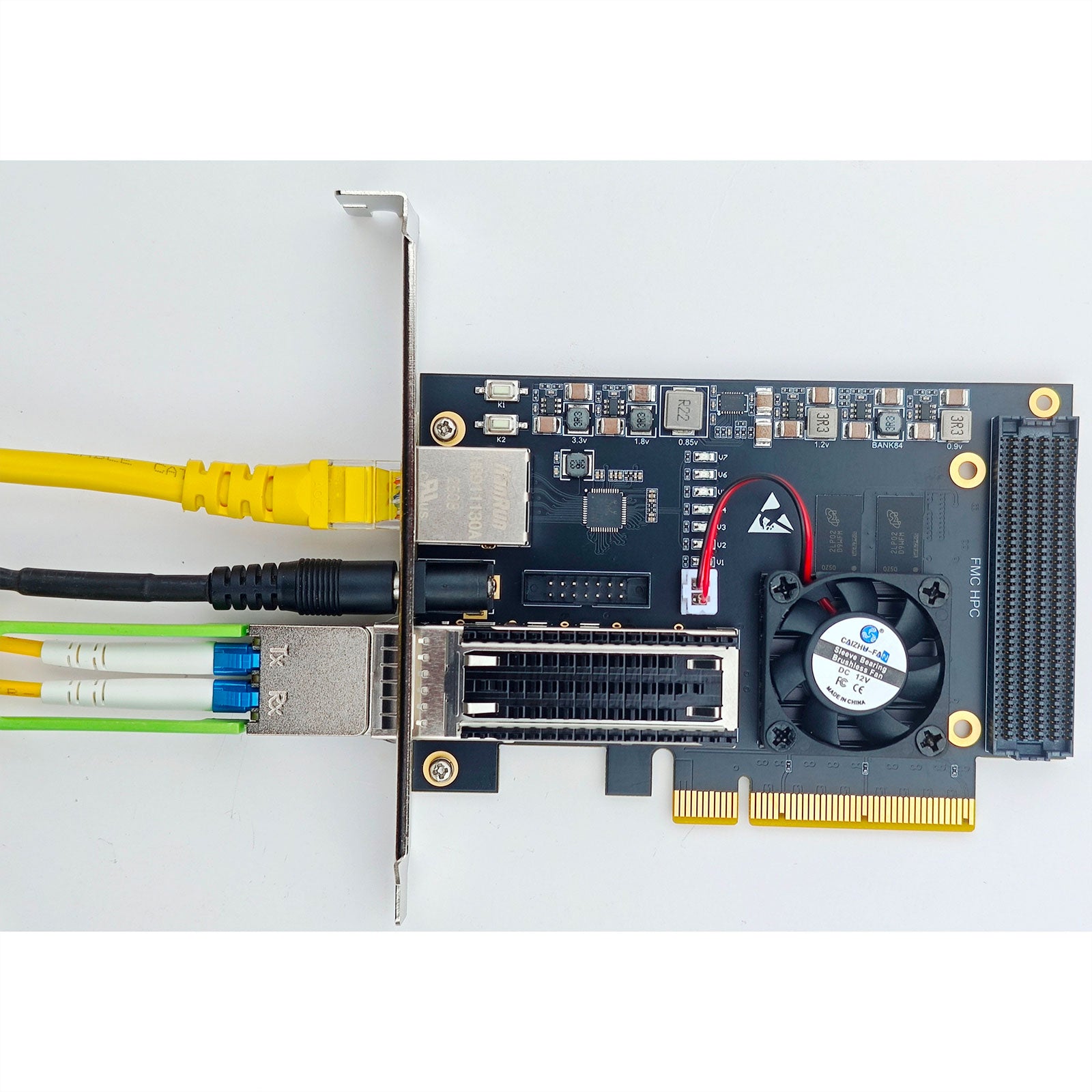

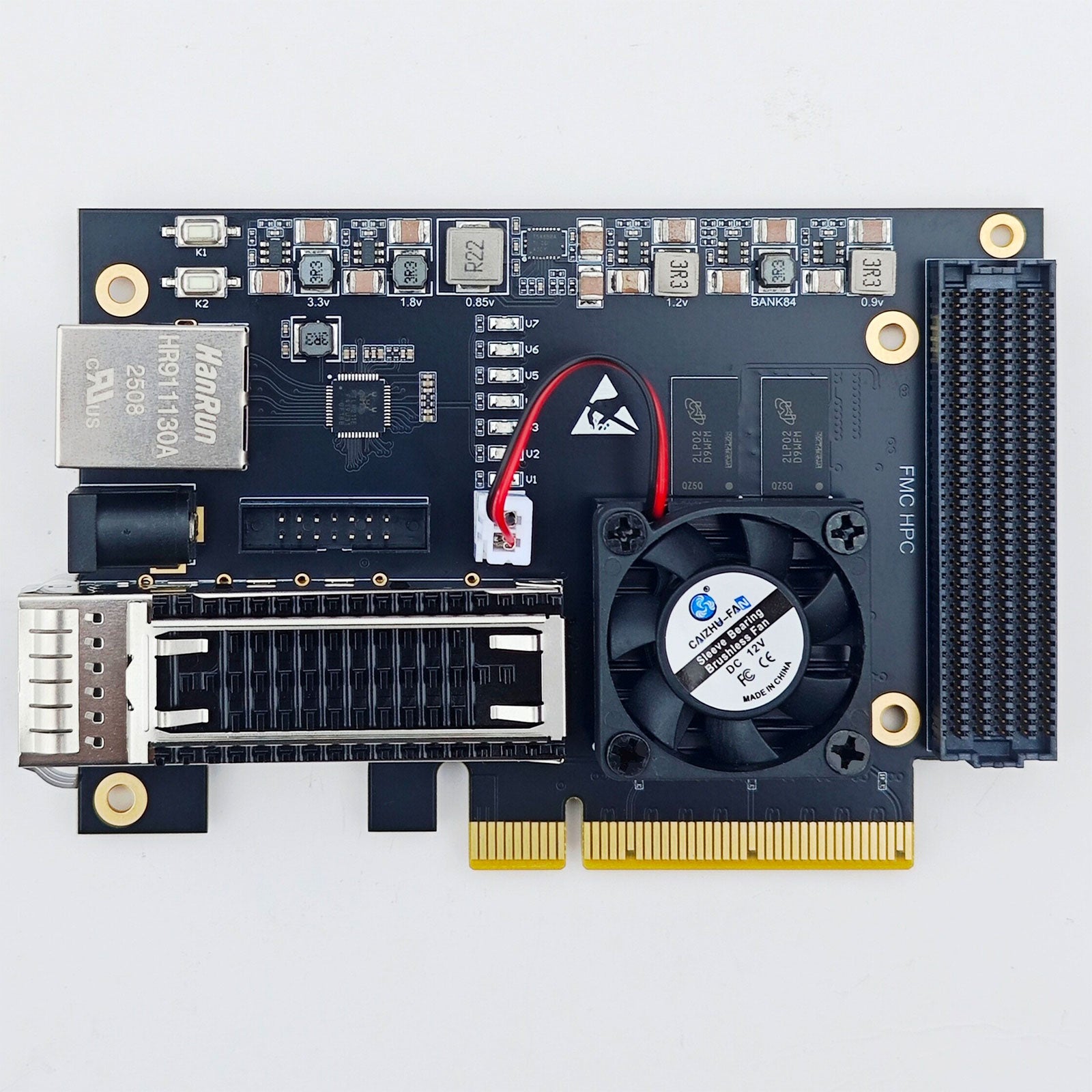

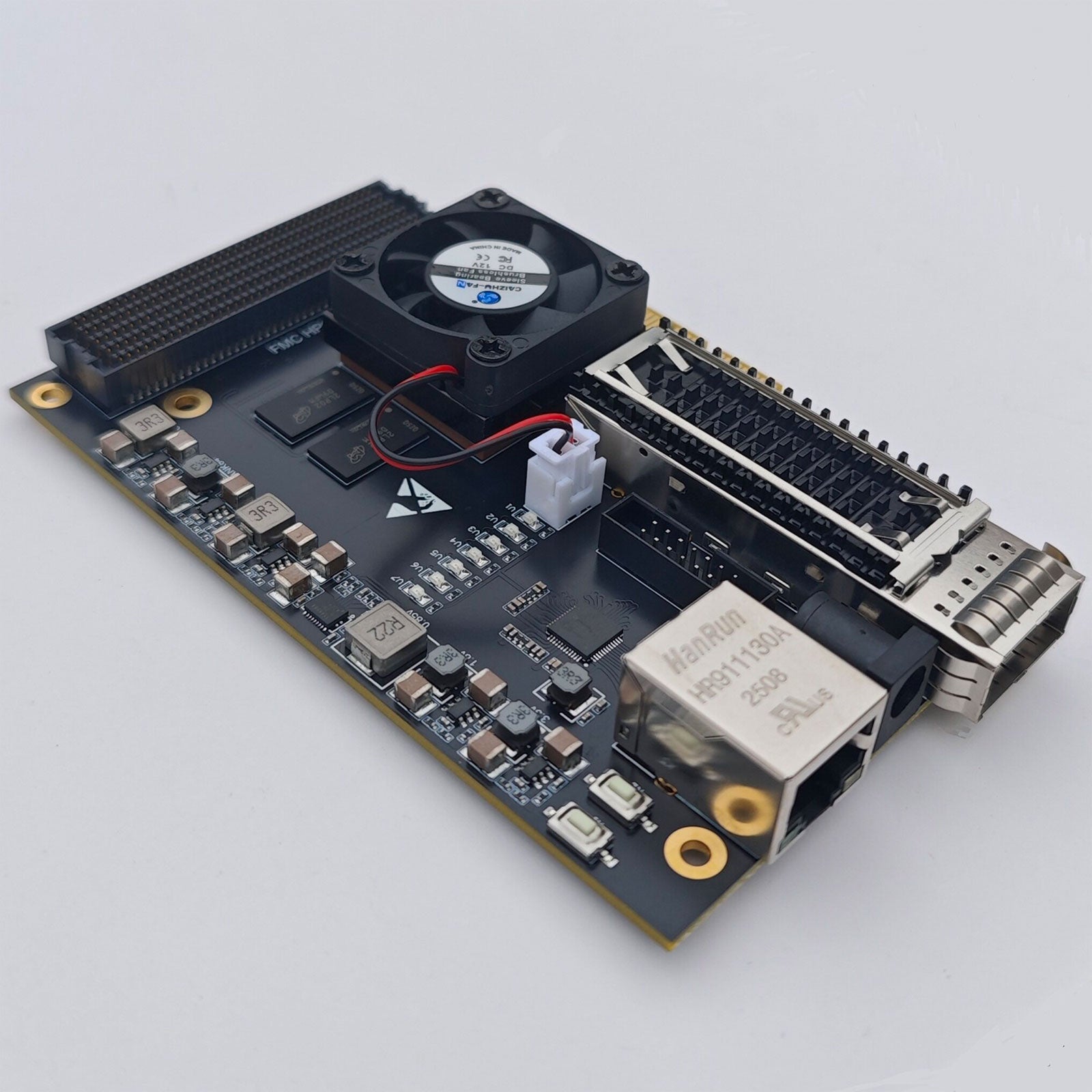

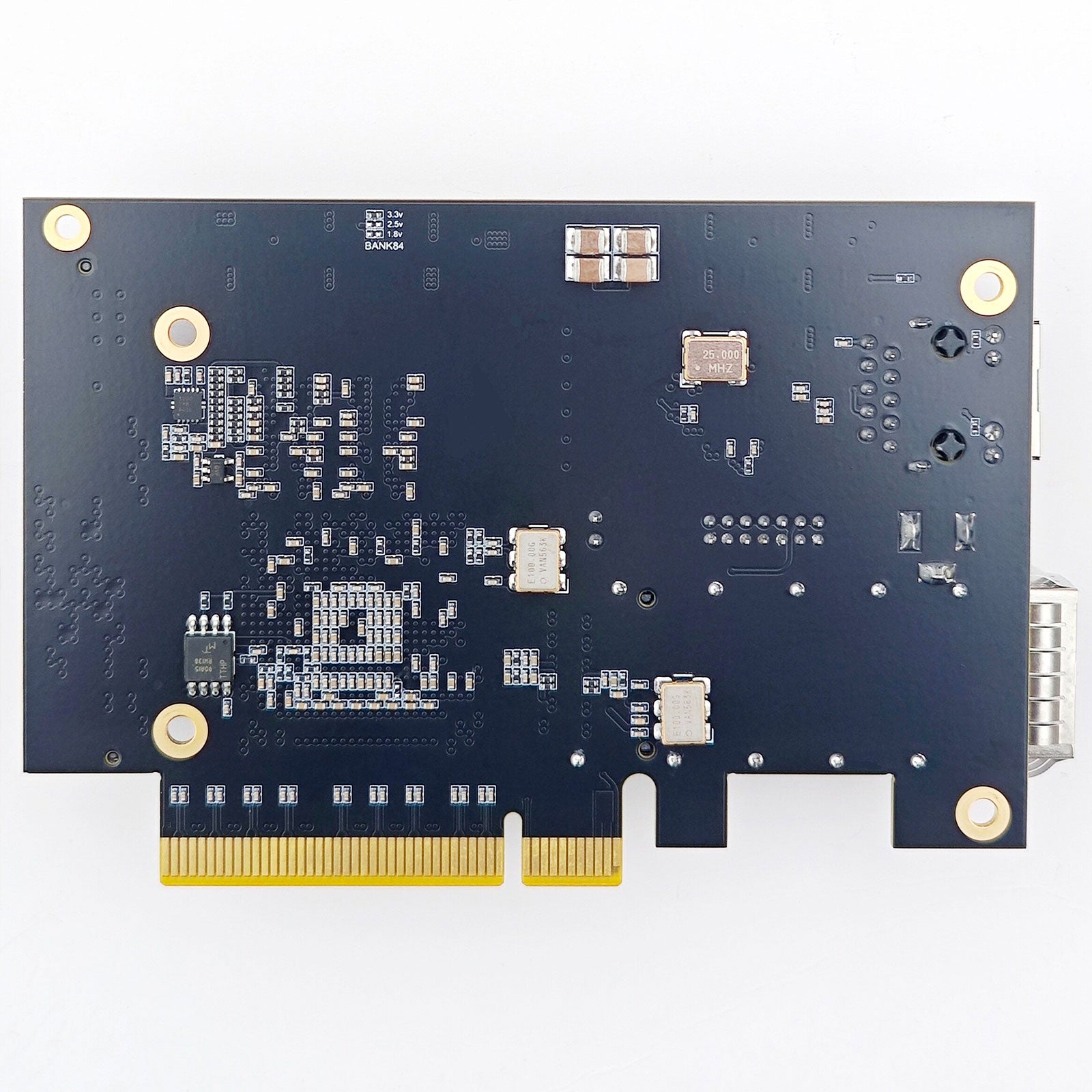

HAMGEEK XCKU5P Development Board FPGA Core Board Onboard 128Mbit FLASH FMC QSFP28 100G Optic Port PCIE3.0
Couldn't load pickup availability
Specifications:
- Onboard chip model: XCKU5P-1FFVB676
- Board size: 76.5 x 111.5mm
- Power supply method: 12V/2A, PCIE/FMC/DC5.5 socket
- PCB lamination: 10 layers
- Download method: JTAG, USB Cable
- Development environment: for vivado
Development Board Circuit:
- The complete power system only requires an external input of 12V power to operate, and the 20A core high current DCDC chip ensures stable chip operation.
- Two 5070 packaged 100MHz active differential crystal oscillators, one-channel for GT transceiver and one-channel for system logic.
- 1 power LED, 6 user LEDs for convenient program debugging and use.
- 1 reset button and 1 user button for convenient program debugging and use.
- Onboard 2pcs DDR4 chips, 32-bit bit-width, 1250MHz frequency, 40Gbps bandwidth, 16Gbit capacity.
- Onboard 128Mbit FLASH.
- Onboard gigabit Ethernet port, 10M/100M/1000M adaptive.
- Onboard PCIE Gen3.0 interface, supporting X1, X2, X4, X8 modes, with a maximum bandwidth of approximately 6000MB/S.
- Onboard 1-channel QSFP28 fiber optic interface, supporting a maximum speed of 100Gbps (4x25Gbps).
- 1-channel FMC HPC interface (non full function HPC, leading out 4-channel GT transceiver, 27 pairs of LVDS).
Development Board External Interface:
- DC5.5 power socket
- Anti reverse insertion 14P/2.0mm standard JATG socket
- Gigabit Ethernet port
- PCIE Gen3.0 x8 interface
- QSFP28 fiber optic interface
- FMC HPC interface:
VCC 12v, VCC 3.3v, GND
GT bank RX/TX 4-channel
HD bank IO x 24 (IO voltage can be hardware modified, can be single ended IO or LVDS differential)
HP bank IO x 30 (IO voltage 1.8v cannot be modified, can be used as single ended IO or LVDS differential)
Package Included:
- 1 x HAMGEEK Development Board
- 1 x 12V/2A Power Adapter
