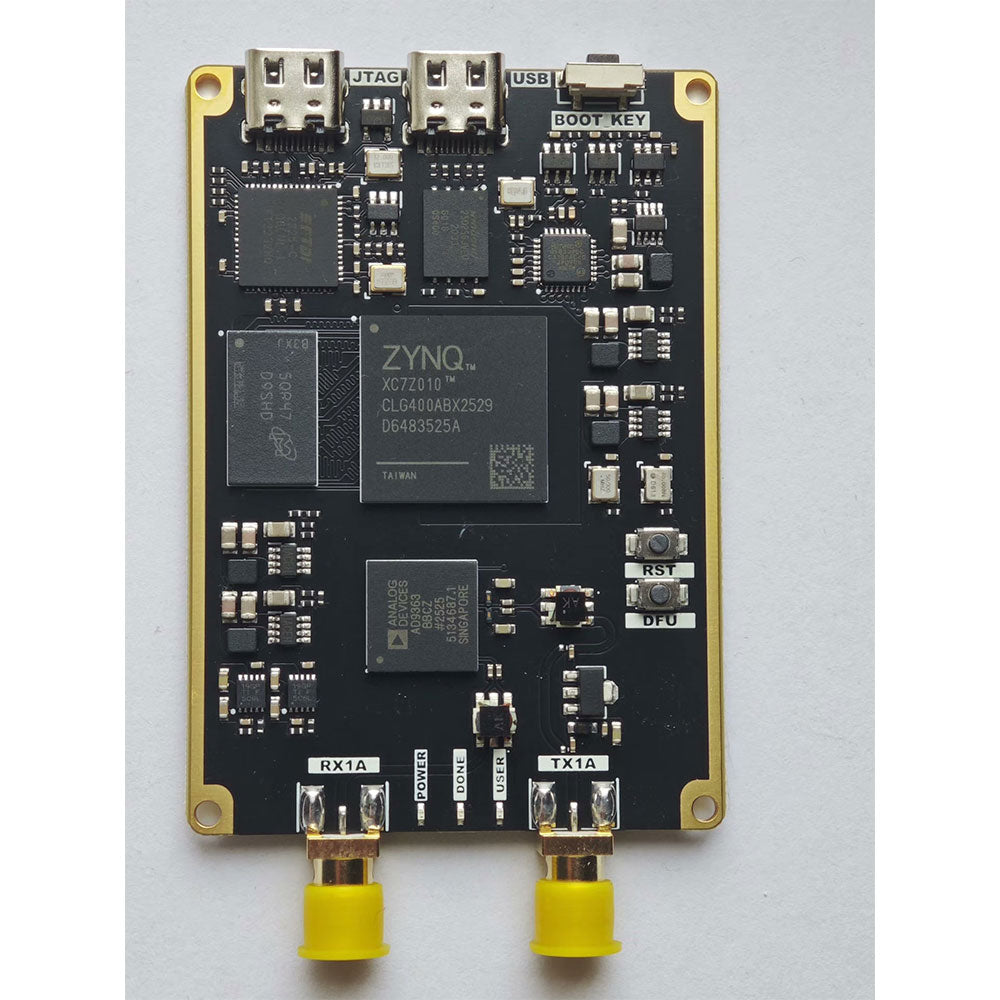

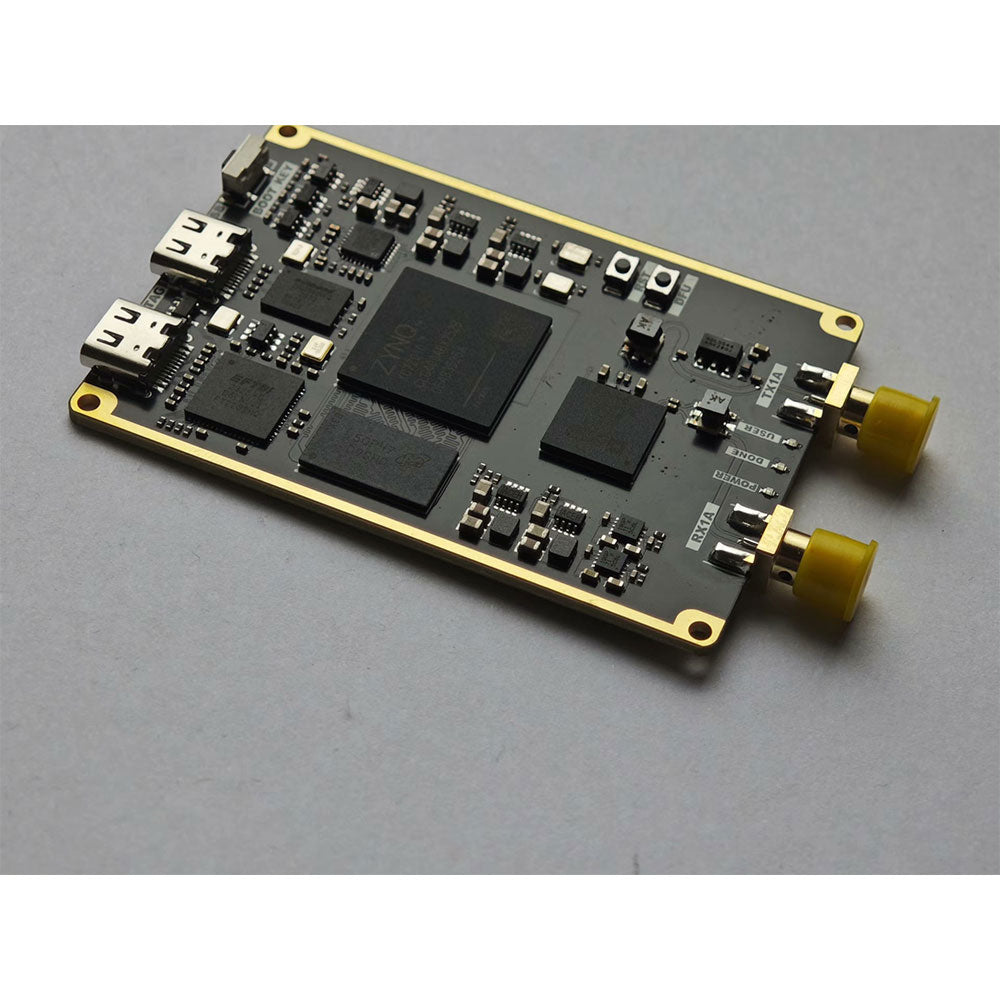

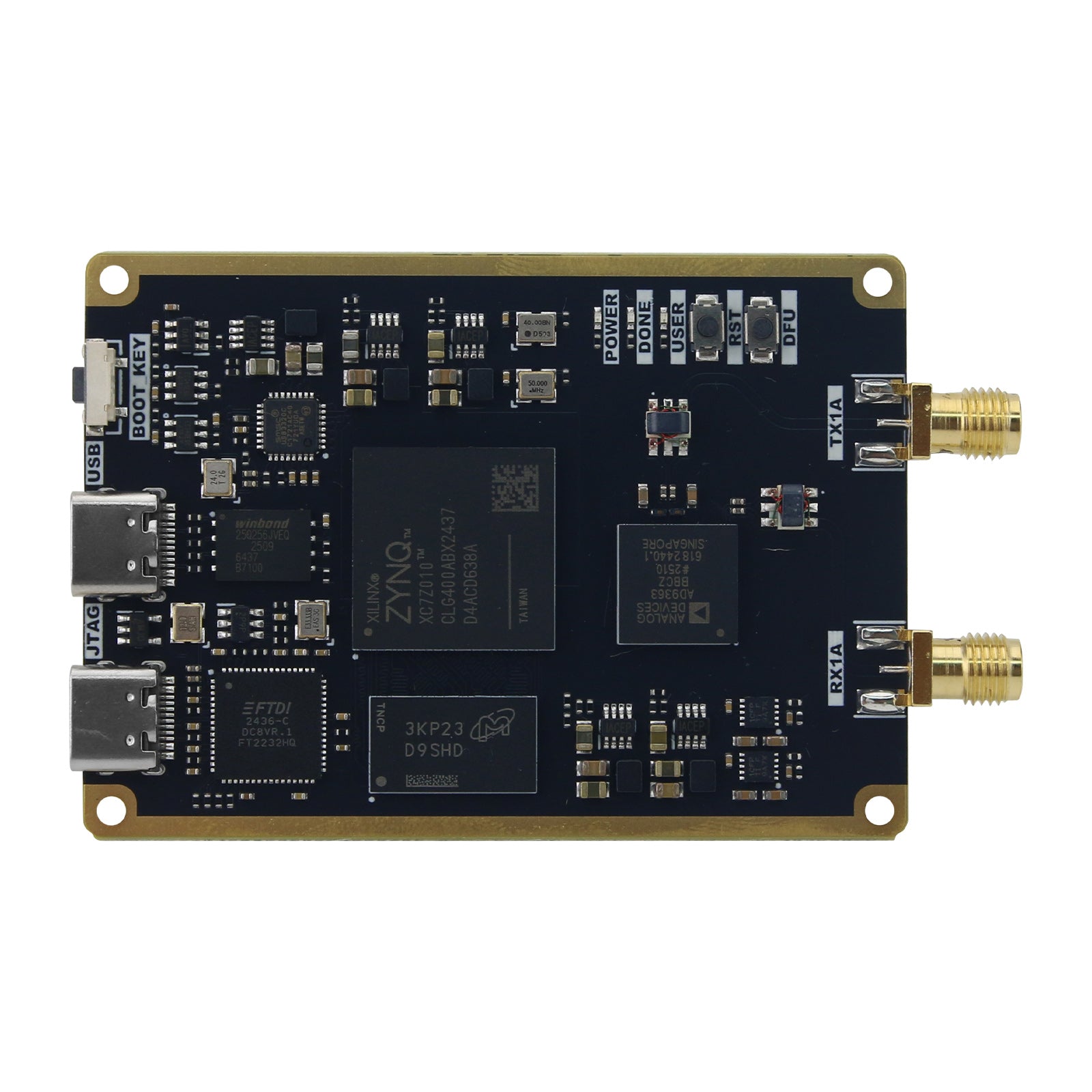

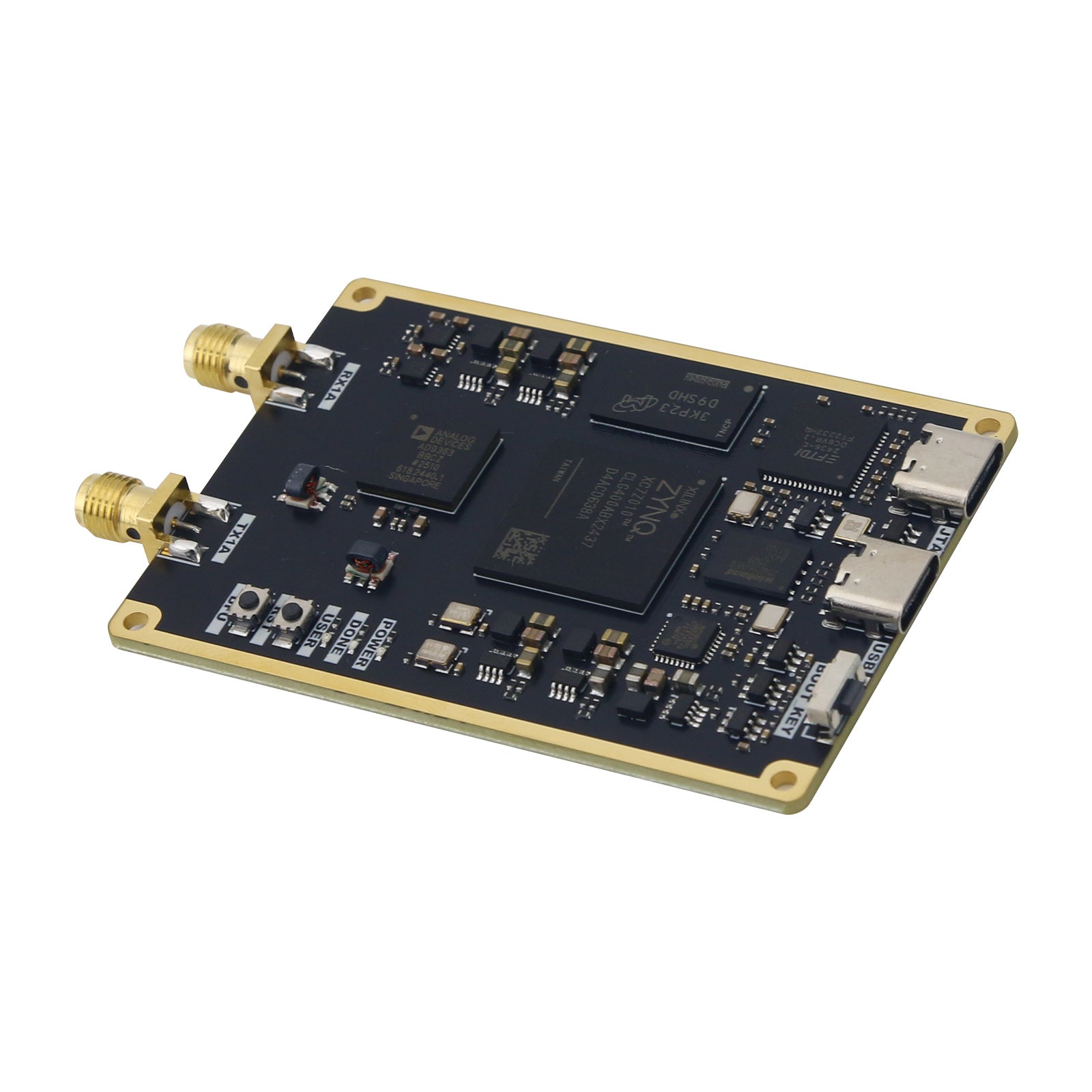

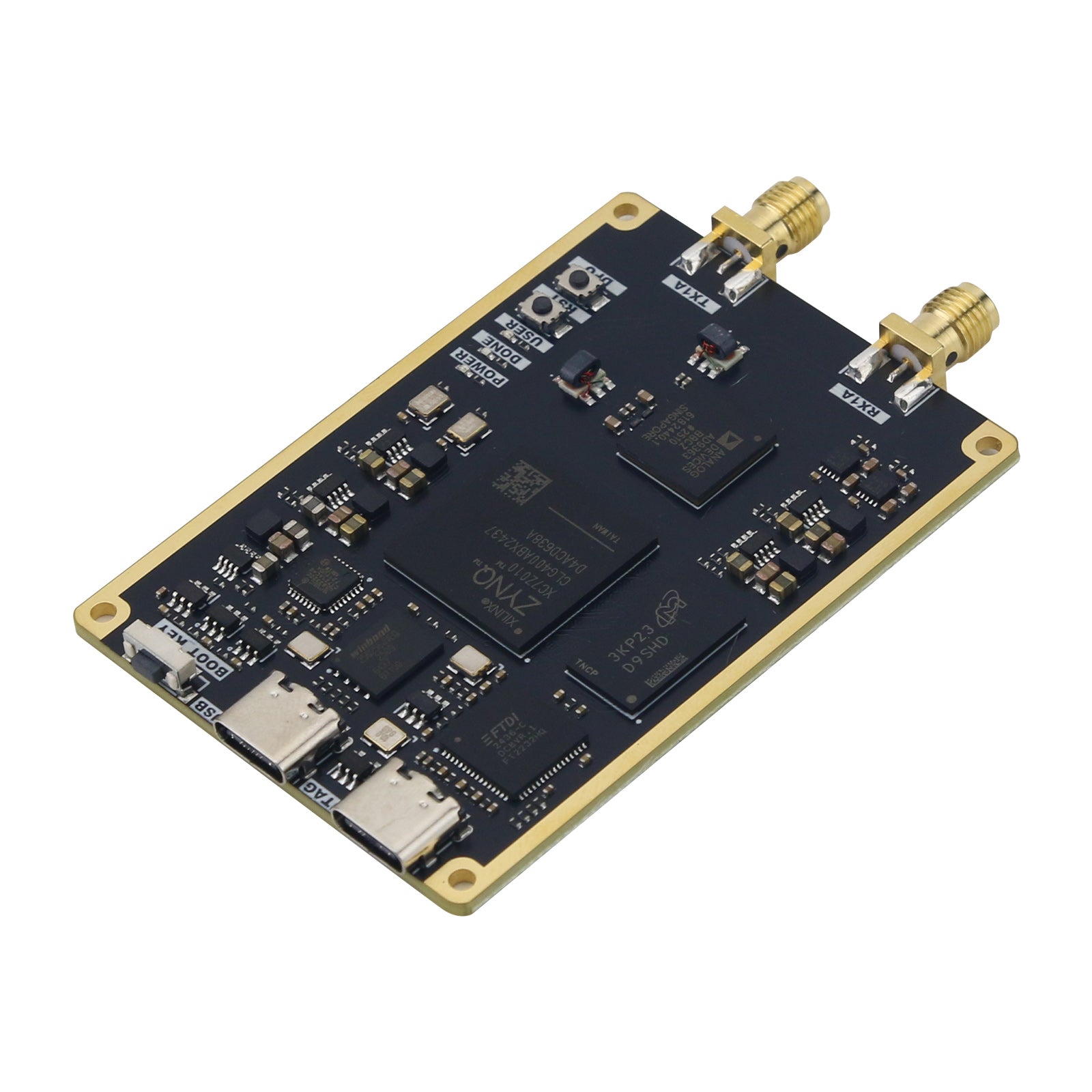

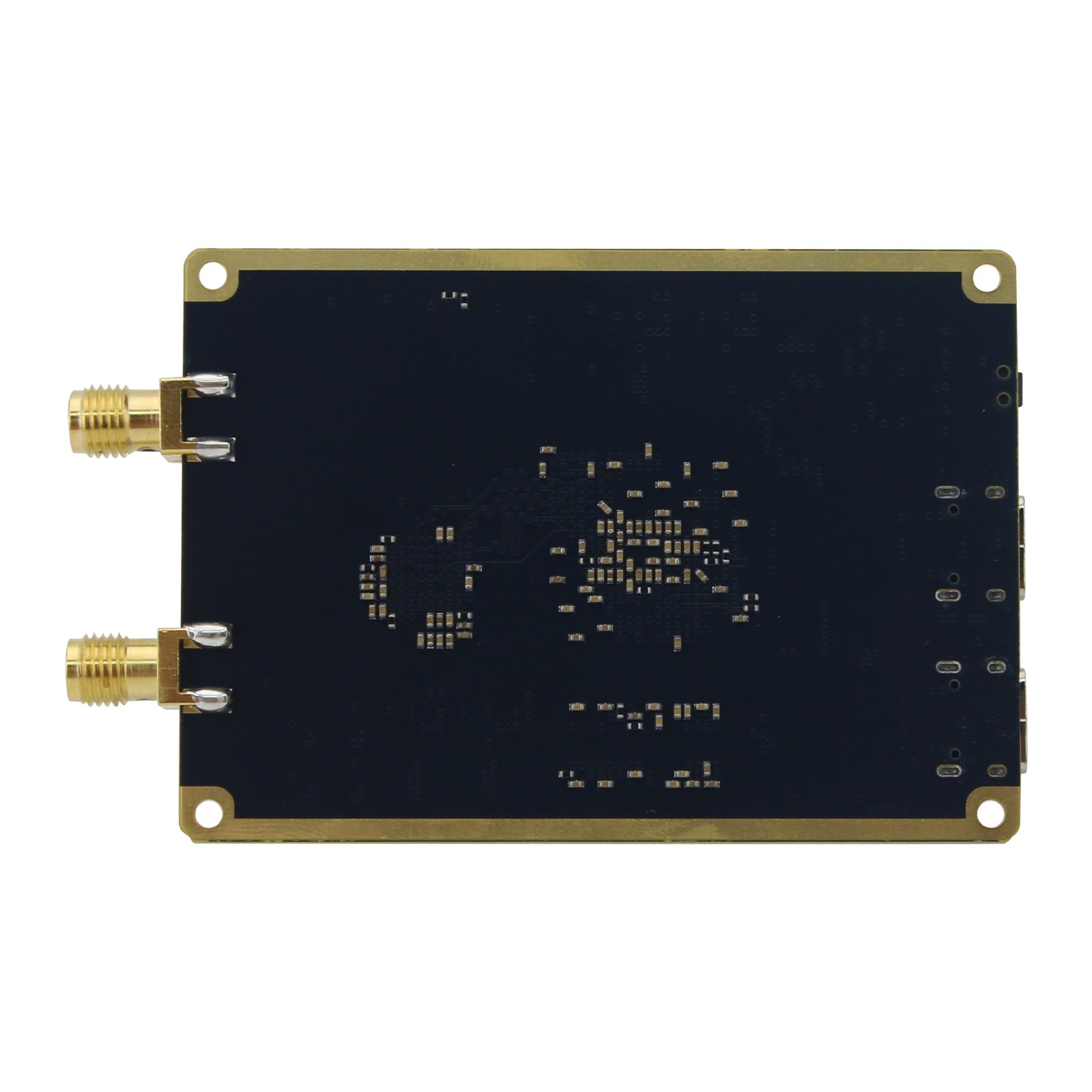

HamGeek 7010-SDR AD9363 1TX and 1RX Version Development Board Support for FLASH and JTAG Boot Modes
Couldn't load pickup availability
Without Shell
Description:
- On board downloader, users can perform bare metal program debugging, firmware programming, etc. through the JTAG port.
- The board supports for FLASH boot mode and JTAG boot mode. When powered on, it defaults to FLASH boot mode and enters JTAG boot mode after pressing the BOOT-KEY button.
- Equipped with DFU button, USB 2.0 interface, 0.5ppm TCXO, 1T1R interface.
- Both USBs can provide power to the board.
- The board comes pre-installed with firmware for V0.38 version Pluto, which can be used immediately upon receipt.
- For Pluto functionality is fully compatible with official software. Added an onboard debugger to make debugging bare metal programs more convenient.
The main difference from the official ADAM PLUTO is:
- Removing the ADM1177 power detection chip.
- Add FT2232 JTAG + serial port 2-in-1 chip.
- Replacing the main control chip model with XC7Z010-CLG400.

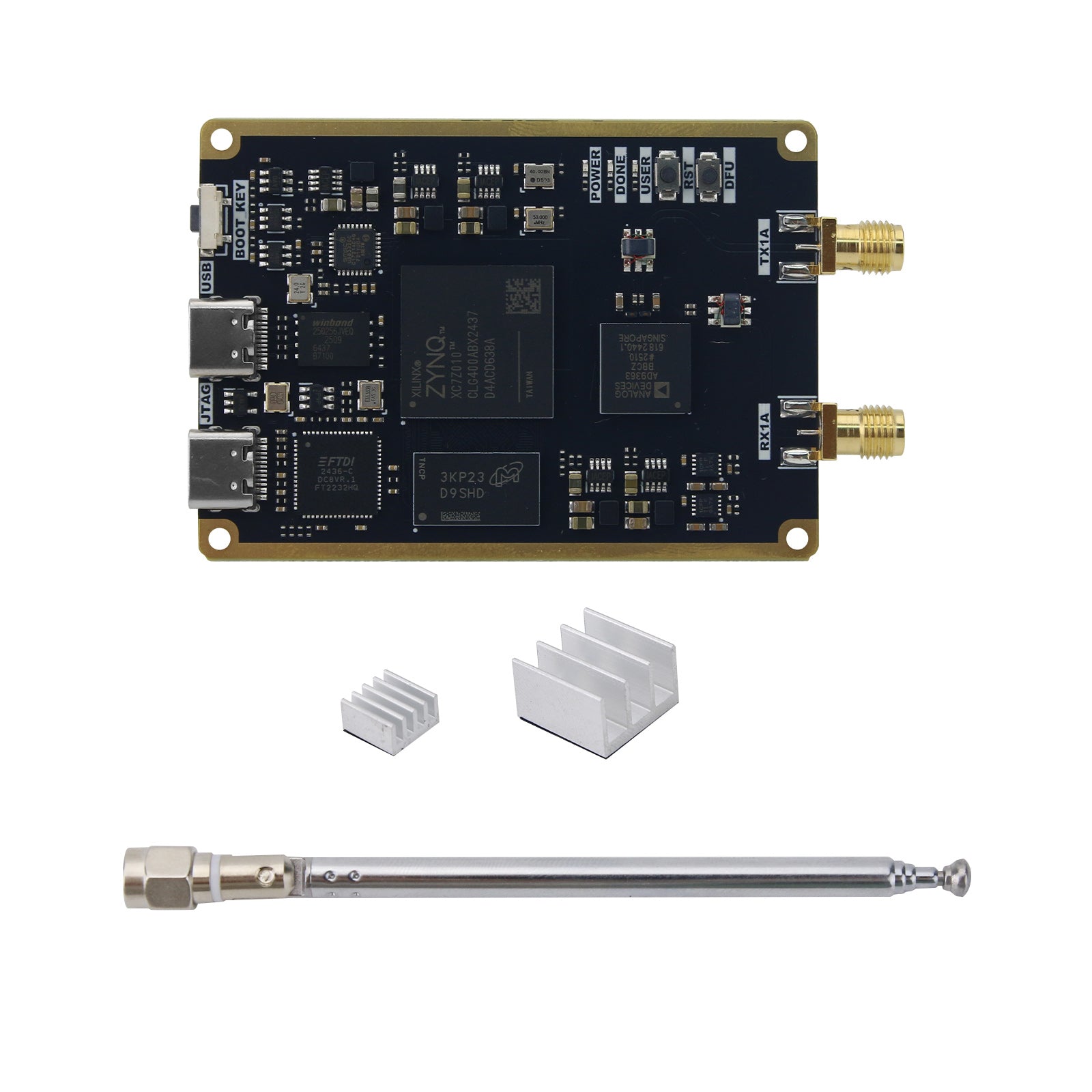

Package Included:

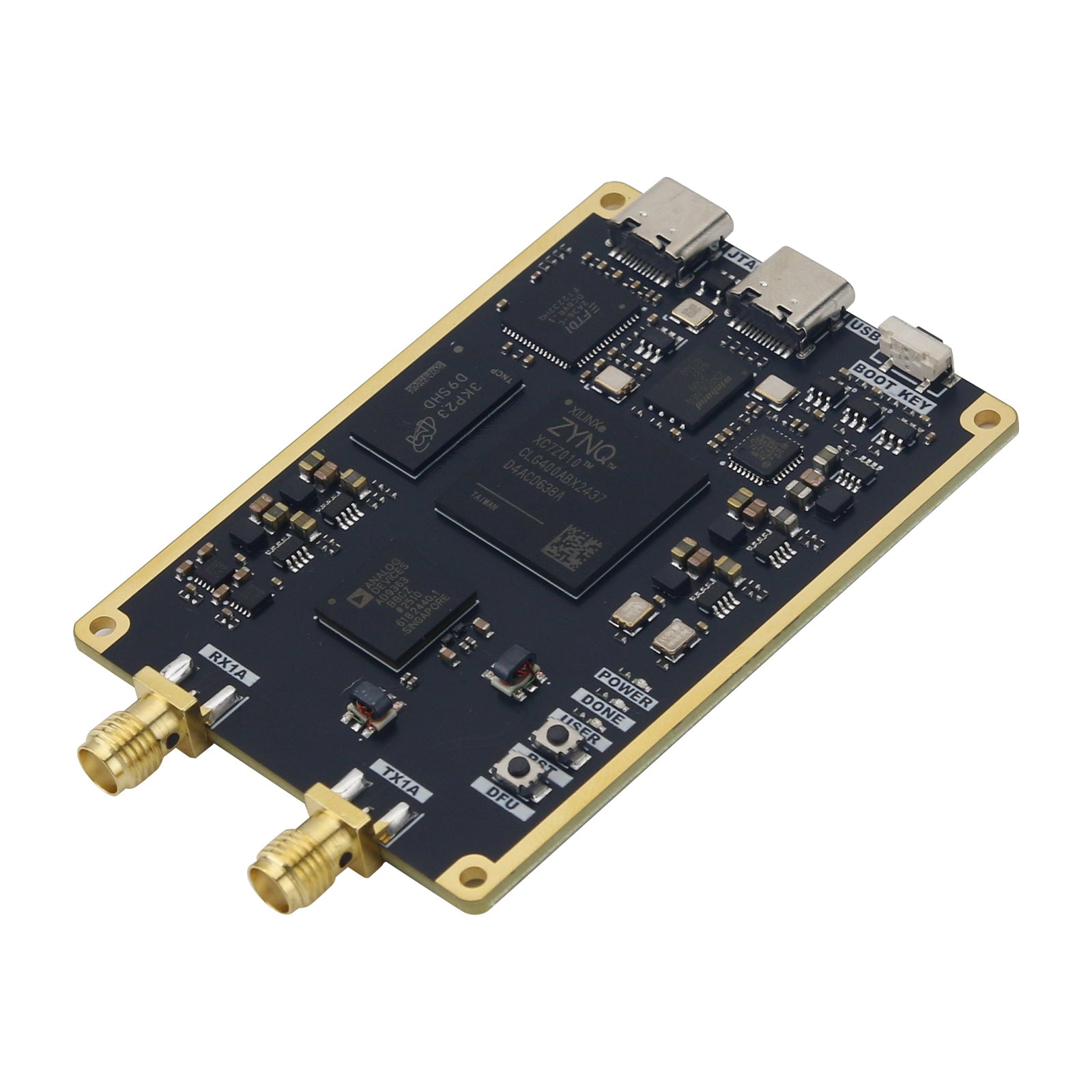

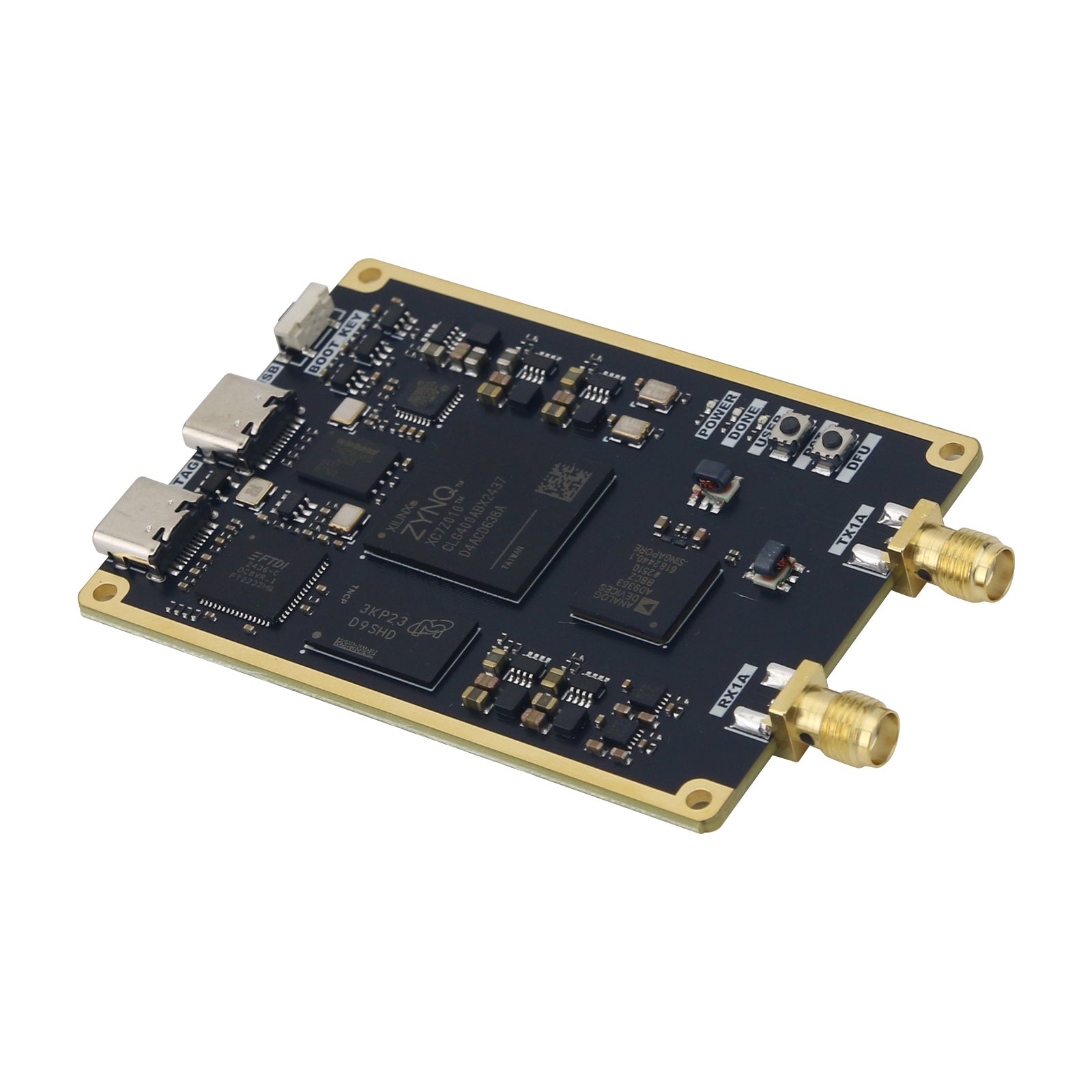

- 1 x Development Board (without Shell)
OR

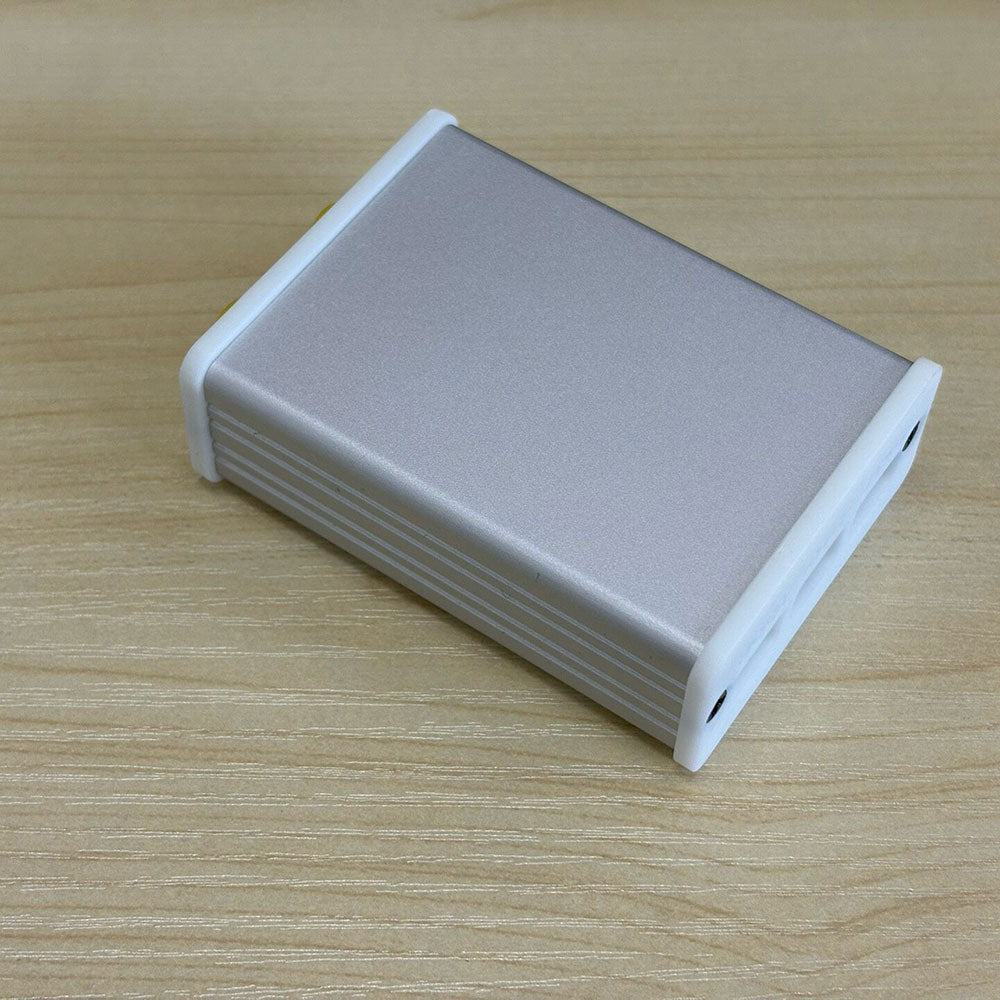

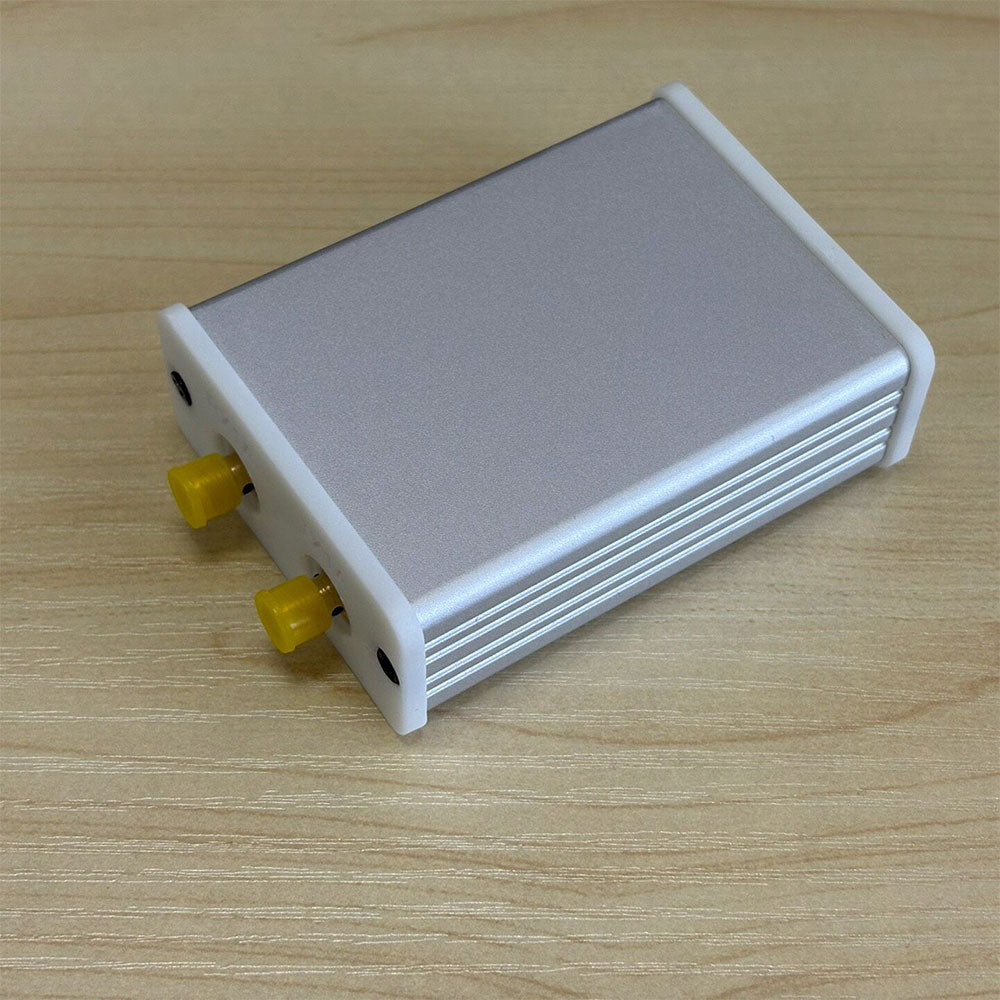

- 1 x Development Board (with Shell)
