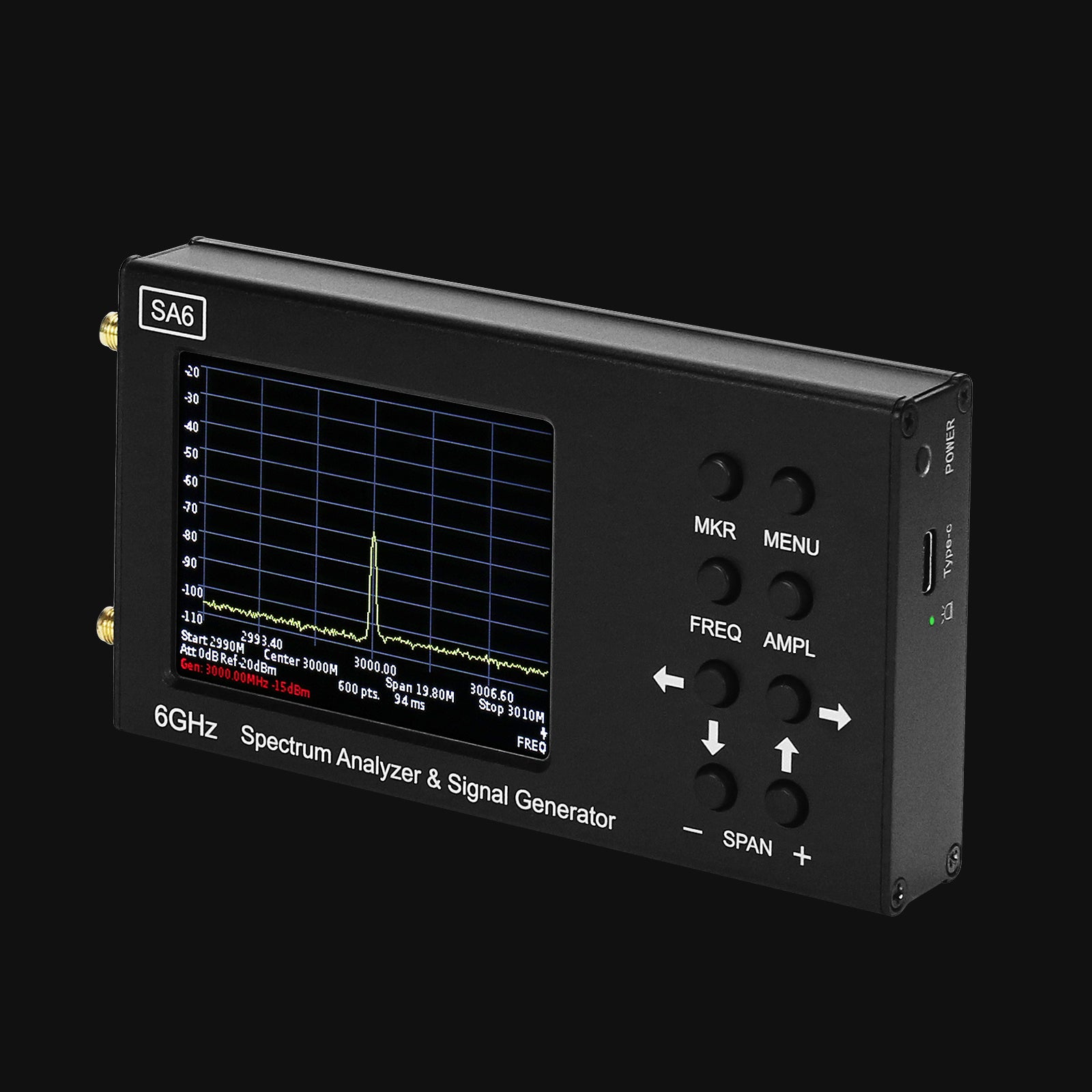

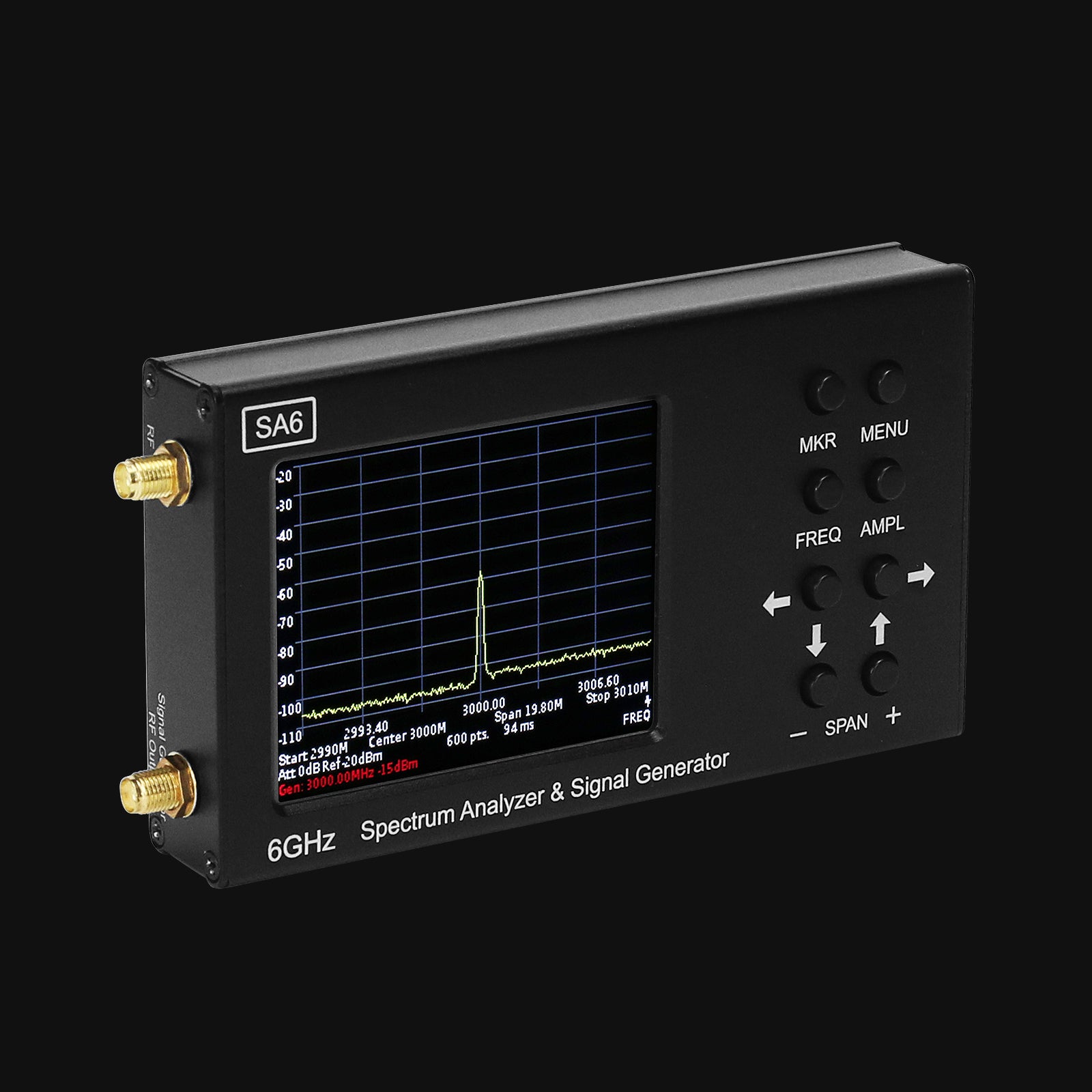

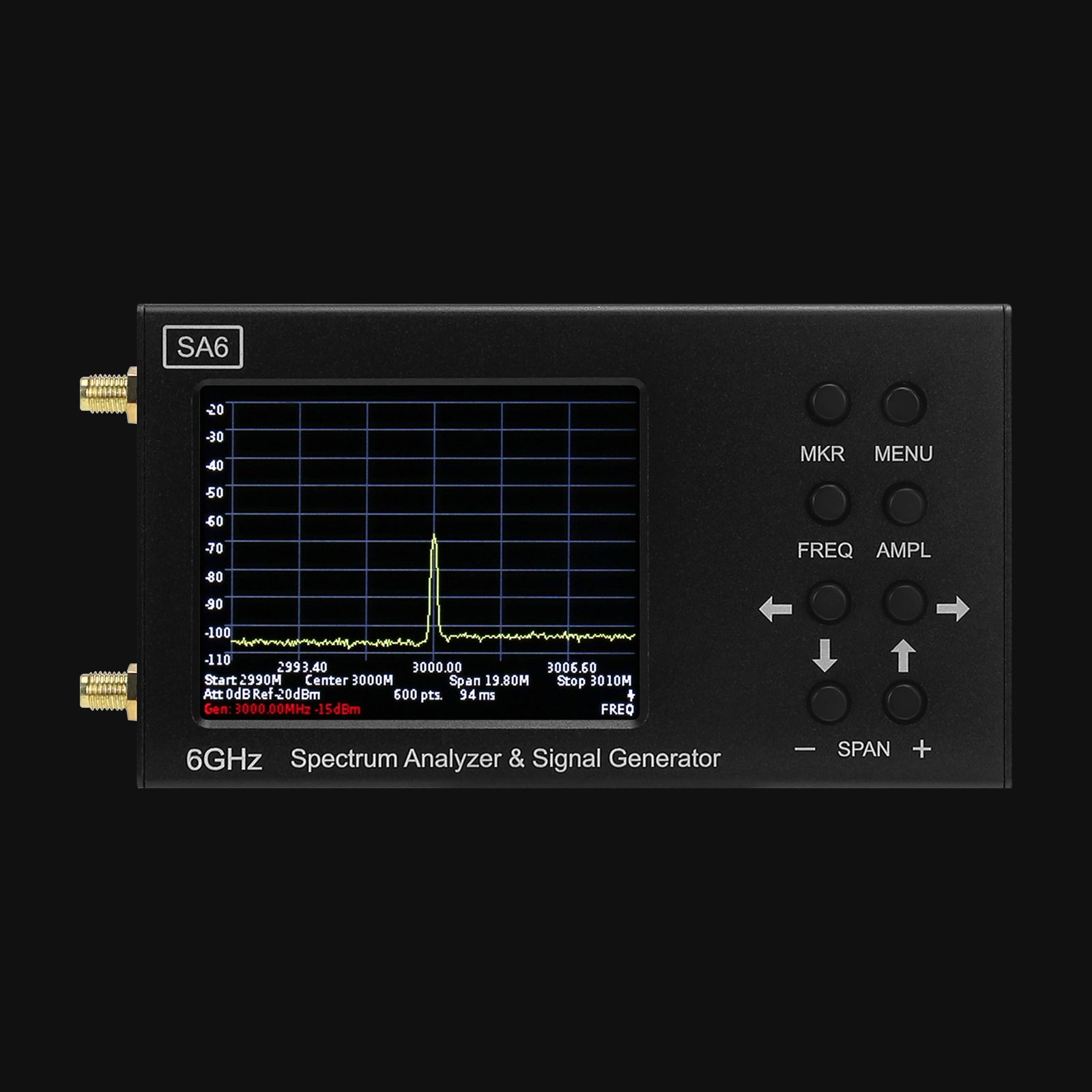

HamGeek SA6 is a simple portable spectrum analyzer and signal source designed to display the signal spectrum from 35 to 6200 MHz.

The analyzer finds the amplitude and frequency of the spectral components of the analyzed process. The spectrum analyzer can process signals from all widely used technologies: Wi-Fi, 2G, 3G, 4G, LTE, CDMA, DCS, GSM, GPRS, GLONASS, etc.

Another important feature is its tracking generator, which makes it possible to measure the frequency response of passive or active devices (such as filters or amplifiers). The software allows measurement of SWR and return loss modules. This requires an external directional coupler and a set of calibration measures.

SA6 is mainly used for on-site operation. The equipment is sturdy and durable, light in weight, and low in energy consumption. It enables service centers and maintenance teams to perform on-site HF analysis for commissioning and repair work. In addition, the spectrum analyzer is the perfect solution for repair shops and radio enthusiasts.

For example, you can use the device to do the following:
Place the external antenna on the base station
Quick analysis of the RF environment
Check the correct operation of the relay cell
Repair and adjustment of repeaters, generators, filters, etc.
Measuring SWR when using an external directional coupler

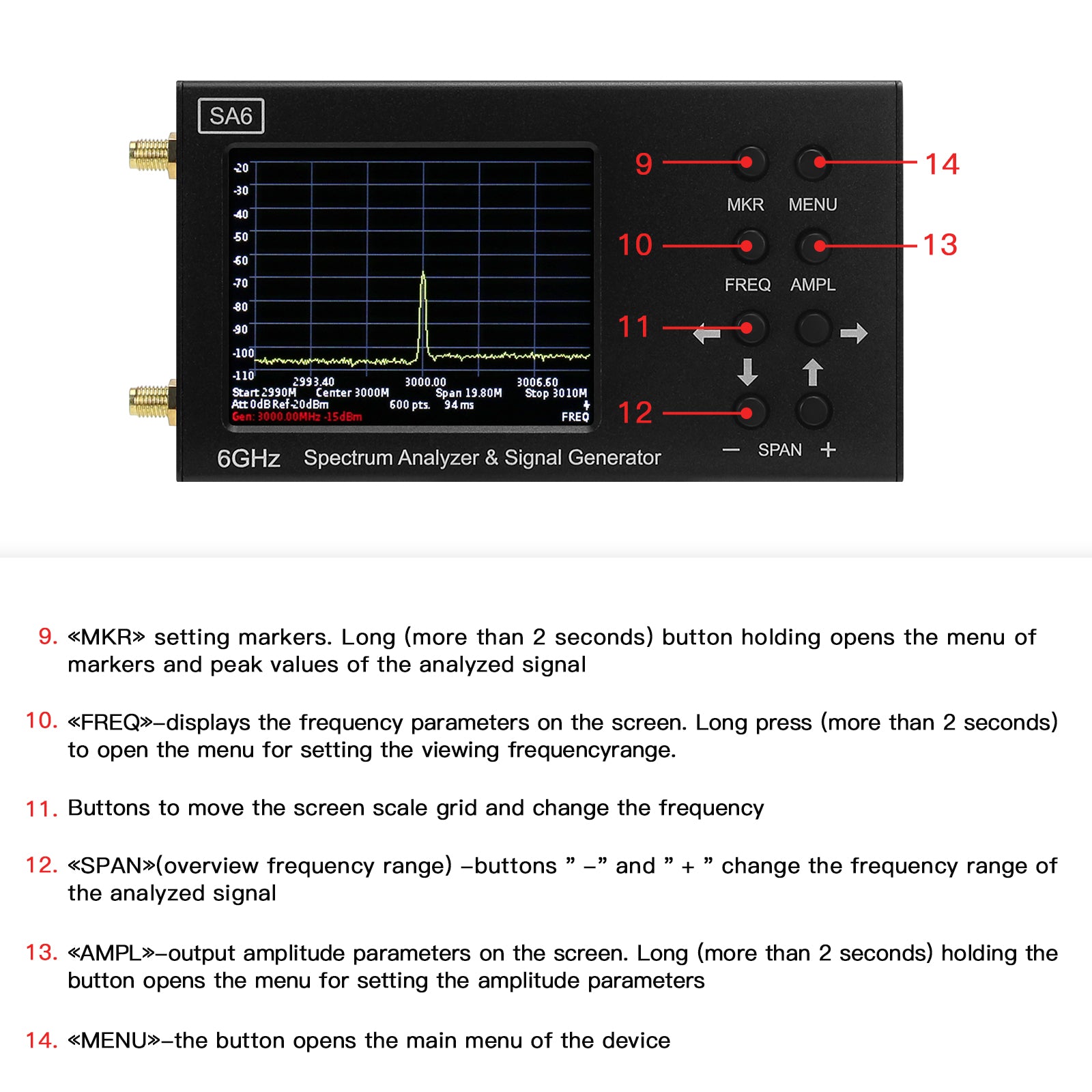

It can be controlled through the buttons on the device or the touch screen. Data transmission between analyzer and PC via USB cable. All measurement data are displayed on the screen of the device or PC in real time.

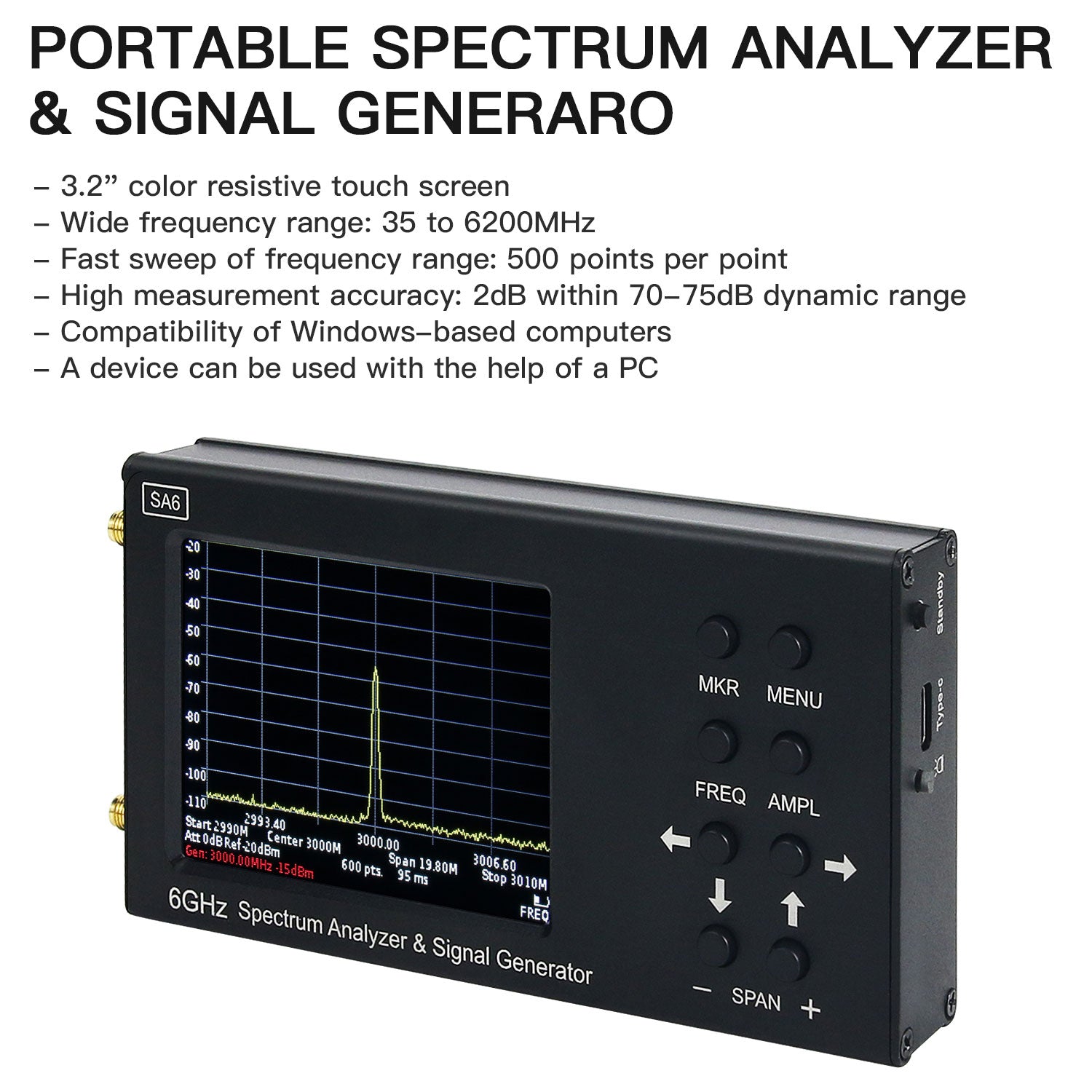

Performance Parameters:

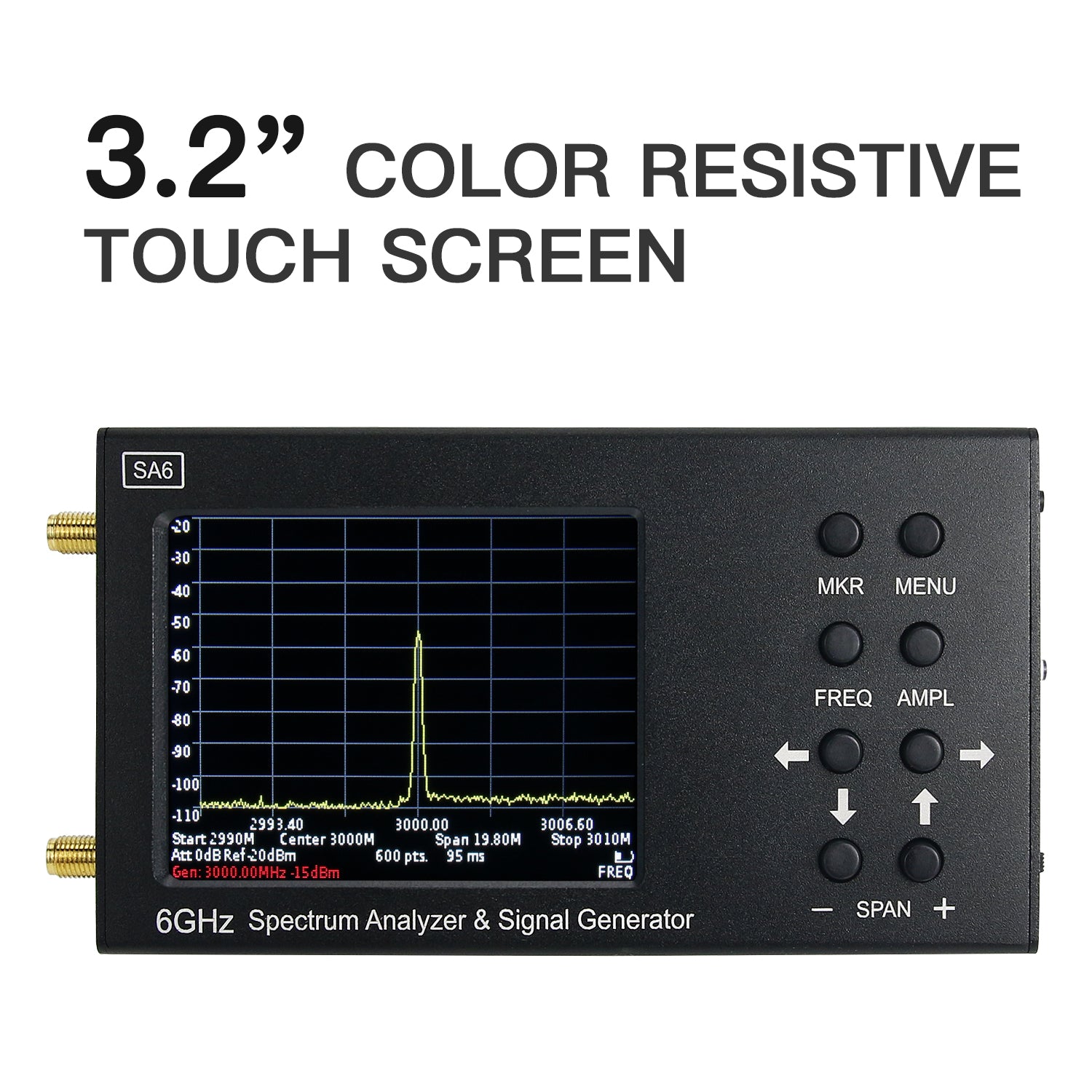

- 3.2" color resistive touch screen
- Wide frequency range: 35 to 6200MHz
- Fast sweep of frequency range: 500 points per point
- High measurement accuracy: 2dB within 70-75dB dynamic range
- Compatibility of Windows-based computers
- A device can be used with the help of a PC
- Particularly convenient to use
- Weight 380g/0.8 lb; Size 150 х 75 х 23 mm/5.9 x 3 x 0.9"
- Independent power supply can last up to 4 hours of uninterrupted operation, and the wired data transmission to a PC

- Display frequency range: 35-6200 MHz
- Measuring frequency range: 35-4500 MHz
- Dynamic range of 35-3000 MHz: 75 dB
- Dynamic range of 3000-4500 MHz: 70 dB
- Maximum span: 6165 MHz
- Bandwidth: 200 kHz, fixed
- View the scanning speed of the frequency band above 100MHz: 700MHz/sec
- Sweep 100 MHz: < 0.25 seconds
- Noise floor up to 3000 MHz: < -90dBm
- Noise floor 3000-4500 MHz: < -85dBm
- Noise floor 4500-6200 MHz: < -80dBm
- Wave impedance: 50 ohms
- Standing wave ratio in the working frequency range: < 1.5
- Internal attenuator: 0-30 dB
- Error at attenuation up to 10 dB: 2 dB
- 10 to 20 dB attenuation error: 5 dB
- 20 to 30 dB attenuation error: 8 dB
- Tracking generator output power: -15 to -25 dBm
- Accuracy in dynamic range: 2.0 dB
- The maximum input power of the attenuator at 0 dB: 10 dBm
- Maximum input power when attenuation is greater than 20dB: +20dBm

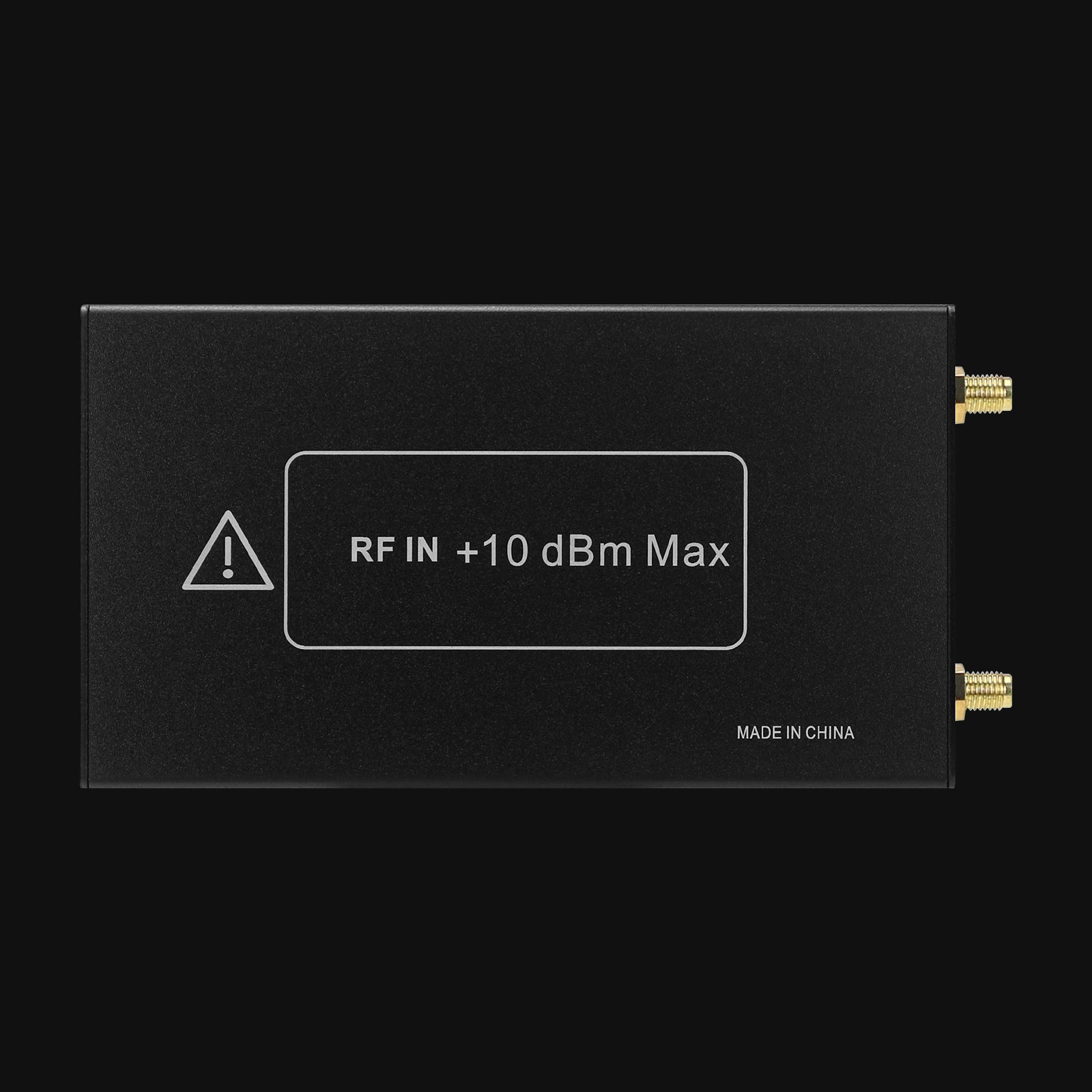

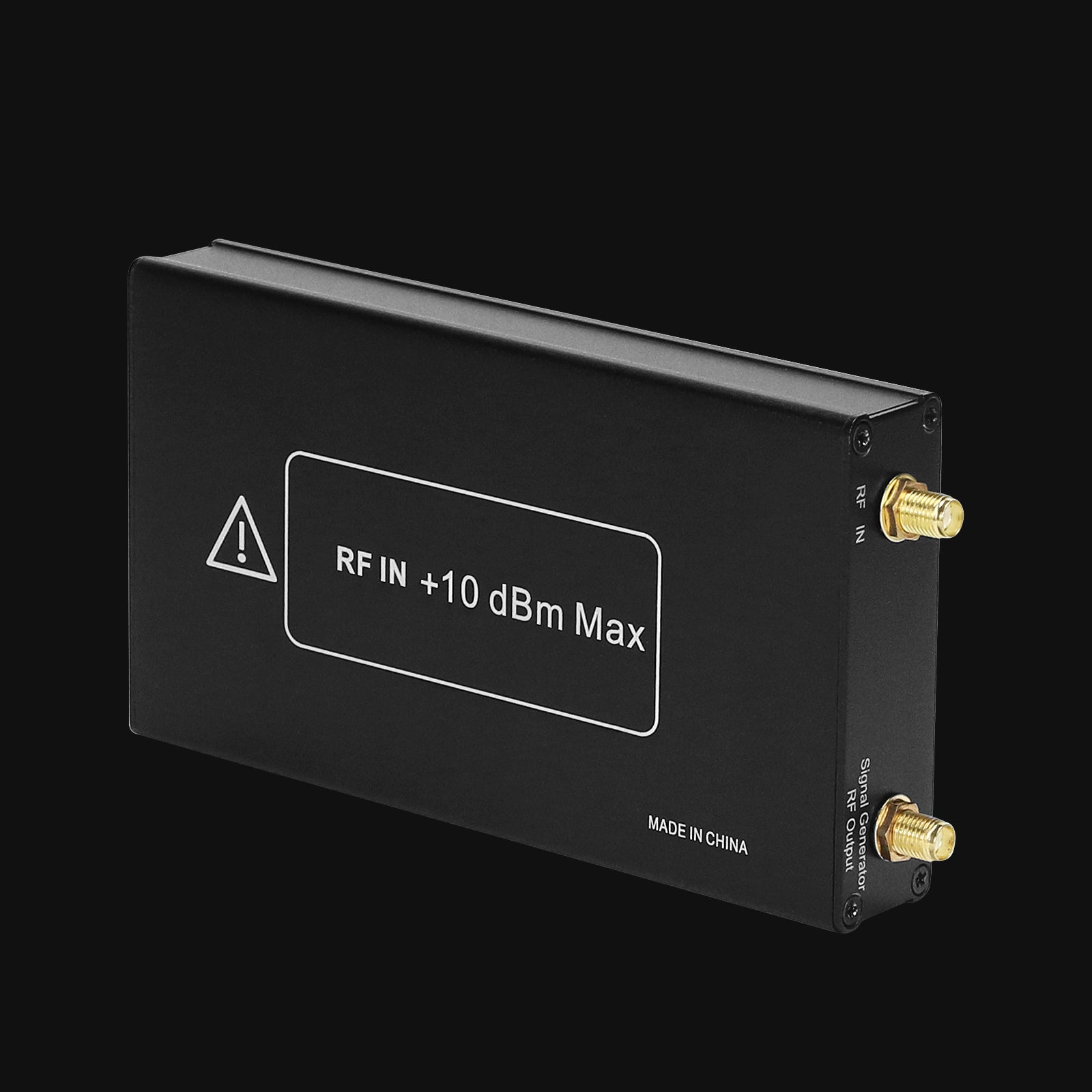

- Maximum input measurement signal: +10 dBm
- Maximum input DC voltage: 25V
- Maximum current consumption when running on battery: 450 mA
- Maximum current consumption when running from USB: 500 mA (when charging)
- Battery: 2500 mAh
- Duration time: 3 hours
- Battery charging time: ~ 5 hours

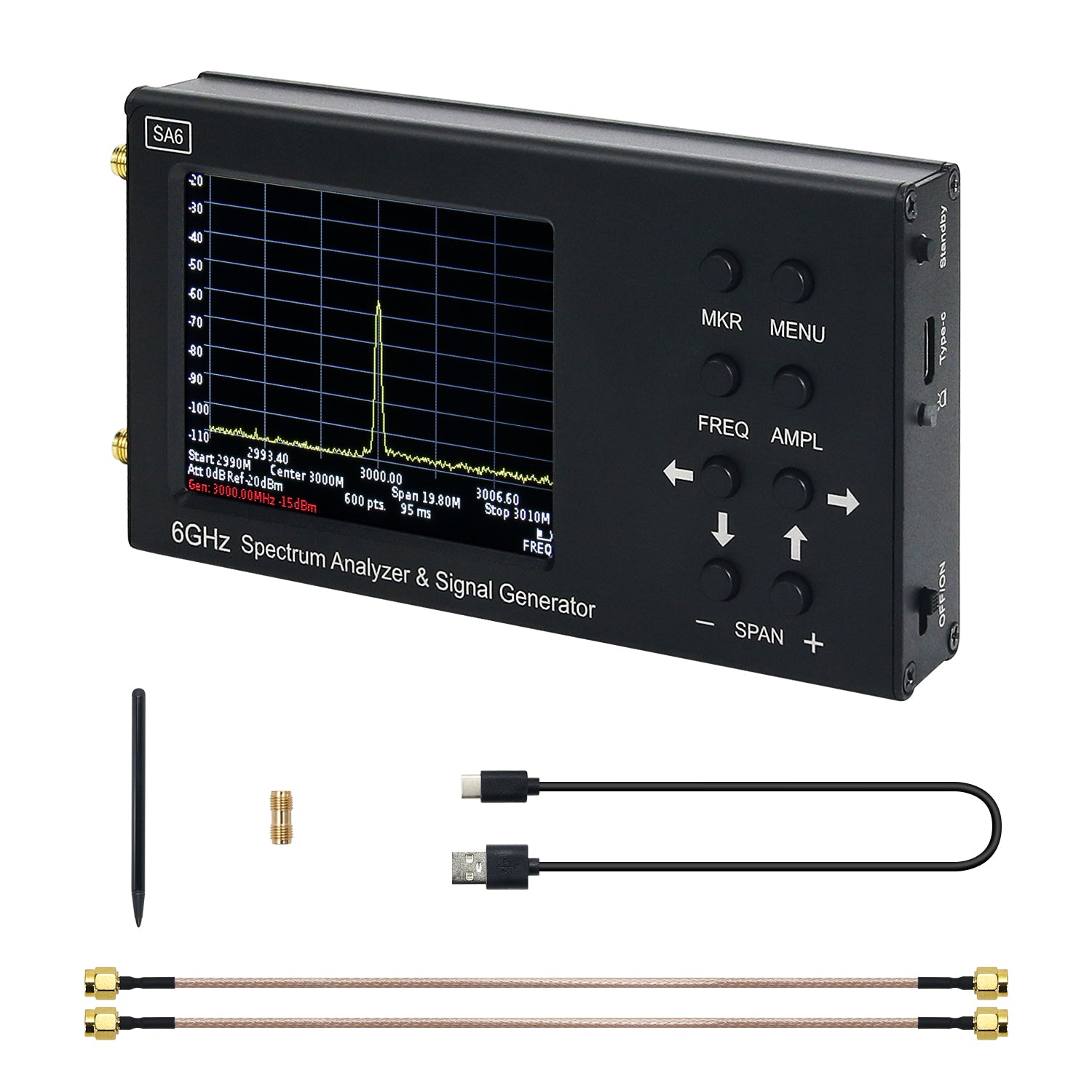

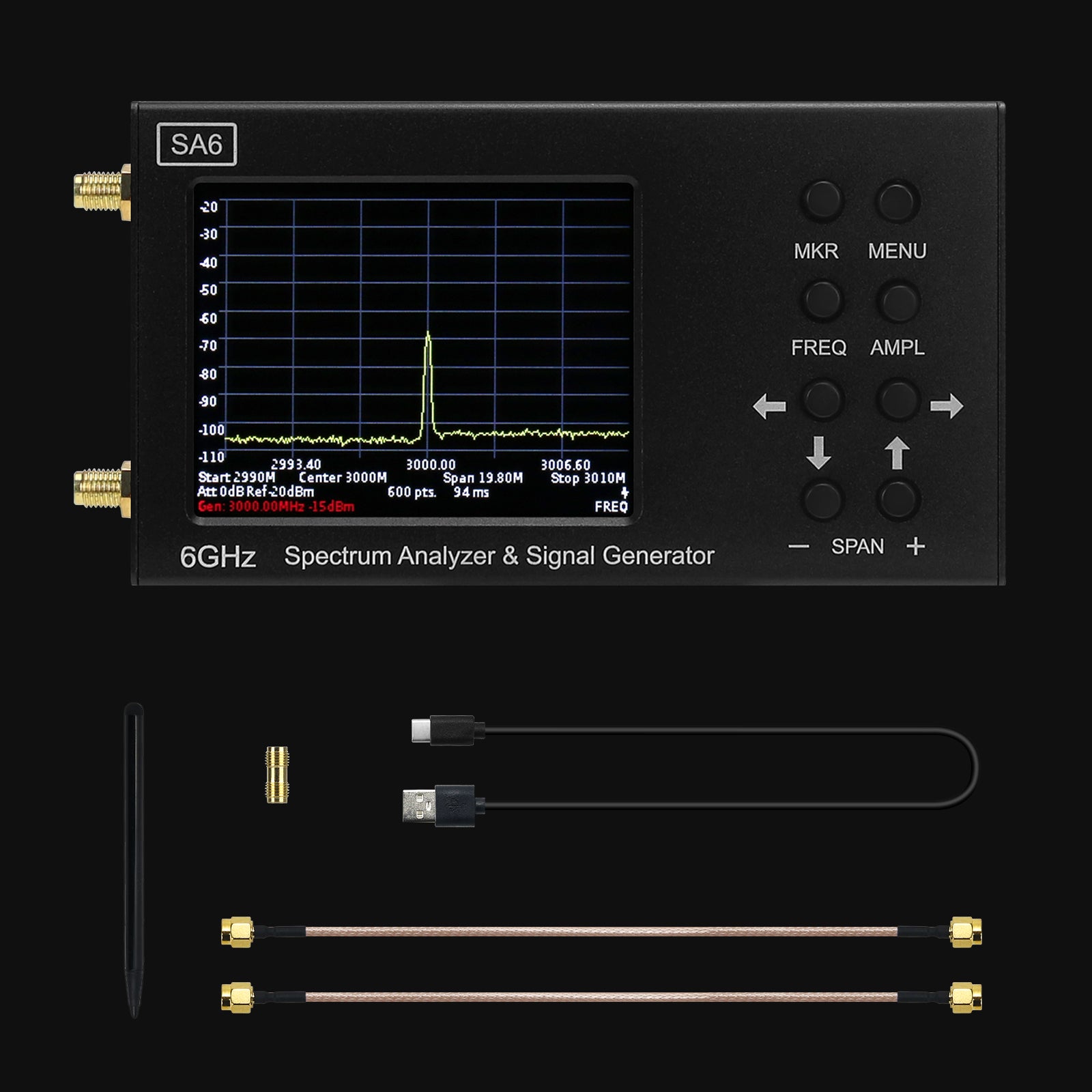

Package Included:
- 1 x Spectrum Analyzer Host
- 1 x Resistive Touch Pen
- 1 x 30CM/11.8" SMA Extension Cable
- 1 x SMA-KK Passed
- 1 x Type-C USB 1M/3.3FT Data Cable
