PZ7020S-FL-KFB ZYNQ-7020 FPGA Development Board XC7Z020 Industrial Grade FMC PYNQ Compatible
$314.00 - $756.00
Koszt wysyłki obliczony przy realizacji zakupu.
Cena regularna
$314.00
Cena regularna
Cena sprzedaży
$314.00
Cena jednostkowa
na
Nie można załadować gotowości do odbioru
Availability:
Out of stock
SKU:
101018
Cena regularna
$314.00
Cena regularna
Cena sprzedaży
$314.00
Development Board Only
Available Kit Options:
* Development Board Only
* ADDA Kit
* Dual Camera Kit
* LCD Kit
* High-Speed ADC Kit
* Classic Kit
* Deluxe Kit
Features:
* PZ7020S-FL-KFB ZYNQ-7020 FMC Development Board
* Heterogeneous Architecture for ARM+FPGA
* LPC High-Speed Expansion
* 1GB DDR Industrial Grade
* Supports PYNQ with Abundant Routines
* Integrated JTAG Downloader
* FMC-LPC IO Full Connection
* Rich Interfaces
* Optional Matching Daughter Cards
Product Specifications:
* Development Board: PZ7020S-FL-KFB
* Main Controller: XC7Z020-2CLG400I
* Core: Dual-core Cortex-A9 for ARM, main frequency 766MHz
* Speed Grade: Grade 2
* Temperature Grade: Industrial grade (-40°C to 85°C)
* Logic Cells: 85K
* LUTs: 53200
* Flip-Flops: 106400
* DSP Slices: 220
* BLOCK RAM: 4.9Mb
* DDR3/DD3L: 1GB
* QSPI FLASH: 256Mb
* User LED: 2-channel
* PS MIO: 30 PS ports (24 fixed 1.8V, 6 fixed 3.3V)
* PL IO: 116 single-ended (1.8/2.5/3.3V adjustable, default 3.3V)
* Crystal Oscillator: 1 single-ended 33.3333MHz crystal oscillator provided to PS, 1 single-ended 50MHz crystal oscillator provided to PL
* Core Board Dimensions: 60x45mm
Interfaces and Functions:
* Integrated JTAG Downloader: 1-channel
* UART/RS485/CAN: 1-channel/1-channel/1-channel
* SD Card Interface: 1-channel
* USB 2.0 Host/Slave: 1-channel/1-channel
* Gigabit Ethernet: 1-channel on PS side
* HDMI-Compatible: 1-channel HDMI-compatible output
* LED, Buttons: 4-channel LED, 4-channel buttons
* FMC-LPC: 72 single-ended/36 differential pairs
* Power Supply/Current: 12V 1A
* Development Board Dimensions: 120x95mm
* Development Board Craft: Black Matte, Immersion Gold
* 40P Expansion Port: 32 single-ended/16 differential pairs (PL side). Reserved 1x 40P 2.54mm pitch expansion port for connecting various PZ modules (AD/DA, dual camera, 4.3-inch TFT LCD screen, etc.). The expansion port includes 1-channel 5V power supply, 1-channel 3.3V power supply, 6 ground pins, and 32 IO ports.
Packing List (Varies by Selected Kit):
Development Board Only:
* 1 x Development Board
* 1 x 12V 1A Power Adapter
* 2 x Micro USB Cables
* 1 x Heatsink
* 1 x 8G SD Card
* 1 x SD Card Reader

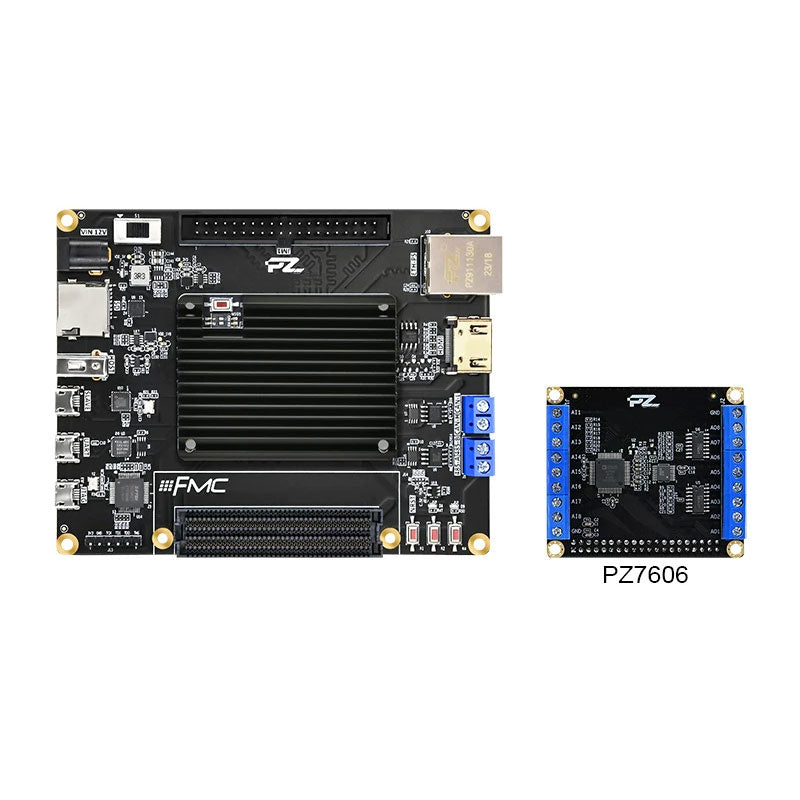

ADDA Kit:
* 1 x Development Board
* 1 x 12V 1A Power Adapter
* 2 x Micro USB Cables
* 1 x Heatsink
* 1 x 8G SD Card
* 1 x SD Card Reader
* 1 x PZ7606

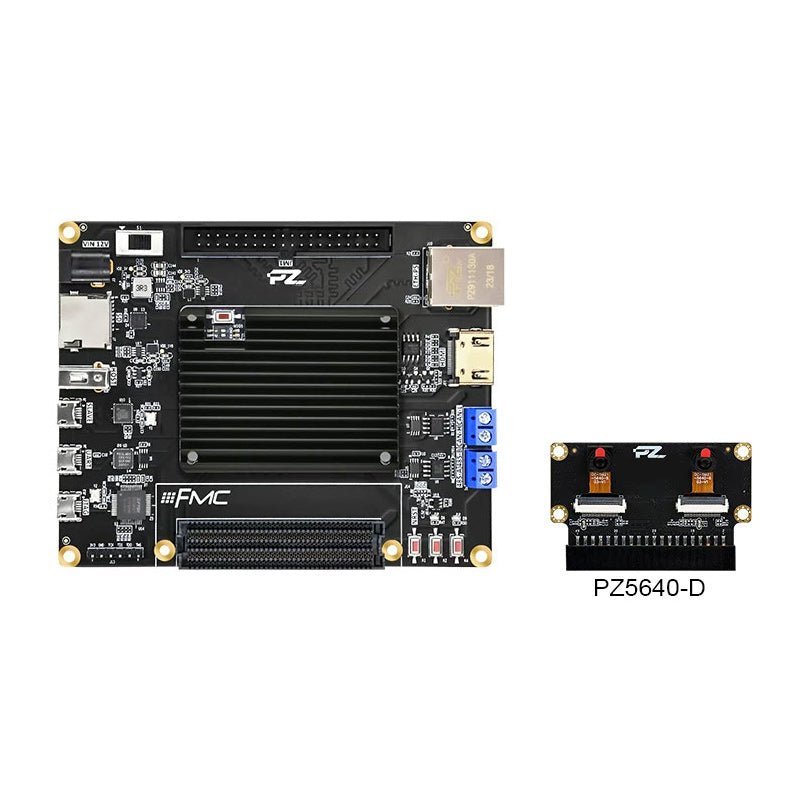

Dual Camera Kit:
* 1 x Development Board
* 1 x 12V 1A Power Adapter
* 2 x Micro USB Cables
* 1 x Heatsink
* 1 x 8G SD Card
* 1 x SD Card Reader
* 1 x PZ5640-D

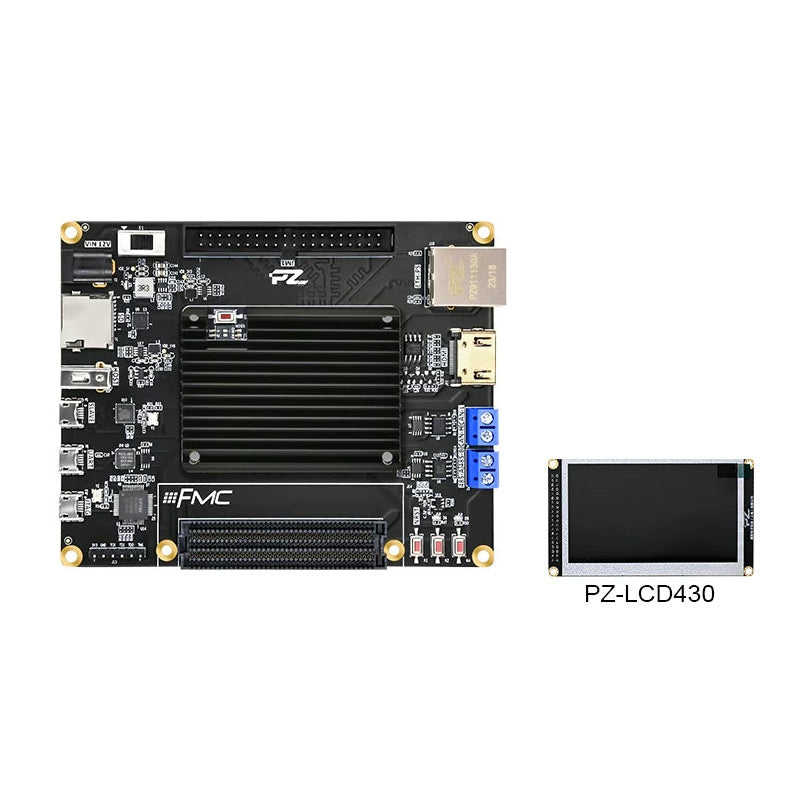

LCD Kit:
* 1 x Development Board
* 1 x 12V 1A Power Adapter
* 2 x Micro USB Cables
* 1 x Heatsink
* 1 x 8G SD Card
* 1 x SD Card Reader
* 1 x PZ-LCD430

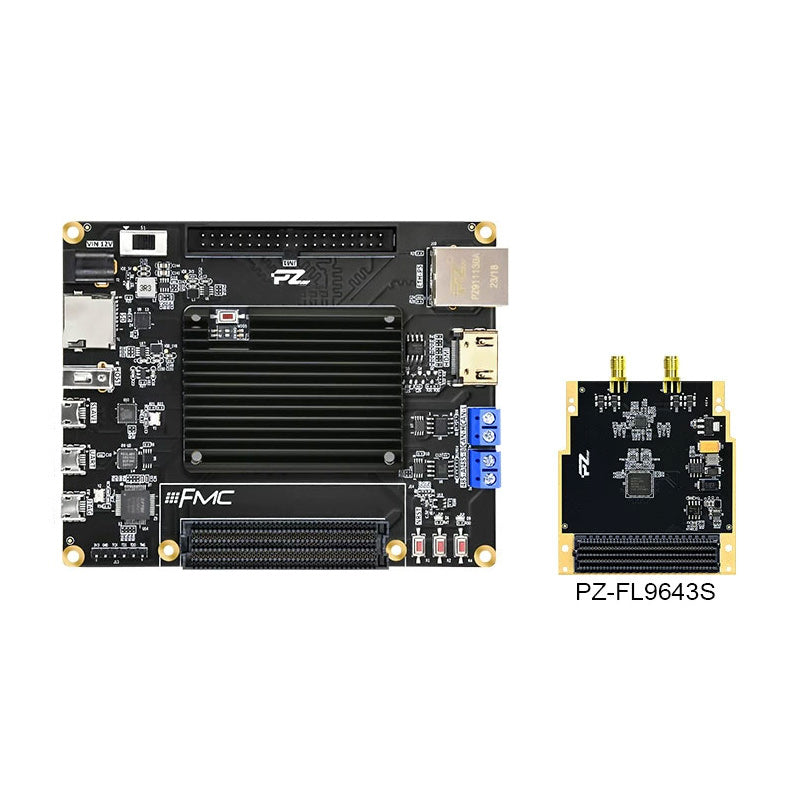

High-Speed ADC Kit:
* 1 x Development Board
* 1 x 12V 1A Power Adapter
* 2 x Micro USB Cables
* 1 x Heatsink
* 1 x 8G SD Card
* 1 x SD Card Reader
* 1 x PZ-FL9643S

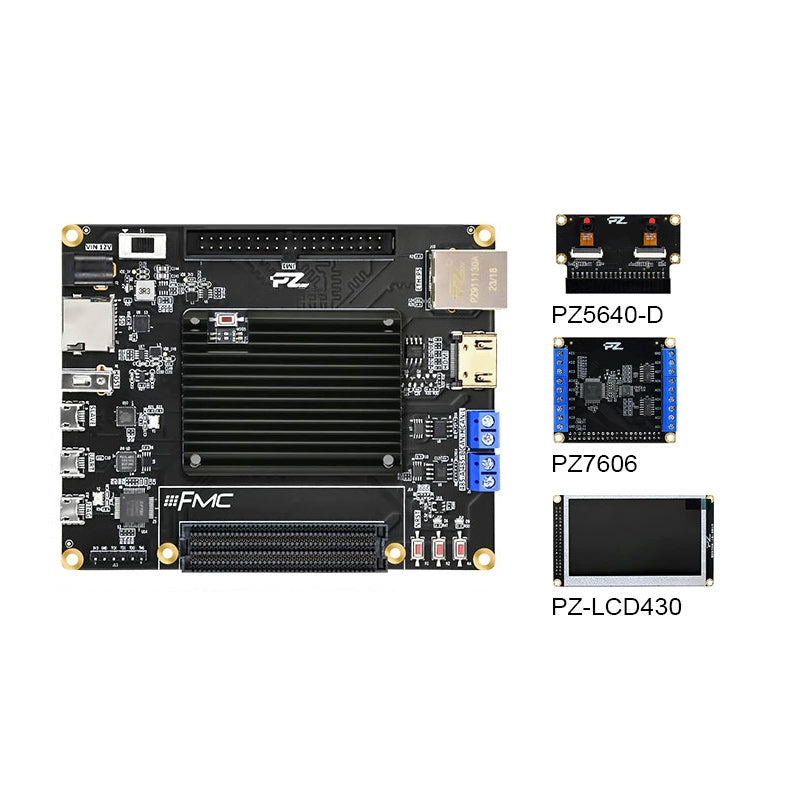

Classic Kit:
* 1 x Development Board
* 1 x 12V 1A Power Adapter
* 2 x Micro USB Cables
* 1 x Heatsink
* 1 x 8G SD Card
* 1 x SD Card Reader
* 1 x PZ5640-D
* 1 x PZ7606
* 1 x PZ-LCD430

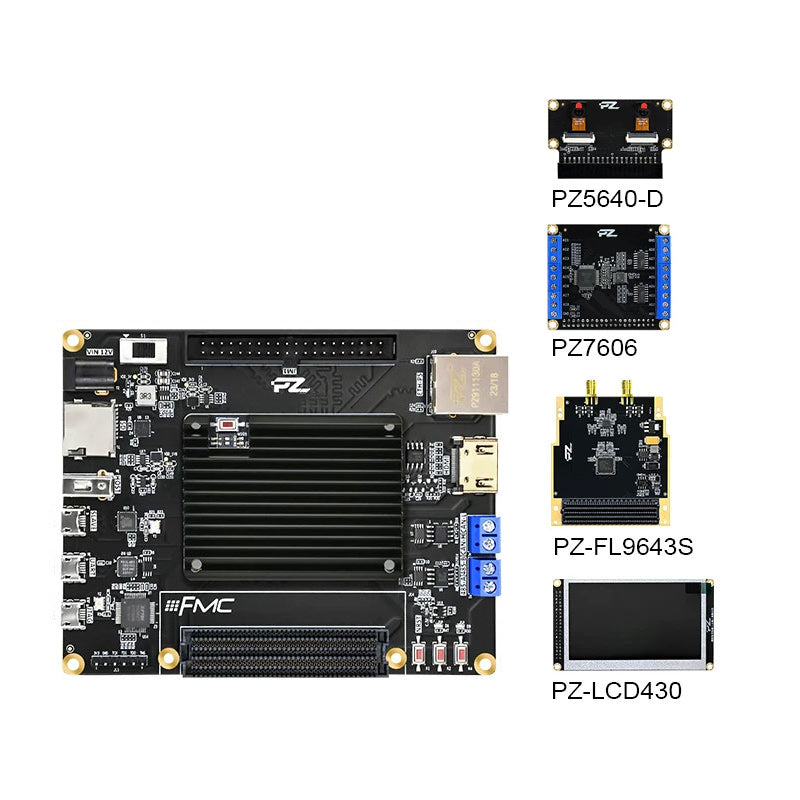

Deluxe Kit:
* 1 x Development Board
* 1 x 12V 1A Power Adapter
* 2 x Micro USB Cables
* 1 x Heatsink
* 1 x 8G SD Card
* 1 x SD Card Reader
* 1 x PZ5640-D
* 1 x PZ7606
* 1 x PZ-FL9643S
* 1 x PZ-LCD430
Package Weight:
* Development Board Only: 0.35kg
* ADDA Kit: 0.4kg
* Dual Camera Kit: 0.4kg
* LCD Kit:0.4kg
* High-Speed ADC Kit: 0.4kg
* Classic Kit: 0.5kg
* Deluxe Kit: 0.6kg
