Available Package Options:
* Core Board Only
* Core Board + Downloader
Features:
* Fudan Micro PSOC7000 System-on-Module
* Compact Stamp-Hole Design
* Up to 142 I/O Pins
* No Components on the Back Side
* Integrated Downloader
* Industrial-Grade Design for High Reliability
* ISO 9001 Certified & RoHS Compliant, Meeting Multiple International Standards
* 72-Hour High/Low Temperature Reliability Testing
* 10+ Year Product Life-cycle
Specifications:
* Core Board: PZ7020F-SOM
* Main Controller: JFMQL20S400
* CPU Core: Quad-core Cortex-A7 for ARM
* Speed Grade: Grade 2
* Temperature Grade: Industrial (-40°C to 85°C)
* Logic Cells: 85K
* LUTs: 53200
* Flip-Flops: 106400
* DSP Slices: 220
* BLOCK RAM: 4.9Mb
* DDR3: 1GB
* QSPI FLASH: 128Mb
* EMMC: 8GB
* User LED: 2 Channels
* Boot Mode: JTAG/QSPI/SD, selectable via onboard DIP switches
* Gigabit Ethernet: 1 Channel
* PS Side MIO: 24
* PL Side IO: Total 118 single-ended; including 70 IOs fixed at 3.3V level, 48 IOs adjustable to 1.8/2.5/3.3V level (Default 3.3V)
* Power Supply/Current: 5V/1A
* Crystal Oscillator: 1 single-ended 33.3333MHz oscillator provided to PS; 1 single-ended 50MHz oscillator provided to PL
* Dimensions & Process: 61mm x 61mm, immersion gold, 1.27mm pitch stamp holes, top-layer maximum height 3mm, PCB thickness 1.2mm
Additional Information:
* Processor Architecture: FPGA, For ARM + FPGA
* Expansion Interface: GPIO
* Operating System Support: Linux
* Typical Applications: Energy & Environmental Systems, 51 MCU Learning, Embedded Hardware, Consumer Electronics, and Internet of Things
* Network Interface: Gigabit Ethernet (1Gbps)
* Expansion Module Compatibility: 1 Expansion Module Compatible
Packing List (Varies by Selected Package):

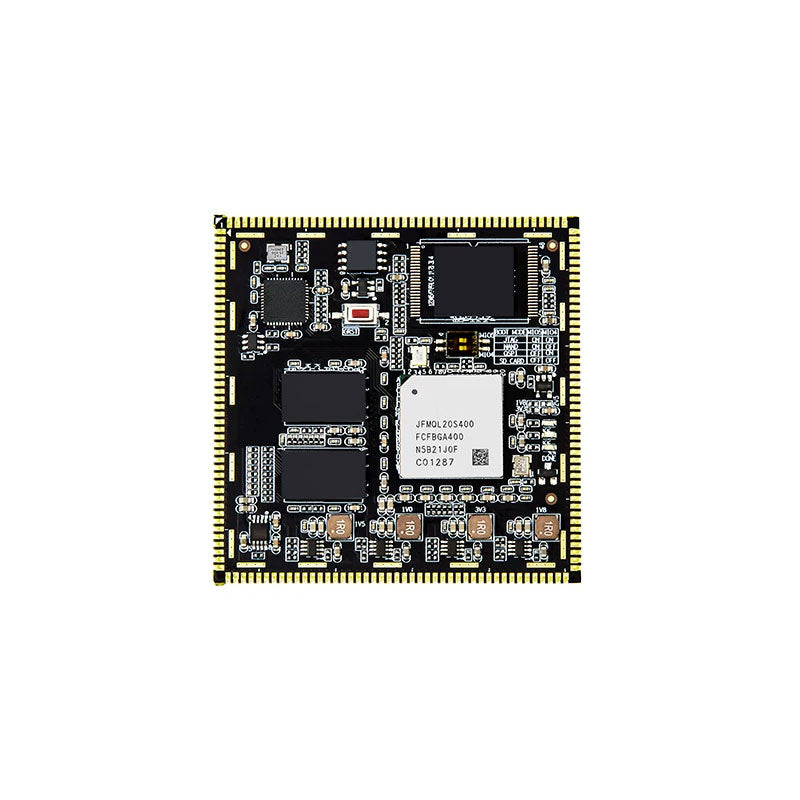

Core Board Only:
* 1 x Core Board

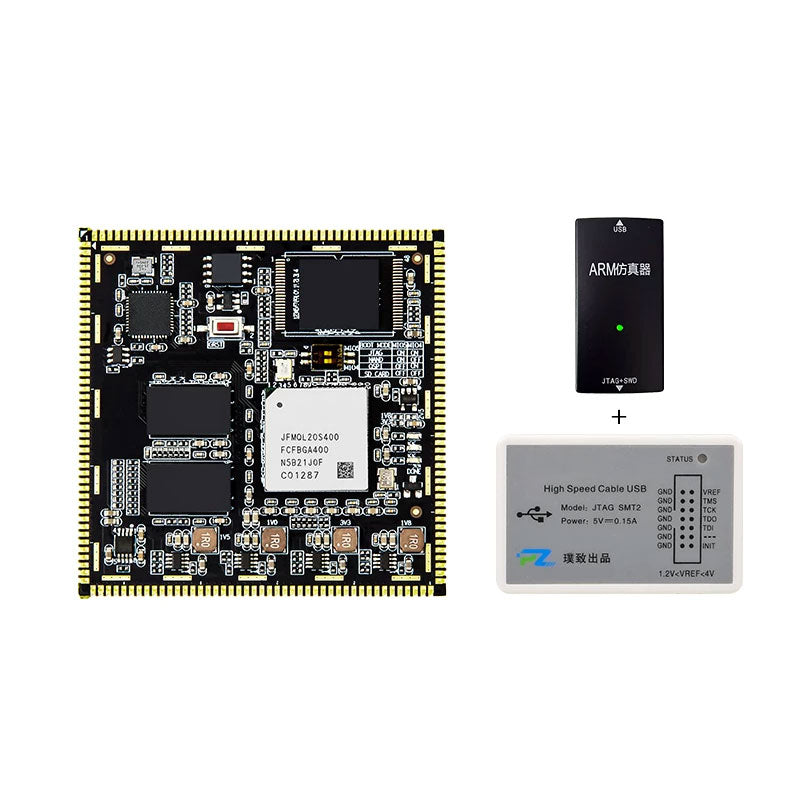

Core Board + Downloader:
* 1 x Core Board
* 1 x Downloader
* 1 x ARM Emulator
Package Weight (Varies by Selected Package):
* Core Board Only: 0.15kg
* Core Board + Downloader: 0.23kg
