通常価格
$3,373.00
通常価格
セール価格
$3,373.00
Model Comparison:
* P401D: XCZU4EV + AD9361BBCZ x 2
* P501D: XCZU5EV + AD9361BBCZ x 2
Features:
* PZSDR Software Defined Radio
* RF Chip AD9361BBCZ, Frequency Range 70MHz-6GHz, Signal Bandwidth 200KHz-56MHz
* PS Side 2GB DDR4, 256Mb QSPI FLASH, and 22dbm Power Amplifier

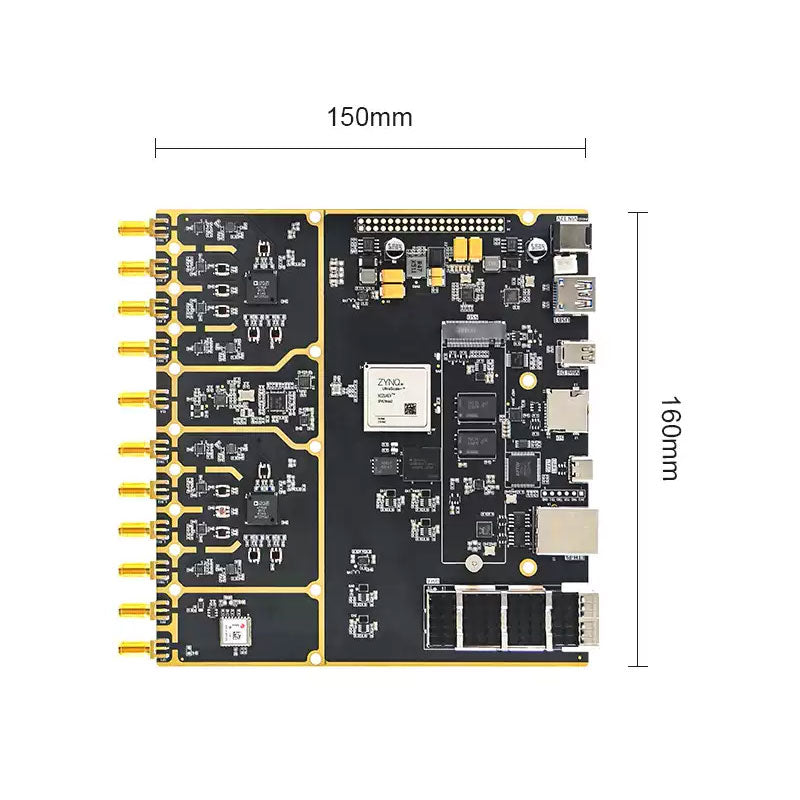

* Dimensions: Board 150mm x 160mm, Shell 170mm x 160mm x 28mm
* 4TX 4RX, Electrostatic Protection, Safe and Reliable
* Superior Performance and High Isolation
* Multi-Channel High Linearity and High Sensitivity
* Supports TDD, FDD and MIMO
* Supports Signal Detection and Storage
* Provides Host PC Software
Industrial SDR Board:
* Operating Temperature: -40°C to 85°C (Extreme Cold & Heat, Outdoor Enclosures)
* Stability & Lifespan: Designed for 7x24 continuous operation scenarios, with high MTBF (Mean Time Between Failures)
* Anti-Interference Capability: Electromagnetic Interference (EMI) Resistance, Full-Interface ESD Protection + RF Shielding
* Price & Cost: Higher price, due to high component costs for wide temperature ranges and rigorous testing
* Common Applications: Industrial Automation, Outdoor Telecom Base Stations, Power Monitoring, Traffic Monitoring, Phased Array Radar, and Spectrum Monitoring
Rich Support Resources:
Initial Code & Firmware
* ADI-NOOS Bare-Metal Test Code
* ADI-FMCOMMS5 Compatible Firmware
* OpenWifi Test Firmware
* ADI-IIO-USB3.0 (NCM-3.75G)-EMMC Test Firmware
Open-Source Project Support
* ADI IIO-oscilloscope
* Spectrum Analyzer Host PC Software
Software Support
* libiio
* ADI IIO-oscilloscope
* Host PC Acquisition & Processing Software
Additional Information:
* Processor Architecture: For ARM + FPGA, FPGA
* Expansion Slot Types: 40-Pin GPIO, USB, and GPIO
* Typical Applications: Embedded Hardware, IoT, Energy and Environmental Monitoring, 51 MCU Learning, and Consumer Electronics
* Network Interface Configuration: USB 3.0, UART, I/O, and Gigabit Ethernet (1Gbps)
* Expansion Module Compatibility: Multi-Platform Compatibility
* Operating System Support: None
Packing List:
* 1 x Board
* 1 x Enclosure
* 1 x 12V/3A Power Adapter
* 1 x GPS Antenna
* 1 x Type-C Cable
* 1 x USB 3.0 Data Cable with Two Plugs
* 1 x Gigabit Ethernet Cable
* 4 x Dual-Band Rubber Antennas (2.4Hz/5.8GHz)
* 2 x Spring Antennas (100MHz-6GHz)
* 1 x 32GB SD Card
* 1 x SD Card Reader
Packaging Details:
* Package weight: 1kg
