Advantages:
* PZSDR-P159 (ZU15EG+ADRV9009)
* PZSDR Software Defined Radio
* High Bandwidth, High Power, and High Sensitivity
* Supports TDD/FDD/MIMO
* Supports Signal Detection/Storage
* Provides Host Software
* Supports Custom Development
Features:

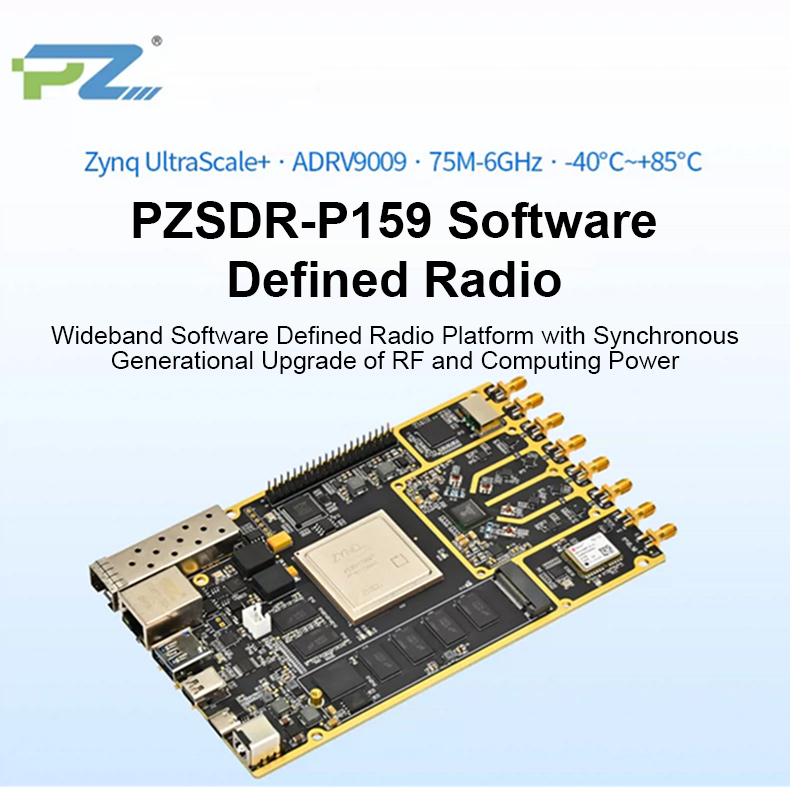

PZSDR-P159 Industrial SDR: Wideband RF Performance with Phase-Coherent Architecture
* With up to 200MHz receive bandwidth and 450MHz transmit bandwidth, one PZSDR-P159 can handle wideband signal acquisition and generation without requiring multiple narrow-band SDR platforms.
Industrial-Grade Wide Temperature Operation
* Operating Temperature: -40°C to +85°C
* Designed for demanding industrial and outdoor environments
* Suitable for outdoor communication equipment, monitoring systems, radar systems, and other applications requiring extended temperature operation
Wideband Receive: Up to 200MHz
* The 200MHz instantaneous receive bandwidth enables wideband signal acquisition, including high-speed frequency-hopping and burst signals.
Wideband Transmit: Up to 450MHz
* The 450MHz transmit bandwidth supports direct generation of wideband RF waveforms, including radar pulses and linear frequency-modulated (LFM) signals.
High-Output RF Performance
* Output Power: 22dBm
* Maximum Transmit Power: 25dBm
* High linearity for wideband modulated signals
* Helps maintain controlled EVM in demanding RF applications
* Reduces the need for an external power amplifier in some high-loss cable or antenna configurations

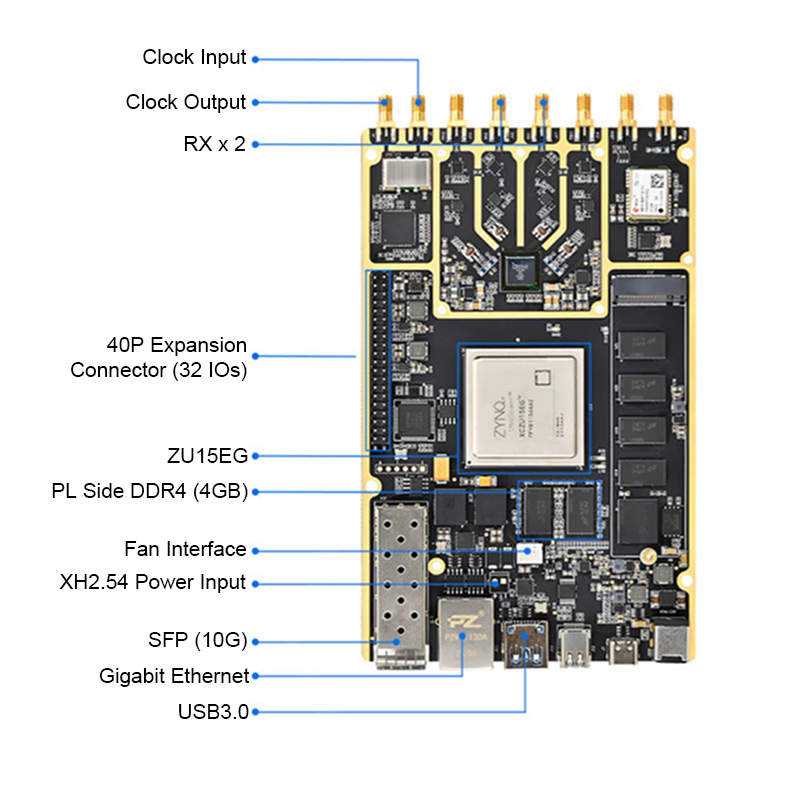

ZU15EG + Dual 4GB DDR4 + NVMe: Acquisition, Storage and Processing in One Platform
The PZSDR-P159 integrates the RF front end, FPGA processing, memory and storage into a single hardware platform.
* Zynq UltraScale+ MPSoC XCZU15EG
* Quad-Core Cortex-A53
* Dual-Core Cortex-R5F
* 4GB PS DDR4 + 4GB PL DDR4
* 32GB eMMC
* NVMe SSD interface
* 10G SFP+ high-speed interface
Seamless Integration with the ADI Open Software Ecosystem
* The PZSDR-P159 is designed to reduce development time by providing a software environment compatible with the ADI ecosystem.
Initial Code and Firmware
* Bare-metal test code templates
* ADRV9009-compatible firmware
* Interfaces designed to maintain compatibility with the ADI software workflow
ADI IIO Ecosystem
* The PZSDR-P159 can work with ADI IIO-oscilloscope and related host-side tools for signal visualization, spectrum monitoring and RF parameter adjustment.
libiio Development Support
* Host-side acquisition and processing applications can be developed based on libiio, with interface documentation provided for secondary development and system integration.
Complete Software Resources
* Software support covers the development chain from low-level hardware testing and firmware to host-side applications, helping developers move from hardware bring-up to application development more efficiently.
Core Hardware Configuration:
* ADRV9009
* 2T2R
* 75MHz-6GHz
* TX Bandwidth: Up to 450MHz
* RX Bandwidth: Up to 200MHz
* 22dBm
* 10G SFP+
* 16-bit/14-bit
* GPS/BeiDou
* NVMe
What Can This SDR Do?
200MHz Bandwidth, Six Broadband Application Scenarios
* Broadband Spectrum Full-Band Recording and Playback
* Weak Signal & Dynamic Range Measurement-Grade Research
* Broadband Radar Signal Simulation & Signal Simulation Generation
* 5G NR Wide Carrier Physical Layer Verification
* Frequency Agility & Cognitive Radio Experiments
* Laboratory Flagship Broadband Transceiver Platform
Typical Applications:
* Industrial Automation
* Outdoor Communication Base Stations
* Power Grid Monitoring
* Transportation Monitoring
* Phased-Array Radar
* Spectrum Monitoring
Basic Specifications:
* Processor Architecture Type: FPGA, For ARM + FPGA
* Expansion Slot Types: USB, 40-Pin GPIO, and GPIO
* Typical Application Domains: General Industry and Industrial
* Network & Interface Configuration: USB 3.0 Network Interface, Gigabit Ethernet (1Gbps), UART, and I/O
* Signal Bandwidth: TX 450MHz, RX 200MHz
* Bit Width: ADC 16-bit, DAC 14-bit
* DDR4: 4GB on PS side, 4GB on PL side
* Power Amplification: Both TX and RX support full-bandwidth, highly linear 22dBm
* Operating Temperature: -40°C to 85°C

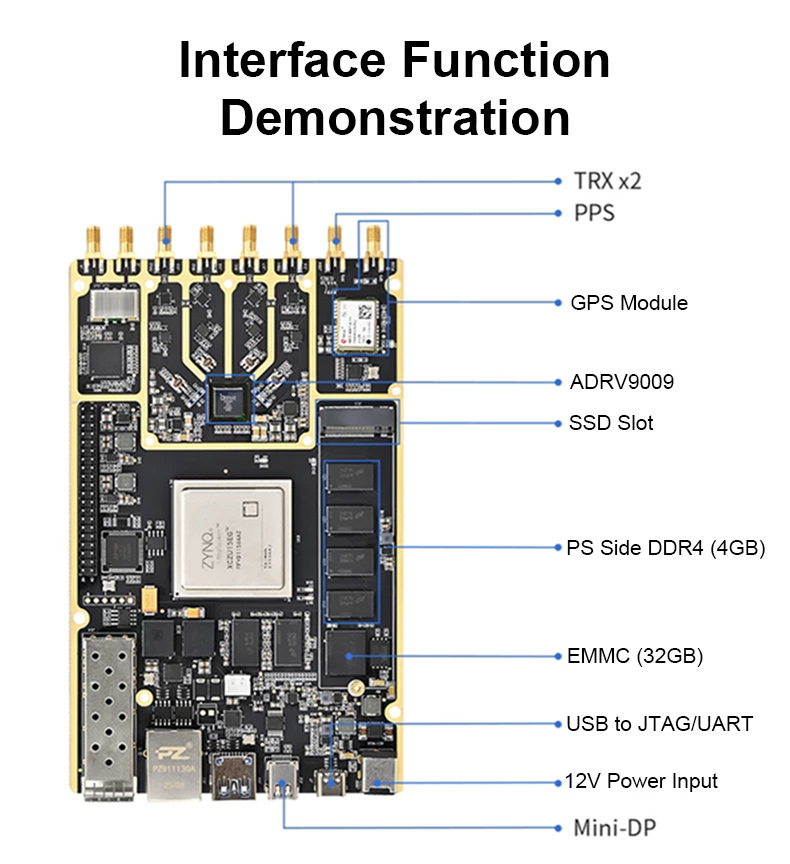

Product Parameters:
* Model: PZSDR-P159
* RF Transceiver: ADRV9009BBCZ
* Frequency Range: 75MHz-6GHz
* Bit Width: ADC 16bit, DAC 14bit
* Signal Bandwidth: TX 450MHz, RX 200MHz
* Power Amplifier: Both TX and RX support full-bandwidth high linearity 22dBm (Max transmit power 25dBm)
* Processor: XCZU15EG-2FFVB1156I
* Core Clock Speed: Quad-core Cortex-A53 for ARM (1.333GHz), Dual-core Cortex-R5F for ARM (533MHz)
* DDR4: PS side 4GB, PL side 4GB
* QSPI FLASH: 256Mb+256Mb
* EMMC: 32GB, stores startup files and user files
* RF Clock: 1-channel output, 1-channel input
* USB3.0: 1 channel
* Gigabit Ethernet: 1 channel
* Mini DP: 1 channel
* SSD (NVMe): 1 channel
* UART: 1 channel
* JTAG: 1 channel
* SD Card: 1 channel
* GPS: 1 channel
* Extended IO Quantity: 32
* Power Supply: 12V/3A
* Operating Temperature: -40°C to 85°C

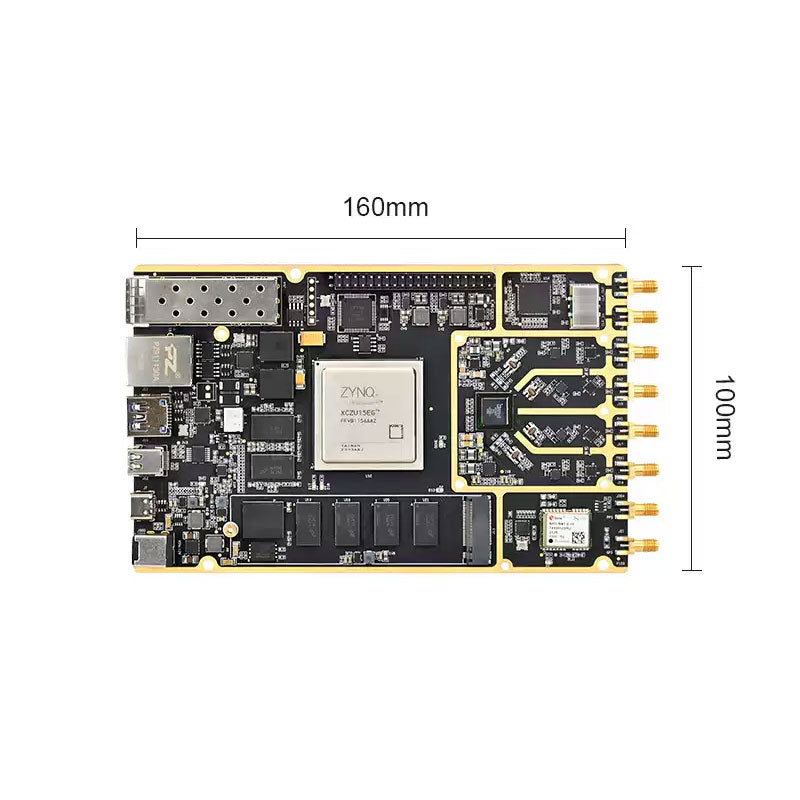

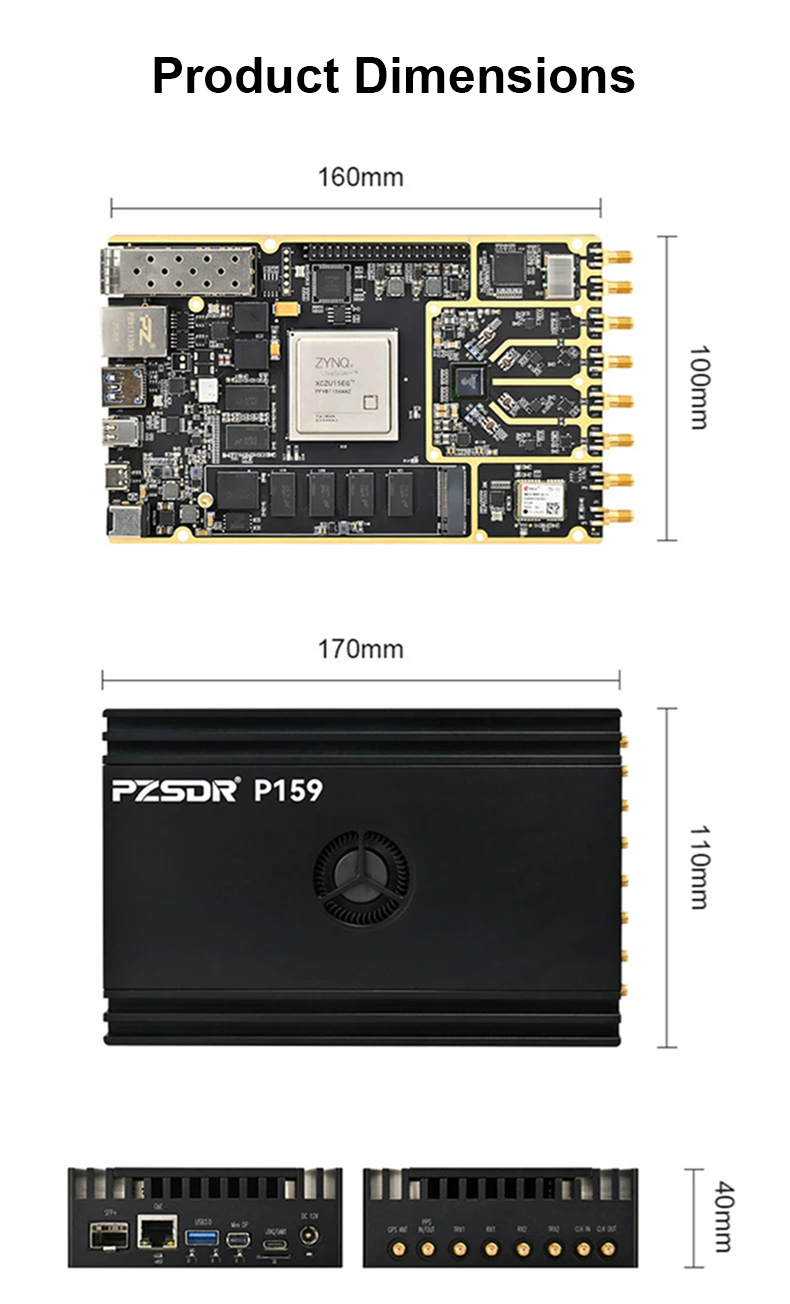

* Dimensions: Board: 160x100mm, Enclosure: 170x110mm
Packing List:
* 1 x Board
* 1 x Enclosure
* 1 x 12V/3A Power Adapter
* 1 x GPS Antenna
* 1 x Type-C Cable
* 8 x Adapter Cables
* 1 x Gigabit Ethernet Cable
* 4 x Dual-Band Rubber Antennas (2.4GHz/5.8GHz)
* 2 x Spring Antennas (100MHz-6GHz)
* 1 x 32GB SD Card
* 1 x SD Card Reader
Packaging Details:
* Package weight: 1.6kg
