  3. PZ7035-KFB-900 ZYNQ7035 FPGA Development Board XC7Z035-2FFG900I 275K Logic Cells SFP and Dual Ethernet Ports
By PZ

PZ7035-KFB-900 ZYNQ7035 FPGA Development Board XC7Z035-2FFG900I 275K Logic Cells SFP and Dual Ethernet Ports

$648.00 - $1,390.00
配送料はチェックアウト時に計算されます。
Kit Type: Development Board Only
$648.00
$648.00
Availability: Out of stock
SKU: 104718
Tags:
$648.00
$648.00
Model Comparison:
PZ7035-KFB-900:
* Main Controller: XC7Z035-2FFG900I (Dual-core Cortex-A9 for ARM at 800MHz, Speed Grade 2)
* Industrial Grade: Operating temperature range from -40°C to 85°C
* FPGA Logic Resources: 275K Logic Cells, 171900 LUTs, 343800 Flip-Flops
* Processing & Memory: 900 DSP Slices, 17.6Mb Block RAM
* System Memory: 2GB DDR3 Total (1GB PS Side/1GB PL Side)
* Storage: 256Mb QSPI Flash + 8GB eMMC for boot and user files

PZ7045-KFB-900:
* Main Controller: XC7Z045-2FFG900I (Dual-core Cortex-A9 for ARM at 800MHz, Speed Grade 2)
* Industrial Grade: Operating temperature range from -40°C to 85°C
* FPGA Logic Resources: 350K Logic Cells, 218600 LUTs, 437200 Flip-Flops (Upgraded Logic Capacity)
* Processing & Memory: 900 DSP Slices, 19.2Mb Block RAM
* System Memory: 2GB DDR3 Total (1GB PS Side/1GB PL Side)
* Storage: 256Mb QSPI Flash + 8GB eMMC for boot and user files

PZ7100-KFB-900 (High Performance):
* Main Controller: XC7Z100-2FFG900I (Dual-core Cortex-A9 for ARM at 800MHz, Speed Grade 2)
* Industrial Grade: Operating temperature range from -40°C to 85°C
* FPGA Logic Resources: 444K Logic Cells, 277400 LUTs, 554800 Flip-Flops (Maximum Logic Density)
* Processing & Memory: 2020 DSP Slices, 26.5Mb Block RAM
* System Memory: 2GB DDR3 Total (1GB PS Side/1GB PL Side)
* Storage: 256Mb QSPI Flash + 8GB eMMC for boot and user files

Available Kit Options:
* Development Board Only
* ADDA Kit
* Binocular Camera Kit
* LCD Kit
* SSD Kit
* High-Speed ADC Kit
* EtherCAT Kit
* Classic Kit
* Deluxe Kit
* Premium Kit

Features:
* ZYNQ Development Board
* Heterogeneous Architecture for Dual-core ARM + FPGA
* PCIe x8 + 4-channel SFP Optical Ports
* Dual Gigabit Ethernet Ports (PS/PL Dual-side)
* 1GB+1GB DDR3 and 8GB eMMC
* Integrated Downloader, Supports PYNQ

Packing List (Varies by Selected Kit):

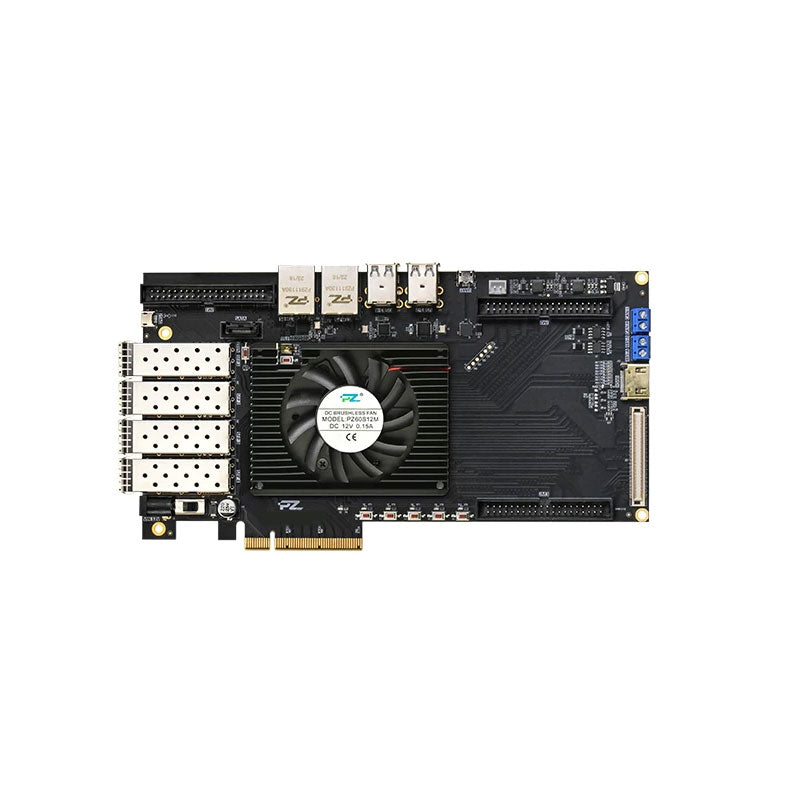

Development Board Only:
* 1 x Development Board
* 1 x 12V/3A Power Adapter
* 2 x Micro USB Cables
* 1 x Heatsink (with fan)
* 1 x 32G SD Card
* 1 x SD Card Reader

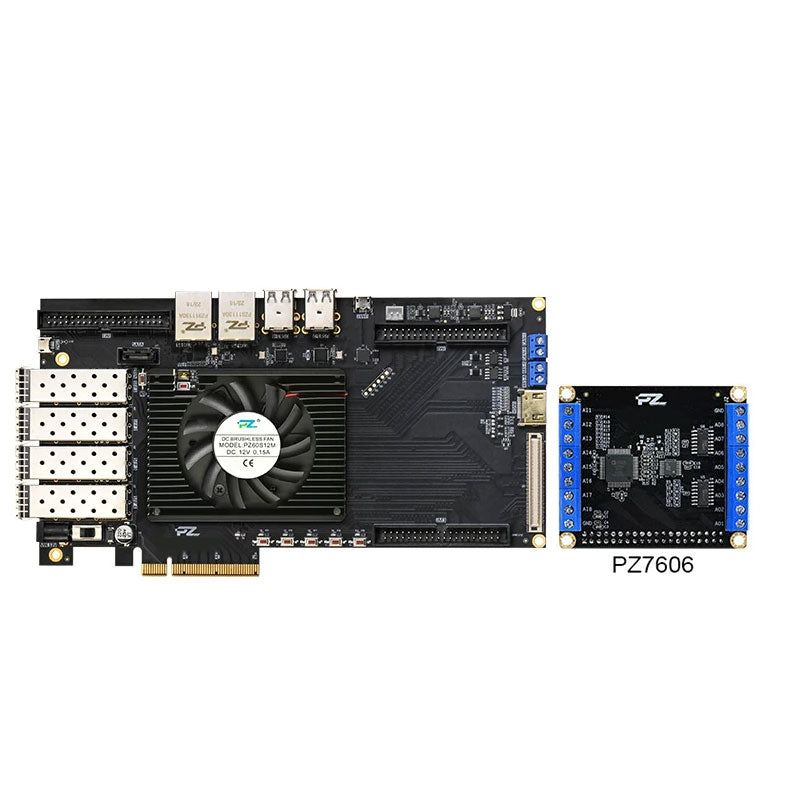

ADDA Kit:
* 1 x Development Board
* 1 x 12V/3A Power Adapter
* 2 x Micro USB Cables
* 1 x Heatsink (with fan)
* 1 x 32G SD Card
* 1 x SD Card Reader
* 1 x PZ7606

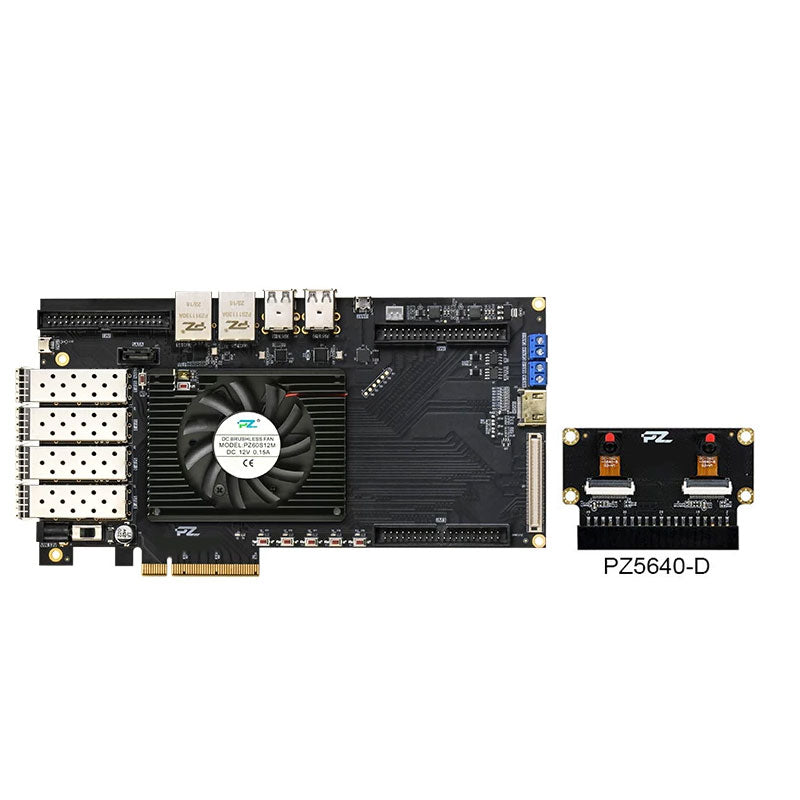

Binocular Camera Kit:
* 1 x Development Board
* 1 x 12V/3A Power Adapter
* 2 x Micro USB Cables
* 1 x Heatsink (with fan)
* 1 x 32G SD Card
* 1 x SD Card Reader
* 1 x PZ5640-D

LCD Kit:
* 1 x Development Board
* 1 x 12V/3A Power Adapter
* 2 x Micro USB Cables
* 1 x Heatsink (with fan)
* 1 x 32G SD Card
* 1 x SD Card Reader
* 1 x PZ-LCD430

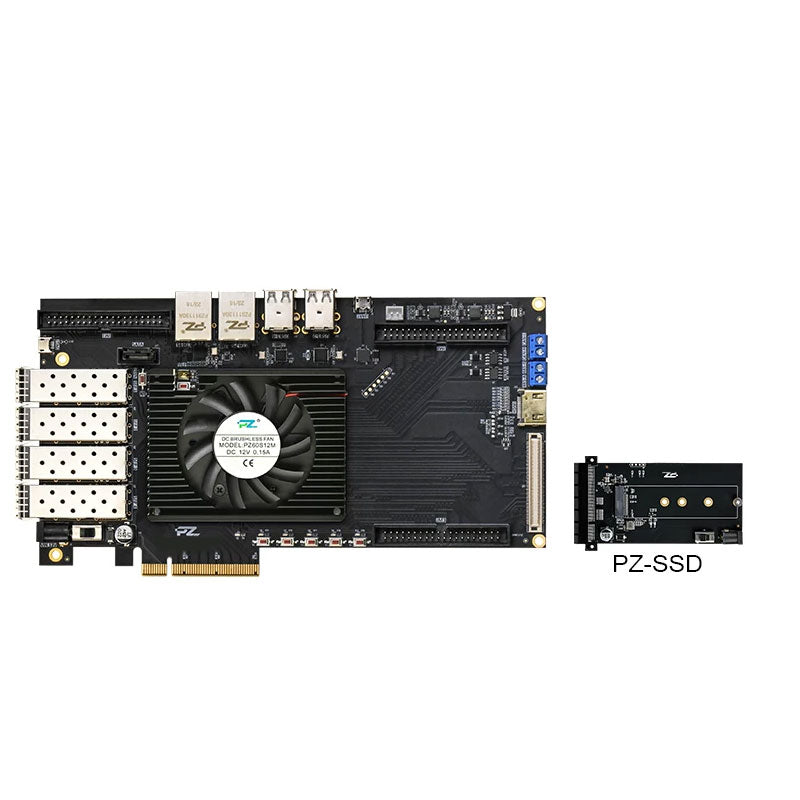

SSD Kit:
* 1 x Development Board
* 1 x 12V/3A Power Adapter
* 2 x Micro USB Cables
* 1 x Heatsink (with fan)
* 1 x 32G SD Card
* 1 x SD Card Reader
* 1 x PZ-SSD

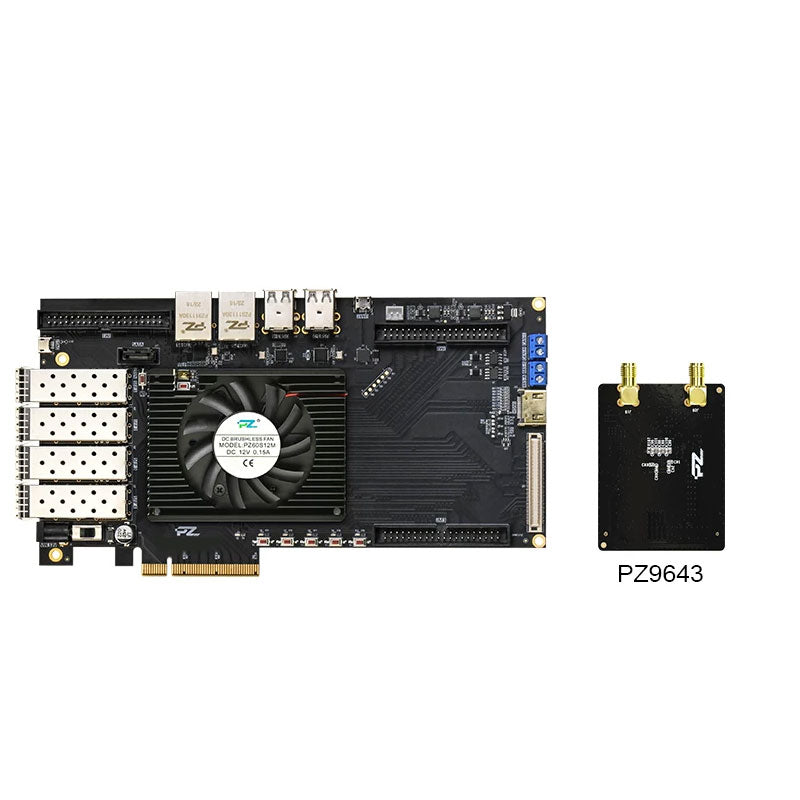

High-Speed ADC Kit:
* 1 x Development Board
* 1 x 12V/3A Power Adapter
* 2 x Micro USB Cables
* 1 x Heatsink (with fan)
* 1 x 32G SD Card
* 1 x SD Card Reader
* 1 x PZ9643

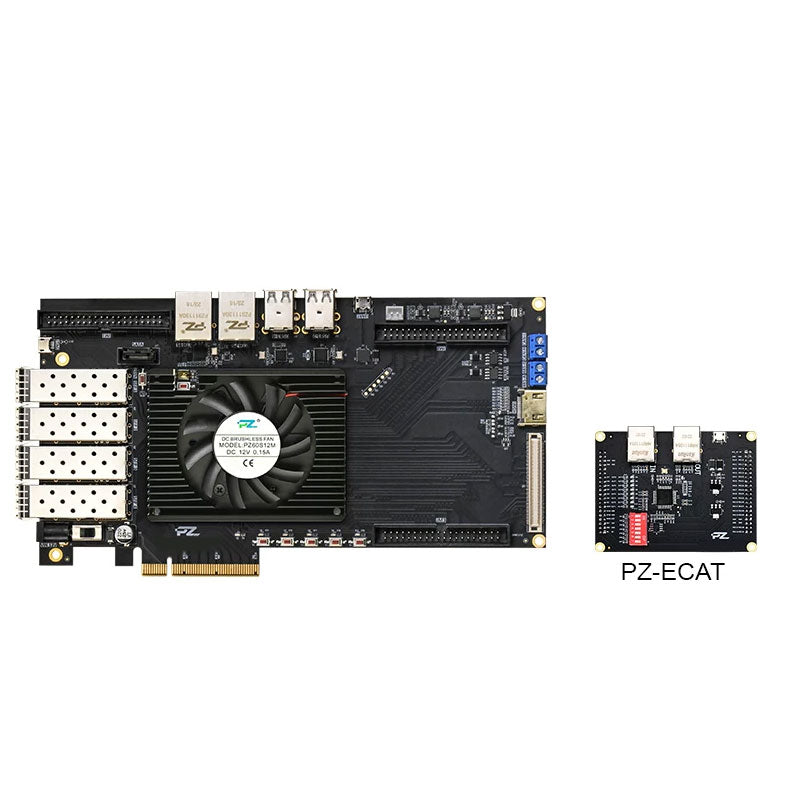

EtherCAT Kit:
* 1 x Development Board
* 1 x 12V/3A Power Adapter
* 2 x Micro USB Cables
* 1 x Heatsink (with fan)
* 1 x 32G SD Card
* 1 x SD Card Reader
* 1 x PZ-ECAT58100

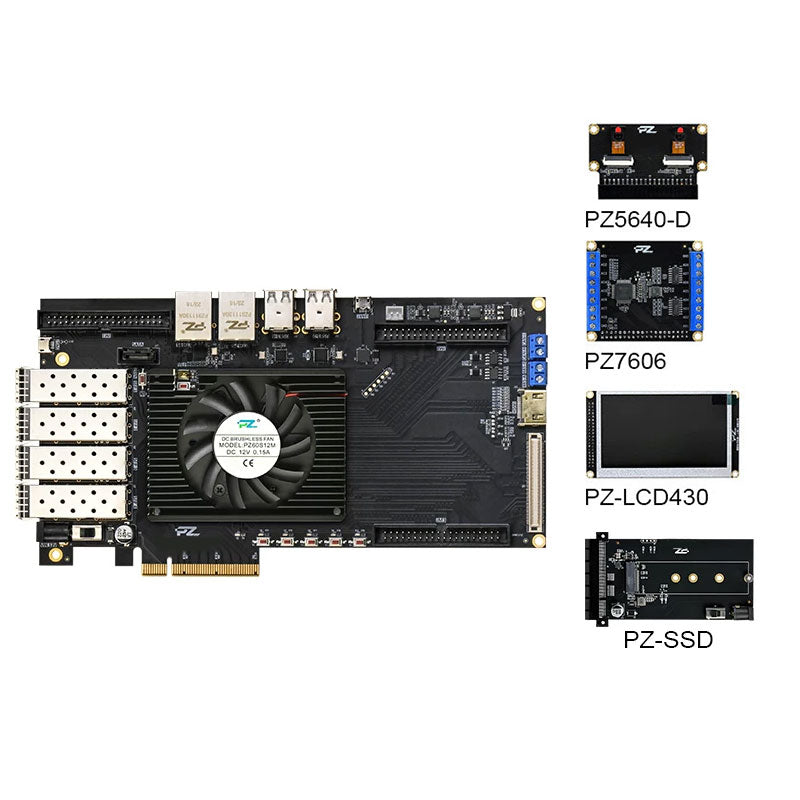

Classic Kit:
* 1 x Development Board
* 1 x 12V/3A Power Adapter
* 2 x Micro USB Cables
* 1 x Heatsink (with fan)
* 1 x 32G SD Card
* 1 x SD Card Reader
* 1 x PZ5640-D
* 1 x PZ7606
* 1 x PZ-LCD430
* 1 x PZ-SSD

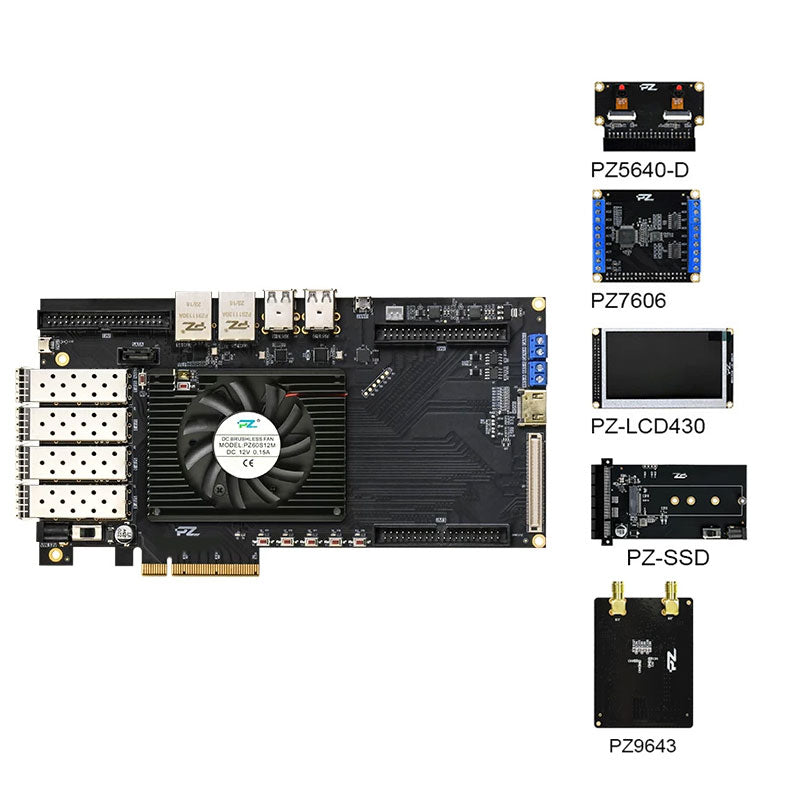

Deluxe Kit:
* 1 x Development Board
* 1 x 12V/3A Power Adapter
* 2 x Micro USB Cables
* 1 x Heatsink (with fan)
* 1 x 32G SD Card
* 1 x SD Card Reader
* 1 x PZ5640-D
* 1 x PZ7606
* 1 x PZ9643
* 1 x PZ-LCD430
* 1 x PZ-SSD

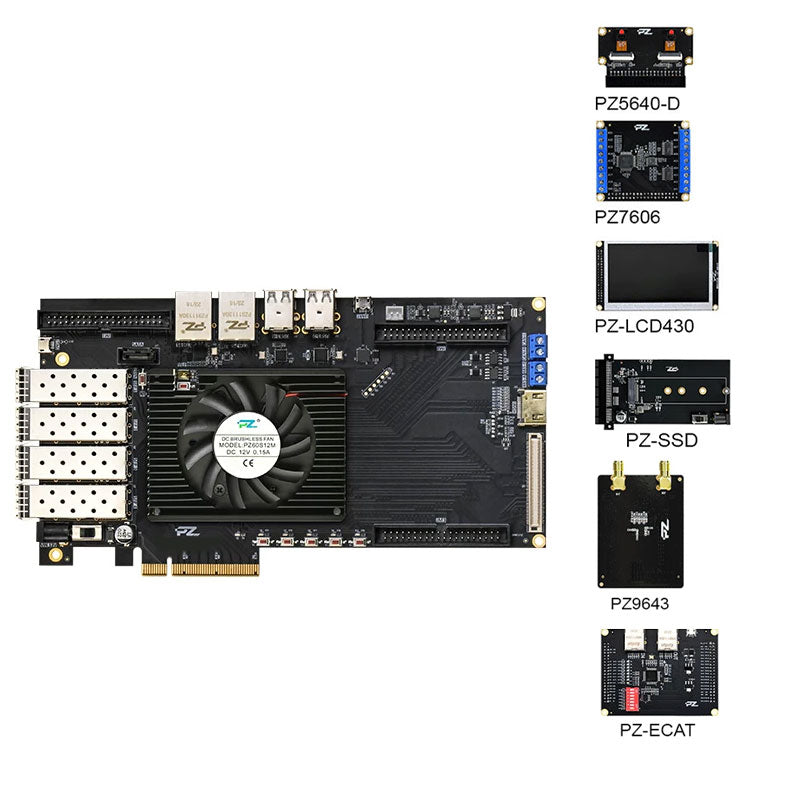

Premium Kit:
* 1 x Development Board
* 1 x 12V/3A Power Adapter
* 2 x Micro USB Cables
* 1 x Heatsink (with fan)
* 1 x 32G SD Card
* 1 x SD Card Reader
* 1 x PZ5640-D
* 1 x PZ7606
* 1 x PZ-ECAT58100
* 1 x PZ9643
* 1 x PZ-LCD430
* 1 x PZ-SSD

Package Weight:
* Development Board Only: 0.85kg
* ADDA Kit: 0.9kg
* Binocular Camera Kit: 0.9kg
* LCD Kit: 0.9kg
* SSD Kit: 0.9kg
* High-Speed ADC Kit: 0.9kg
* EtherCAT Kit: 0.9kg
* Classic Kit: 1.0kg
* Deluxe Kit: 1.1kg
* Premium Kit: 1.2kg


Click to Learn More: Core Board


Click to Learn More about the Optional Daughter Cards:
