Di HAMGEEK

HamGeek ATS25max-Decoder Si4732 Radio Full Band Radio Receiver Official Version w/ Activation Code

Prezzo di listino $92.00
Prezzo di listino Prezzo scontato $92.00
Spese di spedizione calcolate al check-out.
Availability: 2000 in magazzino
SKU: 83953
Prezzo di listino $92.00
Prezzo di listino Prezzo scontato $92.00

Attention:
- Key has been activated.
- Suggestion: WiFi is very power -consuming. Use only when activating keys. It usually only shows the date, time, please close it when you go out to save battery electricity.
- How to view key: Open the panel, click "Click Info" next to it, and rotate as shown in the image above. You can see the 12-digit key. If necessary, please contact us. The key will be kept in the machine for a long time, and there is no need to worry about firmware updates. There is no code at this point!

Features:
- Added CW, RTty F4 F8 decoding function and four audio spectrum
- ChangeLog FW 4.16 Air
- Firmware H-RADIO 4.16 AIR
- Optimization of the memory usage of the microcontroller has been carried out to speed up the interface
- Removed the display of the RSSI/SNR signal in the form of a waterfall for the ILI9341 screen
- Fixed a frequency display error for the ILI9341 screen in FM and CB mode
- Fixed audio spectrum output error for the ILI99341 screen
- Improved accuracy of frequency display on the audio spectrum
- Added different modes of operation of the beeper for different modifications
- Fixed a frequency display error in the list of cities
- Fixed the error of displaying the decoder screen in CB mode
- Fixed the error of displaying the clock in the medium and long wave ranges in the synchro mode
- Added FT8 and FT4 decoder
- Changed the display of the DIGI decoding
- Added scrolling of the DIGI decoder buffer with saving decoded data to the decoder.log file in SPIFFS
- Fixed screen scrolling errors in SCAN
- Fixed the error of not muting the sound when starting a scan in SCAN for SYNC modulation
- Fixed the error of getting time via RDS
- Added support for Bluetooth, LNA and a function button for the ATS120 receiver
- Added Bluetooth on indicator, encoder lock and antenna options for all receiver modifications
- Added a quick access panel to Bluetooth settings, encoder lock and antenna options by clicking on the corresponding indicator
- Added SNR definition for SSB modulation based on spectrum analyzer data in the presence of a decoder
- Added the ability to mirror the screen

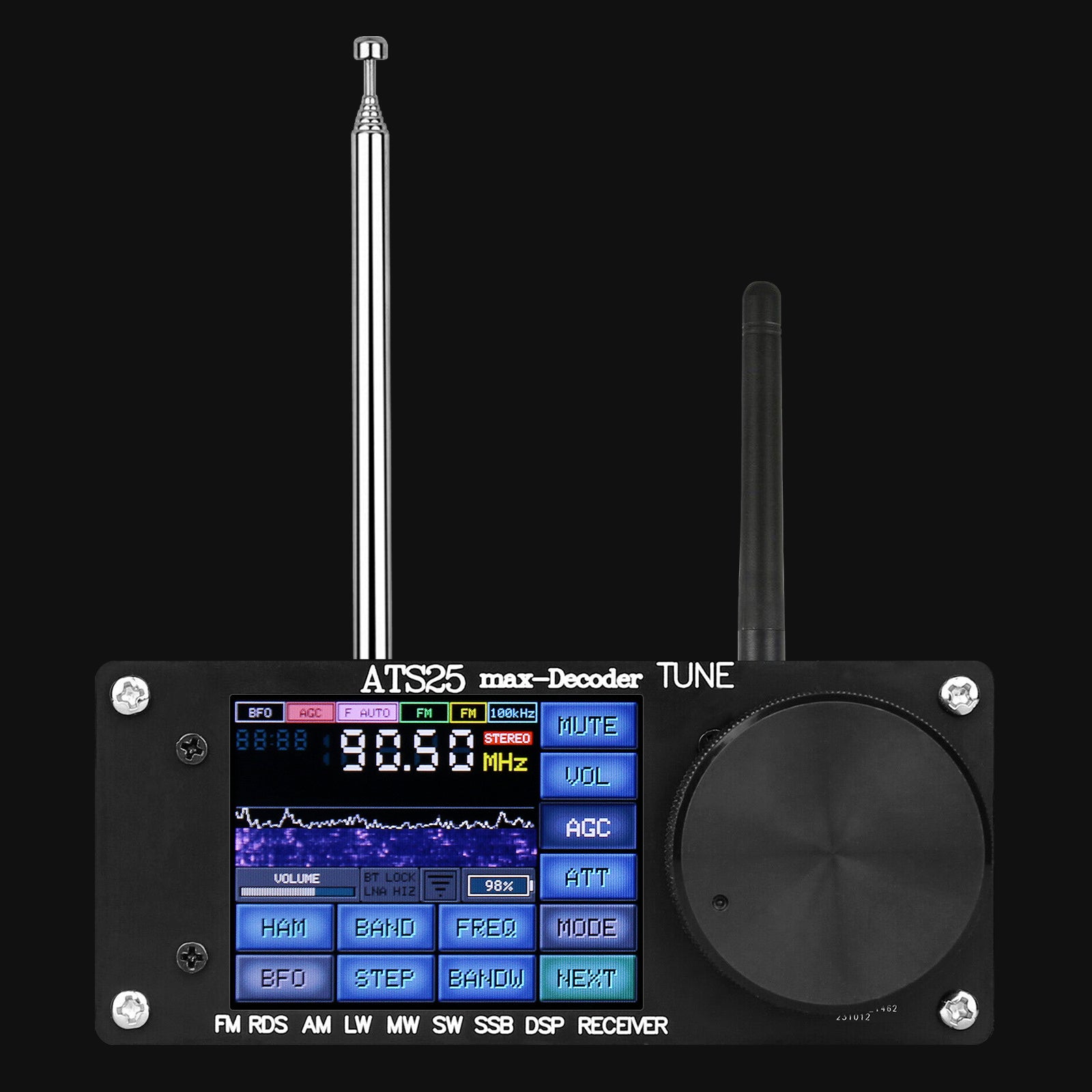

- SI4732 full-band DSP radio receiver FM LW (MW and SW) and SSB with 2.4 "touch screen

Product Parameters:
- Shell material: aluminum alloy
- 3.7V /3000mA built-in lithium battery
- Type-C charging interface and maximum 1.2A charging current
- Type-c interface upgrade solution
- Supports 3.5mm stereo audio output
- Forian interface BNC
- Supports 3.5mm audio jack FM antenna
- 2.4 -inch touch screen
- Outage audio power 1.5W
- Product size: 120 x 115 x 48mm/4.7 x 4.5 x 1.9" (excluding the size of protruding part)

Frequency Range:
- FM: 64-108MHz/RDS function
- LW: 153-500KHz
- MW: 520-1710kHz
- SW: 1730-30000KHz
- SSB: 17030kHz

Functions:
1. With a 2.4-inch touch screen
2. Supports broadcast search
3. Supports digital keyboard direct input frequency
4. Supports HAM band fast channel
5. Supports AM bandwidth: 1-6KHz
6. Supports SSB bandwidth: 0.5-4.0KHz

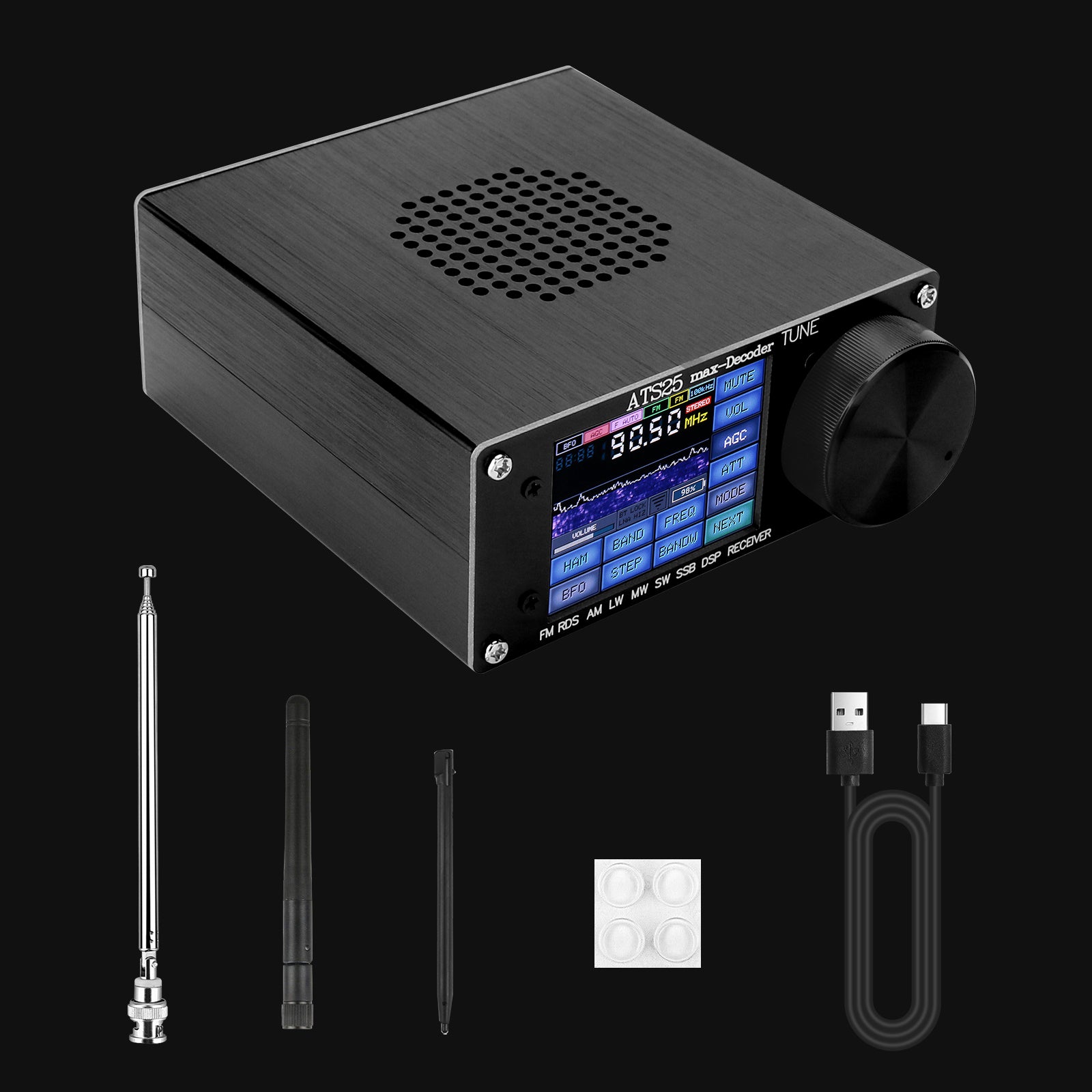

Package Included:
- 1 x Set of Radio Receiver

Note:
- We have obtained the author's authorization and this product comes with an activation code. This is a genuine version.
