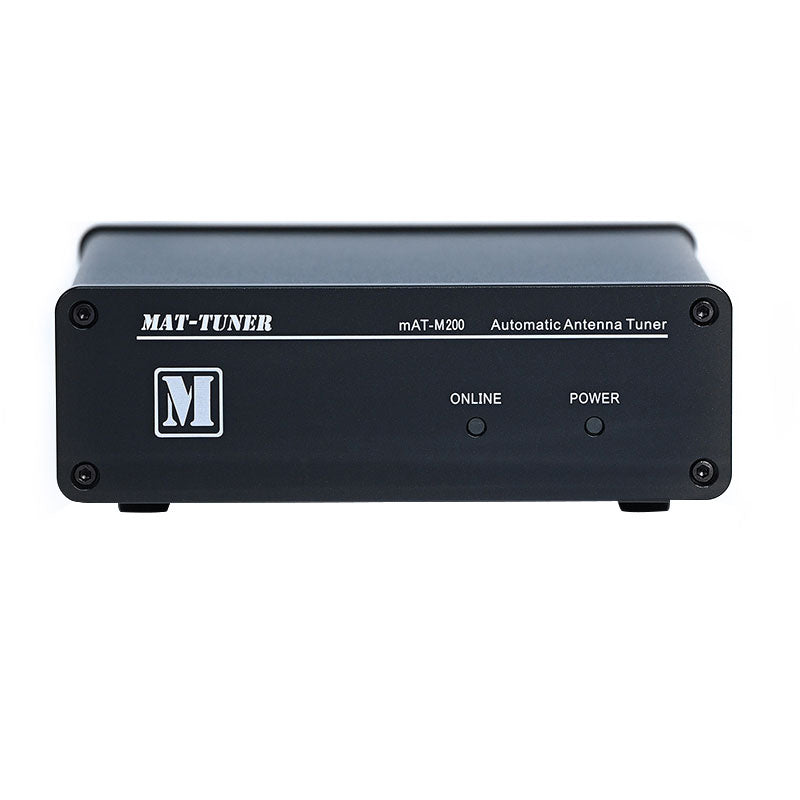

HamGeek mAT-M200 1.8-54MHz Automatic Antenna Tuner Supports 200W SSB & 100W Digital Mode for ICOM/KENWOOD Transmitters

Description:
HamGeek mAT-M200 is specially designed for ICOM and KENWOOD brand transmitters with RF power not higher than 200W (SSB). This tuner is also a great choice for users who like to operate the transmitter in digital modes such as FT8, CW and RTTY. For most tuners, it is not possible to withstand 100 watts of digital mode RF signals entering the tuner. The mAT-M200 allows up to 100 watts of digital mode RF signals to pass through the tuner.

HamGeek mAT-M200 has a working frequency range of 1.8-54MHz and a maximum allowable RF power of 200 watts. As an external antenna tuner, it is connected to the ICOM transmitter via the control cable mAT-CI or to the KENWOOD transmitter via the mAT-CK cable. The tuner comes with mAT-CI cable by default. The transmitter supplies power to the tuner through this cable, communicates with it and controls the operation of the tuner. The tuner does not require additional power supply. The tuner is compatible with ICOM and KENWOOD tuners, and users can easily control the tuner using the [TUNE] or [AT] buttons on the panel of the radio equipment. This makes the operation of the tuner very convenient.

For ICOM devices, the tuner only works with transmitters with a standard ICOM 4-pin tuner socket. If your transmitter doesn't have this socket, you won't be able to use it. If your transmitter has a non-standard 4pin ICOM tuner socket, such as IC-M710, M802, IC-F7000, IC-F8101, you will have to modify the mAT-CI cable so that it can be connected to the TUNER of these transmitters cable socket before you can use this tuner. The same goes for KENWOOD devices, but their TUNER socket is 6-pin. When the tuner is powered on and started, it will detect whether it is currently linked to an ICOM device or a KENWOOD device and automatically match it.

It will tune dipoles, verticals, Yagis, or virtually any coax-fed antenna. It will match an amazing range of antennas and impedance, far greater than some other tuners you may have considered, including the built-in tuners on many radios.

Specifications:
- Frequency range: 1.8-54MHz
- Maximum input power: 200W (SSB), 100W (DATA mode)
- Tuning time: maximum 5 seconds (full tuning); 0.1 seconds (memory tuning)
- Number of memories: 16000
- Usable temperature: -10℃ to +60℃ (14℉ to 140℉)
- Product size: 180 x 142 x 51mm/7.1 x 5.6 x 2.0 inches
- Net weight: 830g/29.3oz

Package Included:
- 1 x HamGeek Antenna Tuner
- 1 x mAT-CY Data Cable
- 1 x User Manual

Precautions:
- Do not plug or unplug cables with power on.
- Please take waterproof measures for outdoor use.
- Please take proper grounding measures.
