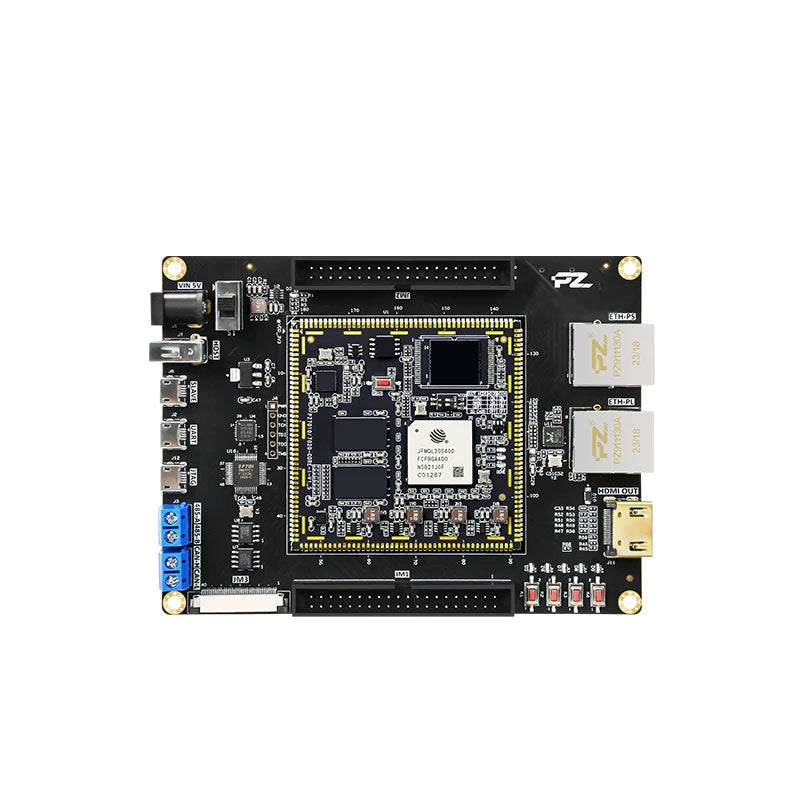

  3. PZ7020F-KFB FPGA Development Board Fudan Micro PSoC7000 JFMQL20S400 85K Logic Cells 1GB DDR3
Por PZ

PZ7020F-KFB FPGA Development Board Fudan Micro PSoC7000 JFMQL20S400 85K Logic Cells 1GB DDR3

$748.00 - $899.00
Los gastos de envío se calculan en la pantalla de pago.
Kit: Development Board Only
$748.00
$748.00
Availability: Agotado
SKU: 105525
Tags:
$748.00
$748.00

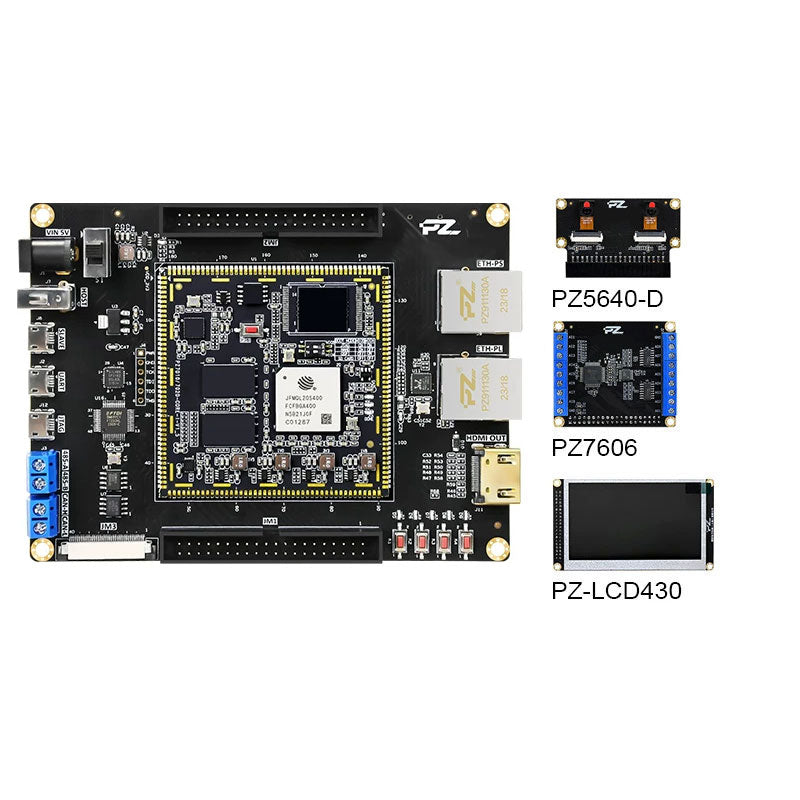

Available Kit Options:
* Development Board Only
* ADDA Kit
* Binocular Camera Kit
* LCD Kit
* Classic Kit

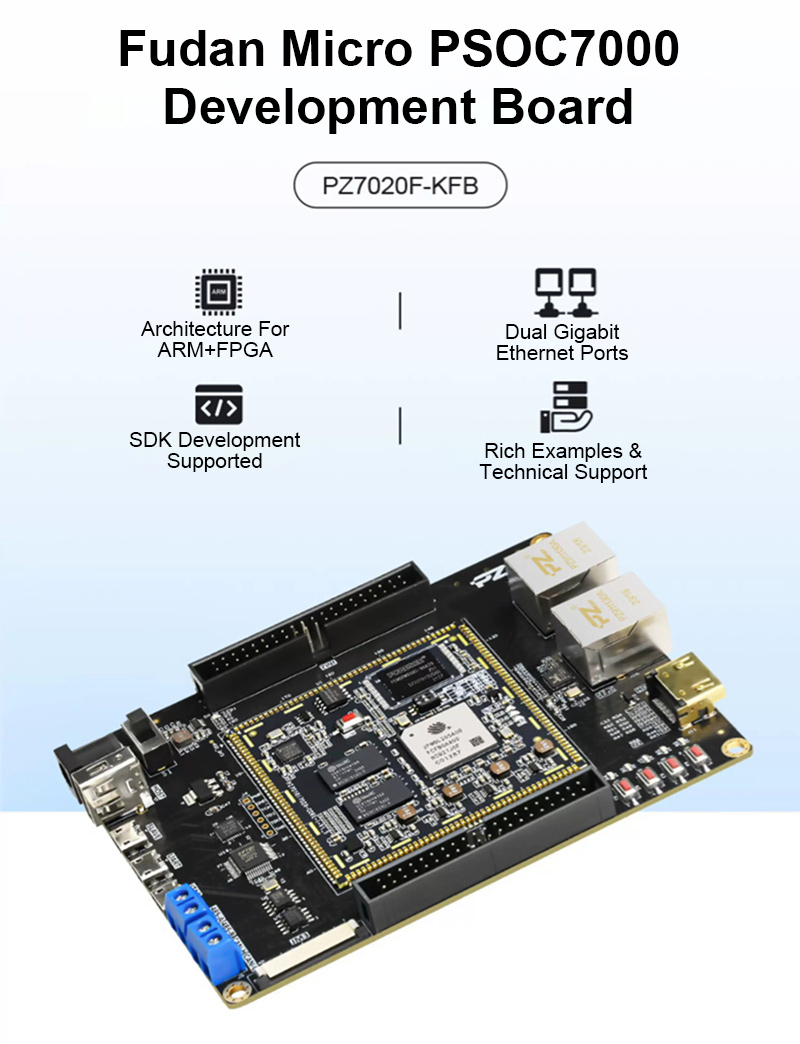

Features:
* Fudan Micro PSOC7000 Development Board
* Processor Architecture For ARM+FPGA
* Dual Gigabit Ethernet Ports
* SDK Development Supported
* HDMI-Compatible Output
* Integrated Downloader
* Rich Examples & Technical Support

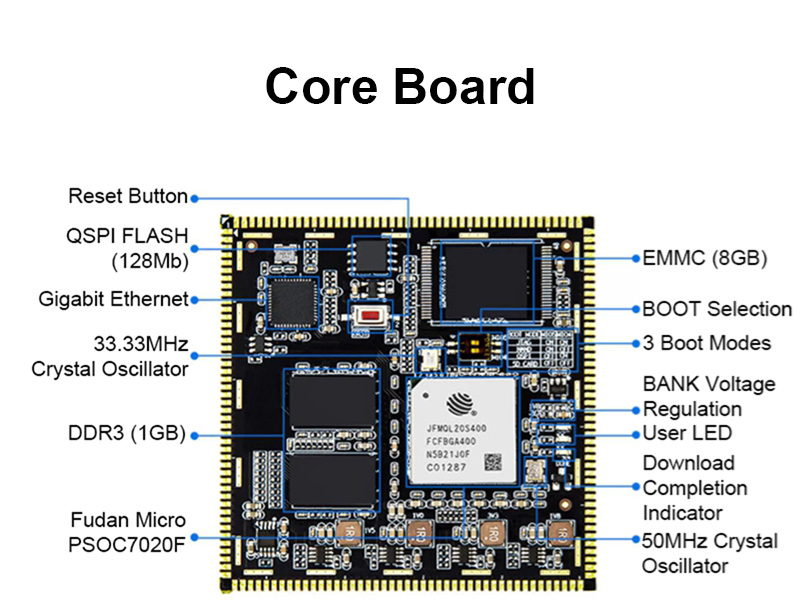

Development Board Main Parameters:
* Development Board: PZ7020F-KFB
* Main Controller: JFMQL20S400
* Core: Quad-core Cortex-A7 for ARM
* Speed Grade: Grade 2
* Temperature Grade: Industrial Grade (-40°C to 85°C)
* Logic Cells: 85K
* LUTs: 53200
* Flip-Flops: 106400
* DSP Slices: 220
* BLOCK RAM: 4.9Mb
* DDR3: 1GB
* QSPI FLASH: 128Mb
* EMMC: 8GB
* User LED: 2 Channels
* Boot Mode: JTAG/QSPI/SD, selected via onboard DIP switch
* PS MIO: 24
* PL IO: Total 118 single-ended; of which 70 IO level fixed 3.3V, 48 IO level 1.8/2.5/3.3V adjustable (default 3.3V)
* Crystal Oscillator: 1 single-ended 33.3333MHz crystal oscillator for PS and 1 single-ended 50MHz crystal oscillator for PL
* Core Board Size: 61mm x 61mm

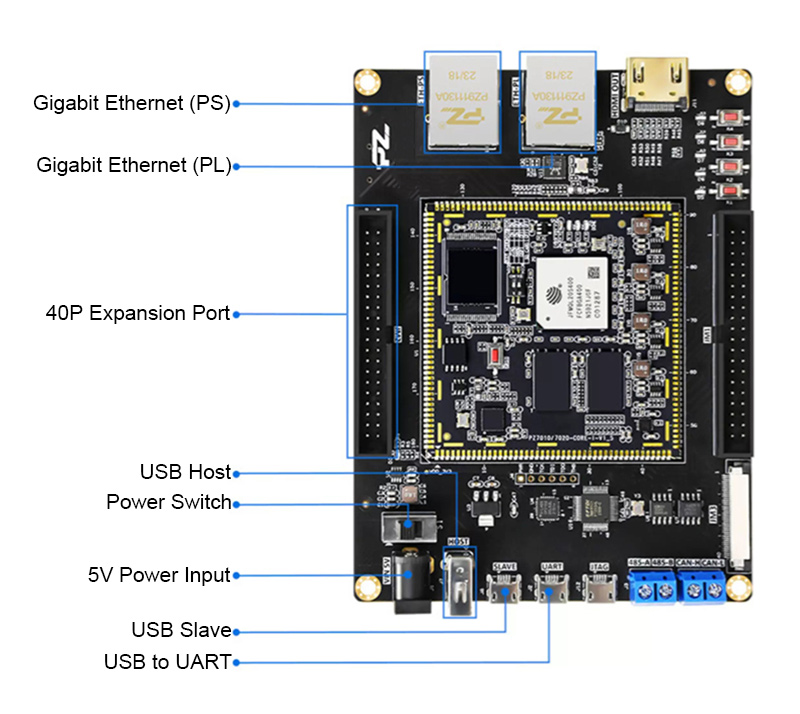

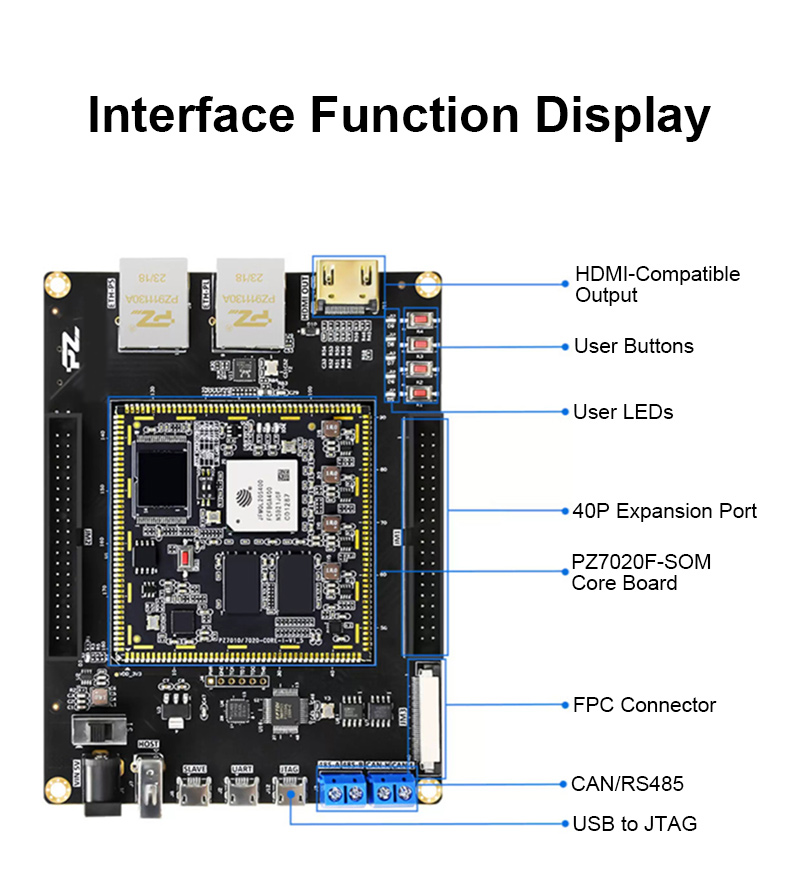

Interfaces and Functions:
* Integrated JTAG Downloader: 1 Channel
* UART/RS485/CAN: 1 Channel/1 channel/1 channel
* SD Card Interface: 1 Channel
* USB2.0 Host/Slave: 1 Channel/1 channel
* Gigabit Ethernet: PS side 1 channel and PL side 1 channel
* HDMI-Compatible: 1-channel HDMI-compatible output
* LED, Buttons: 5 LEDs, 4 Buttons
* 40P FPC Expansion Port: 24 single-ended signals/12 pairs differential signals
* Power Supply/Current: 5V/1A

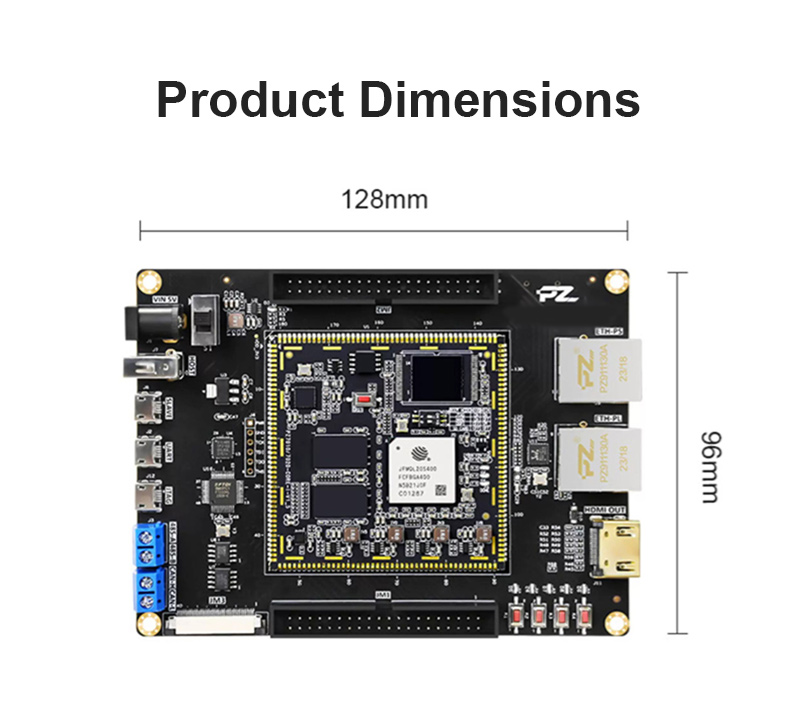

* Development Board Size: 128mm x 96mm
* Development Board Process: Matte black, immersion gold
* 2x 40P Expansion Ports: Total 56 single-ended signals/27 pairs differential signals; 2x 40P 2.54mm pitch expansion ports for connecting various Puzhi modules (AD/DA, binocular camera, 4.3-inch TFT LCD screen, etc.); expansion ports include 1x 5V power supply, 1x 3.3V power supply, 6x GND, and 32x IO ports

More Information:
* Processor Architecture: For ARM + FPGA, FPGA
* Expansion Interface: 40-Pin GPIO, USB, GPIO, and HDMI-Compatible/VGA
* Operating System Support: Linux
* Typical Applications: Embedded Hardware, IoT, Energy & Environment, 51 MCU Learning, and Consumer Electronics
* Network Interfaces: RS485, UART, I/O, Type-C, and USB 2.0
* Compatible Expansion Module: 1 Module

Packing List (Varies by Selected Kit):
Development Board Only:
* 1 x Development Board
* 1 x 5V/1A Power Adapter
* 2 x Micro USB Cables
* 1 x 8G SD Card
* 1 x SD Card Reader
* 1 x Downloader
* 1 x ARM Emulator

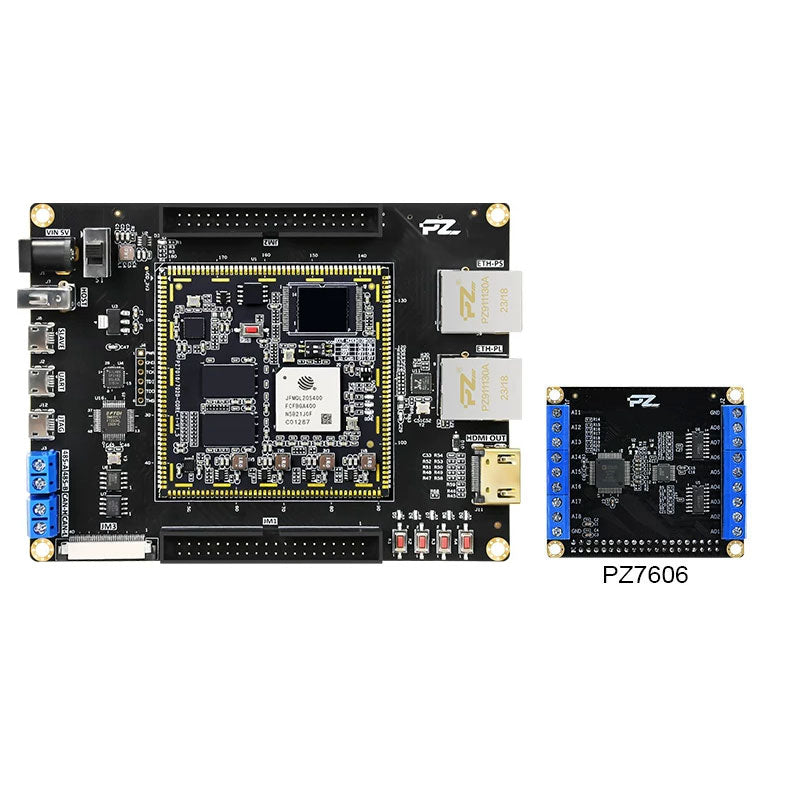

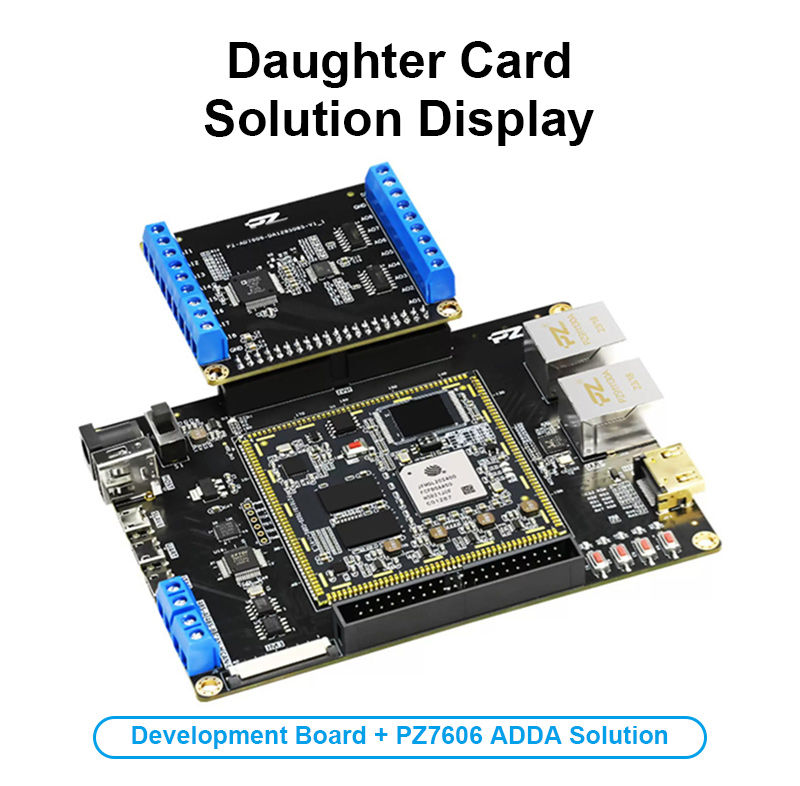

ADDA Kit:
* 1 x Development Board
* 1 x 5V/1A Power Adapter
* 2 x Micro USB Cables
* 1 x 8G SD Card
* 1 x SD Card Reader
* 1 x Downloader
* 1 x ARM Emulator
* 1 x PZ7606 AD7606 8CH 200KSPS ADC Module

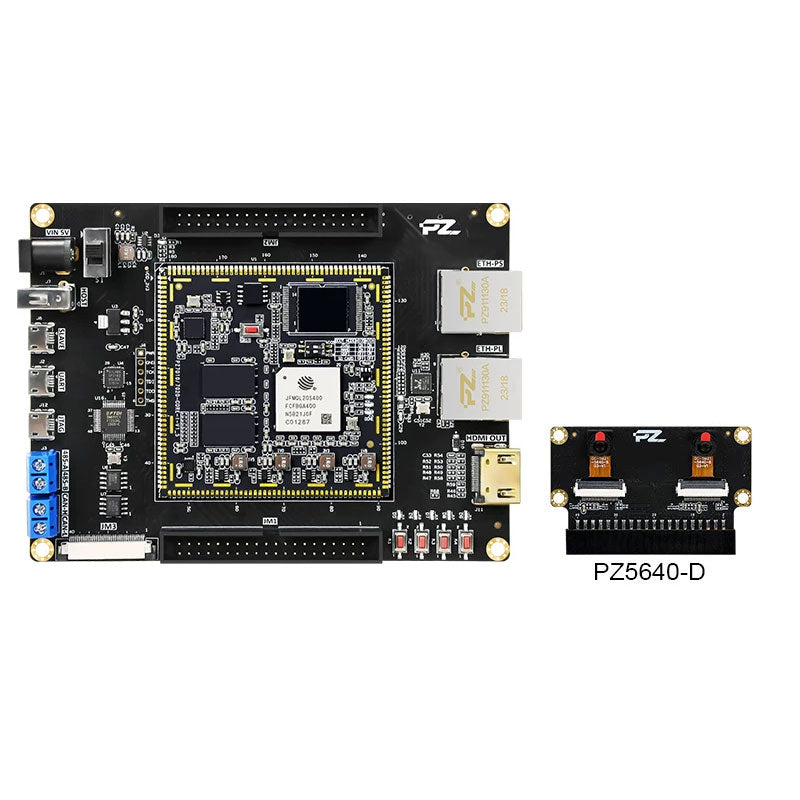

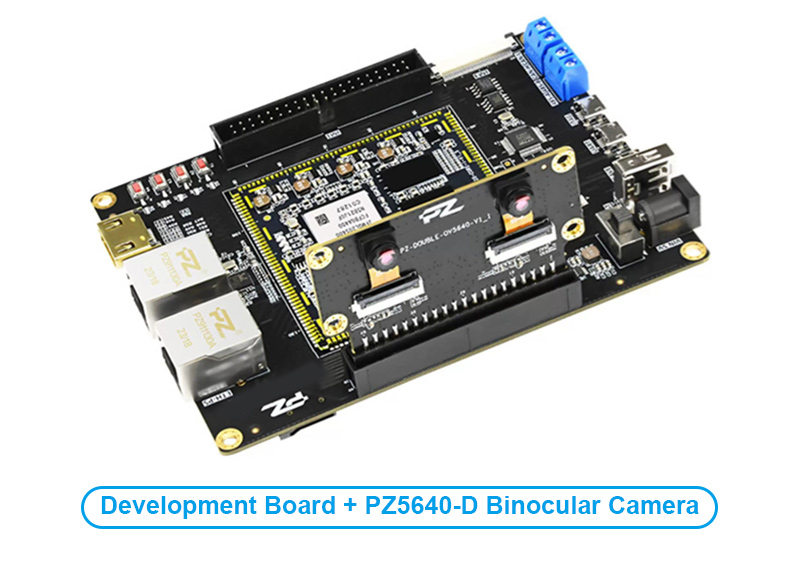

Binocular Camera Kit:
* 1 x Development Board
* 1 x 5V/1A Power Adapter
* 2 x Micro USB Cables
* 1 x 8G SD Card
* 1 x SD Card Reader
* 1 x Downloader
* 1 x ARM Emulator
* 1 x PZ5640-D OV5640 5MP Binocular Camera

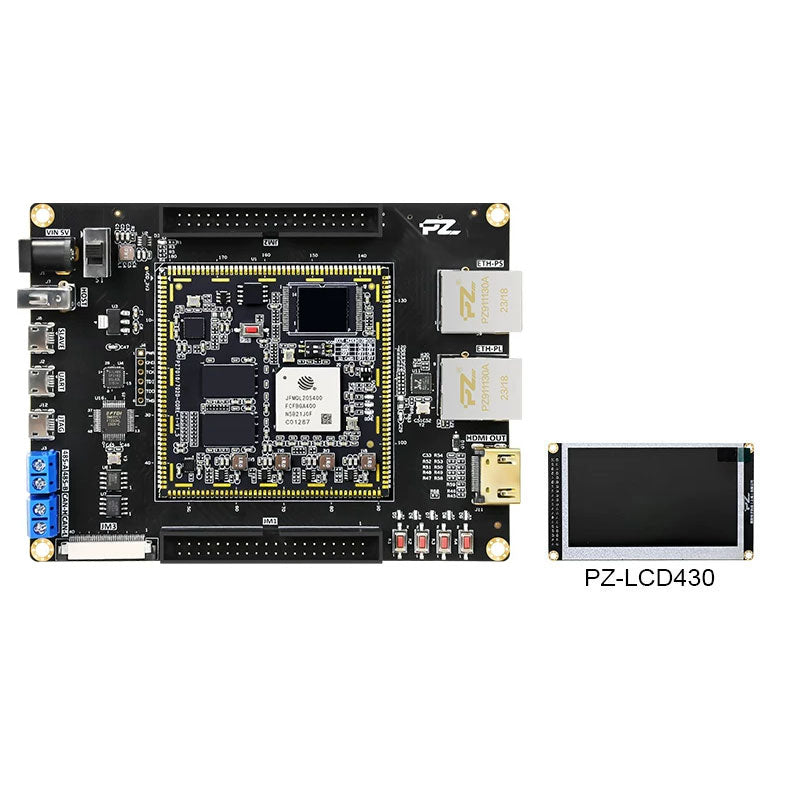

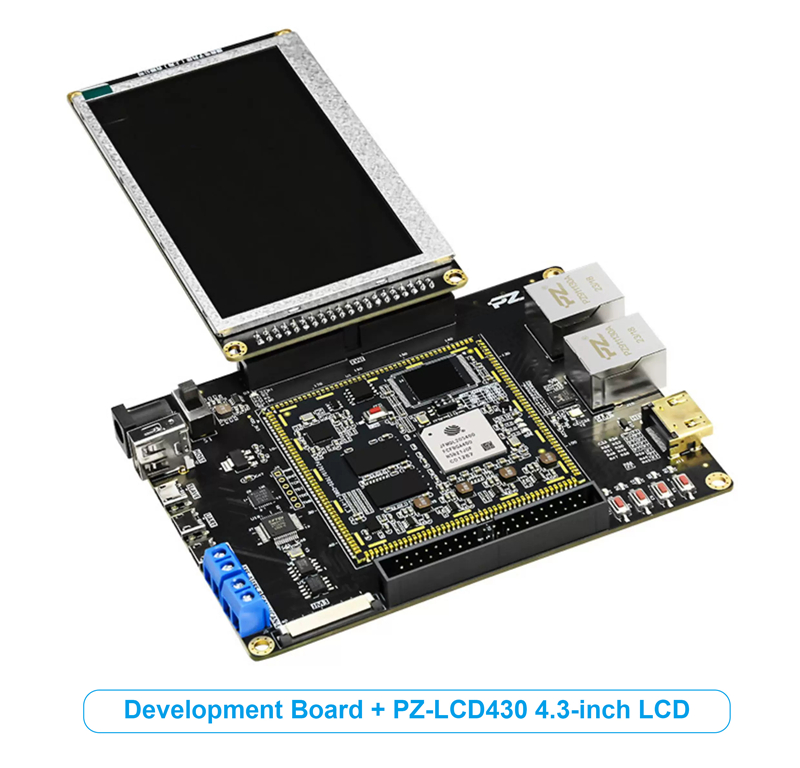

LCD Kit:
* 1 x Development Board
* 1 x 5V/1A Power Adapter
* 2 x Micro USB Cables
* 1 x 8G SD Card
* 1 x SD Card Reader
* 1 x Downloader
* 1 x ARM Emulator
* 1 x PZ-LCD430 4.3-Inch TFT LCD Display

Classic Kit:
* 1 x Development Board
* 1 x 5V/1A Power Adapter
* 2 x Micro USB Cables
* 1 x 8G SD Card
* 1 x SD Card Reader
* 1 x Downloader
* 1 x ARM Emulator
* 1 x PZ5640-D OV5640 5MP Binocular Camera
* 1 x PZ7606 AD7606 8CH 200KSPS ADC Module
* 1 x PZ-LCD430 4.3-Inch TFT LCD Display

Package Weight (Varies by Selected Kit):
* Development Board Only: 0.3kg
* ADDA Kit: 0.4kg
* Binocular Camera Kit: 0.4kg
* LCD Kit: 0.4kg
* Classic Kit: 0.5kg


Click to Learn More:

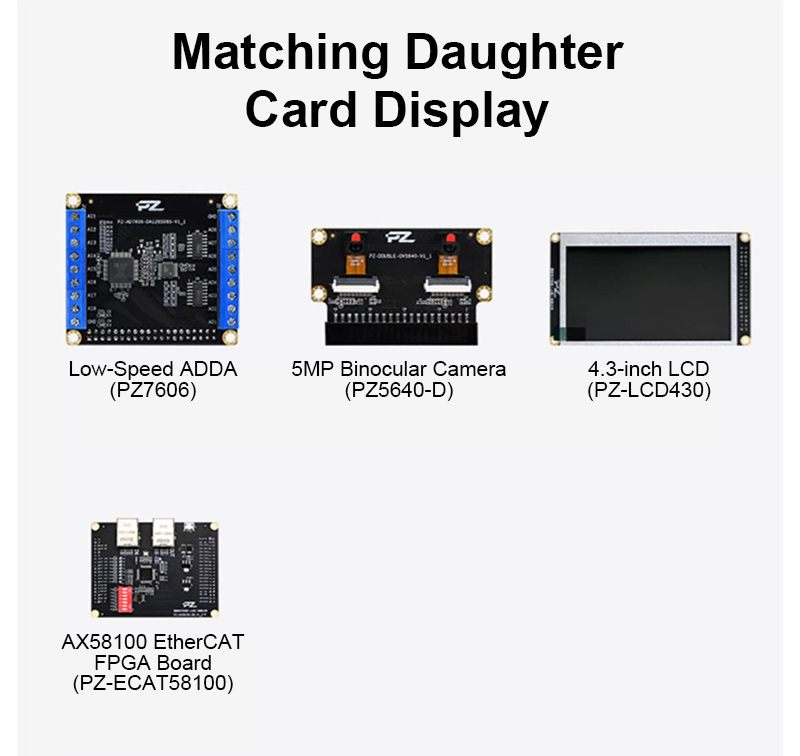

Click to Learn More about the Optional Daughter Cards:
