سعر عادي
$928.00
سعر عادي
سعر البيع
$928.00
Available Package Options:

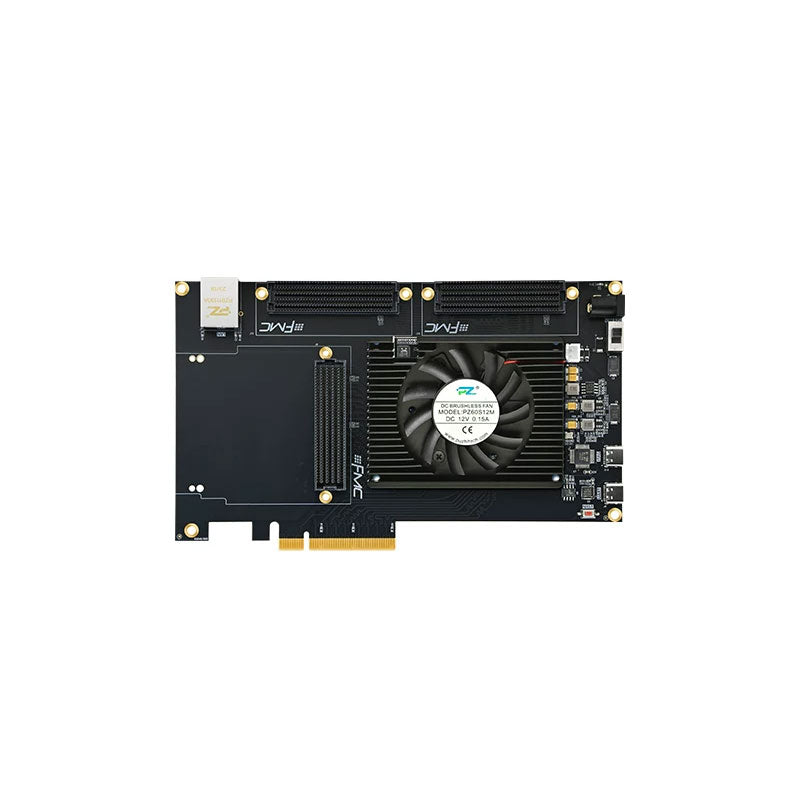

* Board Only: PZ-KU040-FHT-KFB FPGA Development Board

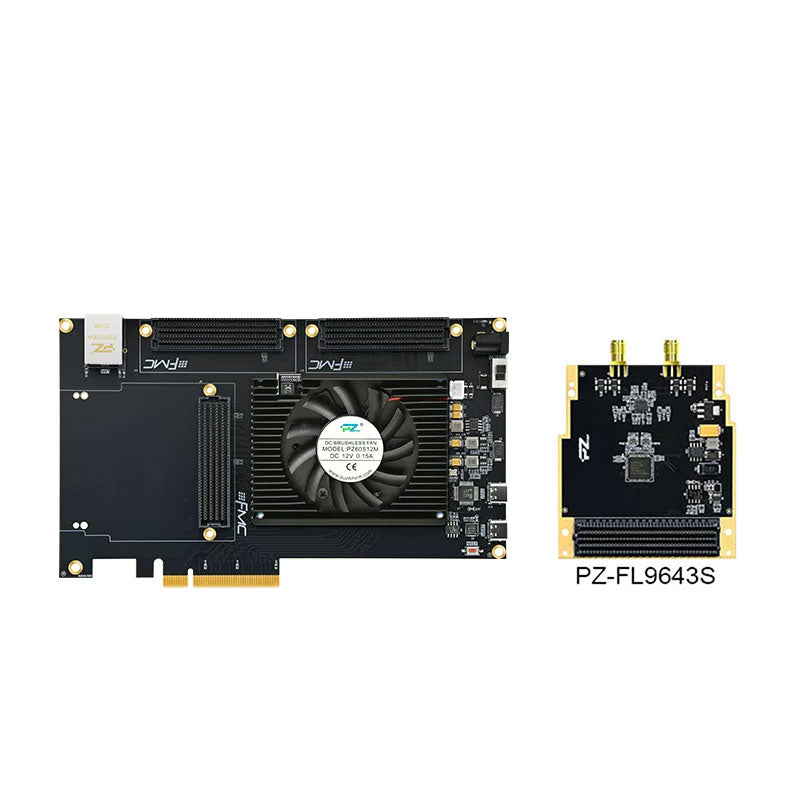

* Board + PZ-FL9643S: PZ-KU040-FHT-KFB Development Board + AD9643 2-Channel 250MSPS ADC

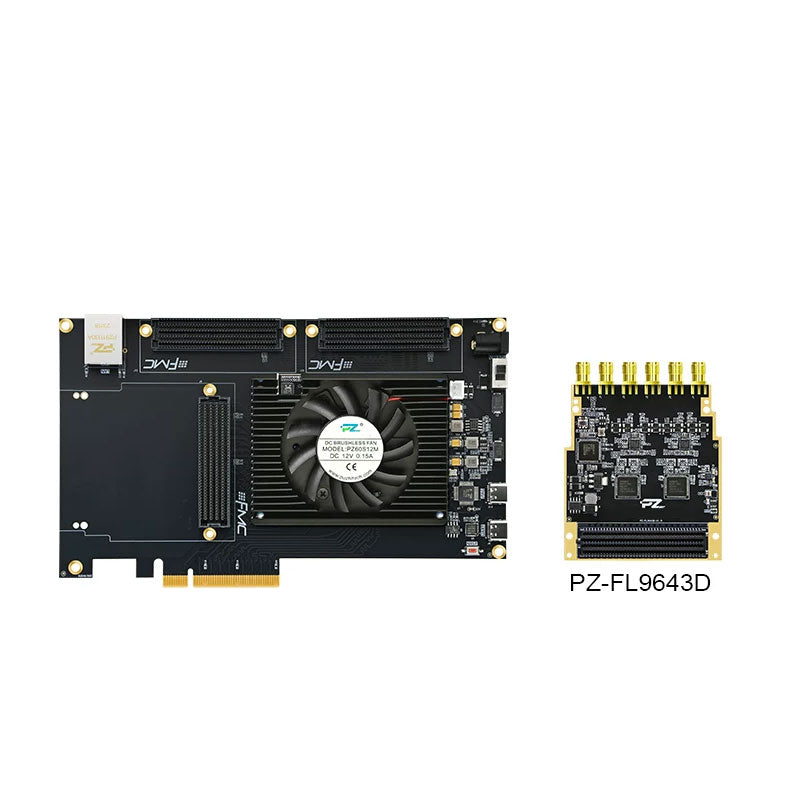

* Board + PZ-FL9643D: PZ-KU040-FHT-KFB Development Board + AD9643 4-Channel 250MSPS ADC
* Board + PZ-FL4322: PZ-KU040-FHT-KFB Development Board + 2-Channel 250MSPS ADC + 2-Channel 500MSPS DAC

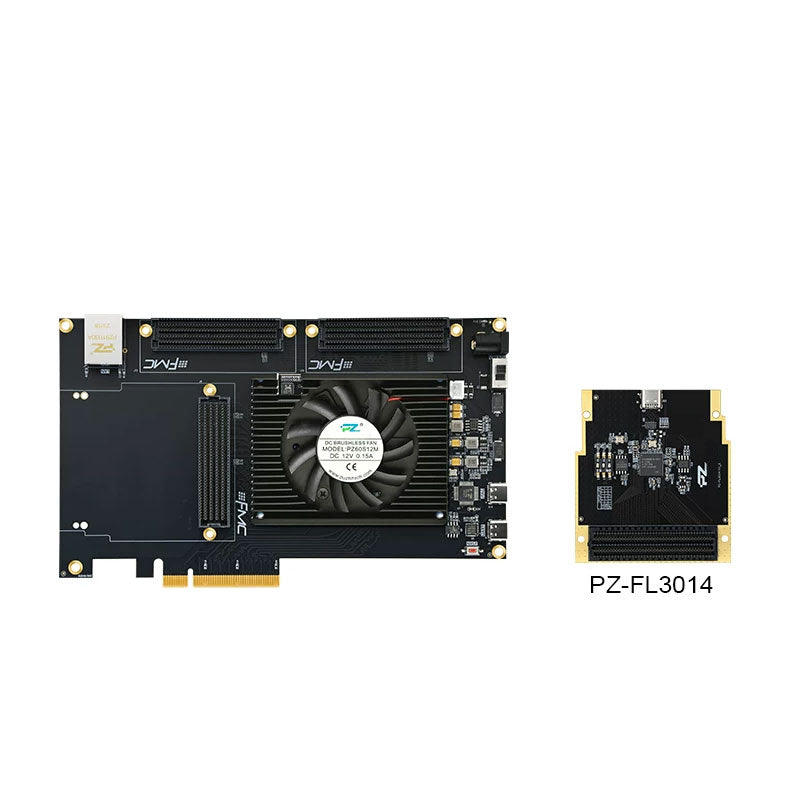

* Board + PZ-FL3014: PZ-KU040-FHT-KFB Development Board + USB 3.0 FPGA FMC Module
* Board + PZ-FL2514D: PZ-KU040-FHT-KFB Development Board + AD250D14 4-Channel 250MSPS ADC

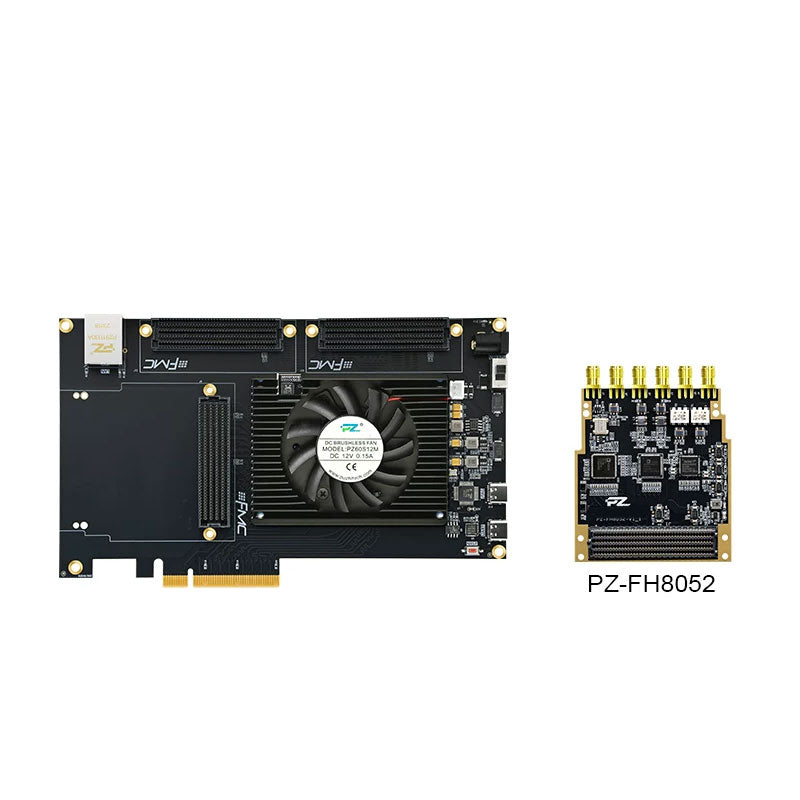

* Board + PZ-FH8052: PZ-KU040-FHT-KFB Development Board + 2-Channel 1GSPS ADC + 2-Channel 1.125GSPS DAC
Note:
* All package options include the PZ-KU040-FHT-KFB FPGA Development Board. Board Only includes the development board without an additional ADC, DAC, or FMC module.
Features:
* Kintex UltraScale FPGA Development Board: Designed for FPGA development, prototyping, and high-performance embedded applications.
* Full FMC I/O Connectivity: Features FMC-HPC + 2x FMC-LPC interfaces for flexible peripheral and expansion options.
* Gigabit Ethernet: Integrated Gigabit Ethernet interface for high-speed network communication and data transfer.
* PCIe 3.0 x8 Support: Supports PCIe 3.0 x8 for high-bandwidth data transmission and system expansion.
* Integrated Downloader: Built-in downloader simplifies FPGA programming and development, with no external programmer required.
Parameter Information:
* Industry Certification: Industrial Grade
* Accessory: Heatsink
* Processor Architecture: For ARM and FPGA
* Expansion Slot Types: PCIe, USB and GPIO
* Typical Applications: Embedded Hardware, IoT, Energy & Environment, Industrial Applications, and Consumer Electronics
* Network Interface Configuration: UART, PCIe Network Interface, I/O, and Gigabit Ethernet (1Gbps)
* Expansion Module Compatibility: 1 Module
Packing List (Varies by Selected Package):
Board Only:
* 1 x Development Board
* 1 x 12V 3A Power Adapter
* 2 x Type-C Cables
* 1 x Heatsink (with Fan)
Board + PZ-FL9643S:
* 1 x Development Board
* 1 x 12V 3A Power Adapter
* 2 x Type-C Cables
* 1 x Heatsink (with Fan)
* 1 x PZ-FL9643S AD9643 2CH 250MSPS ADC
Board + PZ-FL9643D:
* 1 x Development Board
* 1 x 12V 3A Power Adapter
* 2 x Type-C Cables
* 1 x Heatsink (with Fan)
* 1 x PZ-FL9643D AD9643 4CH 250MSPS ADC
Board + PZ-FL4322:
* 1 x Development Board
* 1 x 12V 3A Power Adapter
* 2 x Type-C Cables
* 1 x Heatsink (with Fan)
* 1 x PZ-FL4322 2CH 250MSPS ADC + 2CH 500MSPS DAC
Board + PZ-FL3014:
* 1 x Development Board
* 1 x 12V 3A Power Adapter
* 2 x Type-C Cables
* 1 x Heatsink (with Fan)
* 1 x PZ-FL3014 USB 3.0 FPGA FMC Module
Board + PZ-FL2514D:
* 1 x Development Board
* 1 x 12V 3A Power Adapter
* 2 x Type-C Cables
* 1 x Heatsink (with Fan)
* 1 x PZ-FL2514D AD250D14 4CH 250MSPS ADC
Board + PZ-FH8052:
* 1 x Development Board
* 1 x 12V 3A Power Adapter
* 2 x Type-C Cables
* 1 x Heatsink (with Fan)
* 1 x PZ-FH8052 2CH 1GSPS ADC + 2CH 1.125GSPS DAC
Package Weight (Varies by Selected Package):
* Board Only: 1.15kg
* Board + PZ-FL9643S: 1.23kg
* Board + PZ-FL9643D: 1.25kg
* Board + PZ-FL4322: 1.25kg
* Board + PZ-FL3014: 1.22kg
* Board + PZ-FL2514D: 1.25kg
* Board + PZ-FH8052: 1.26kg
