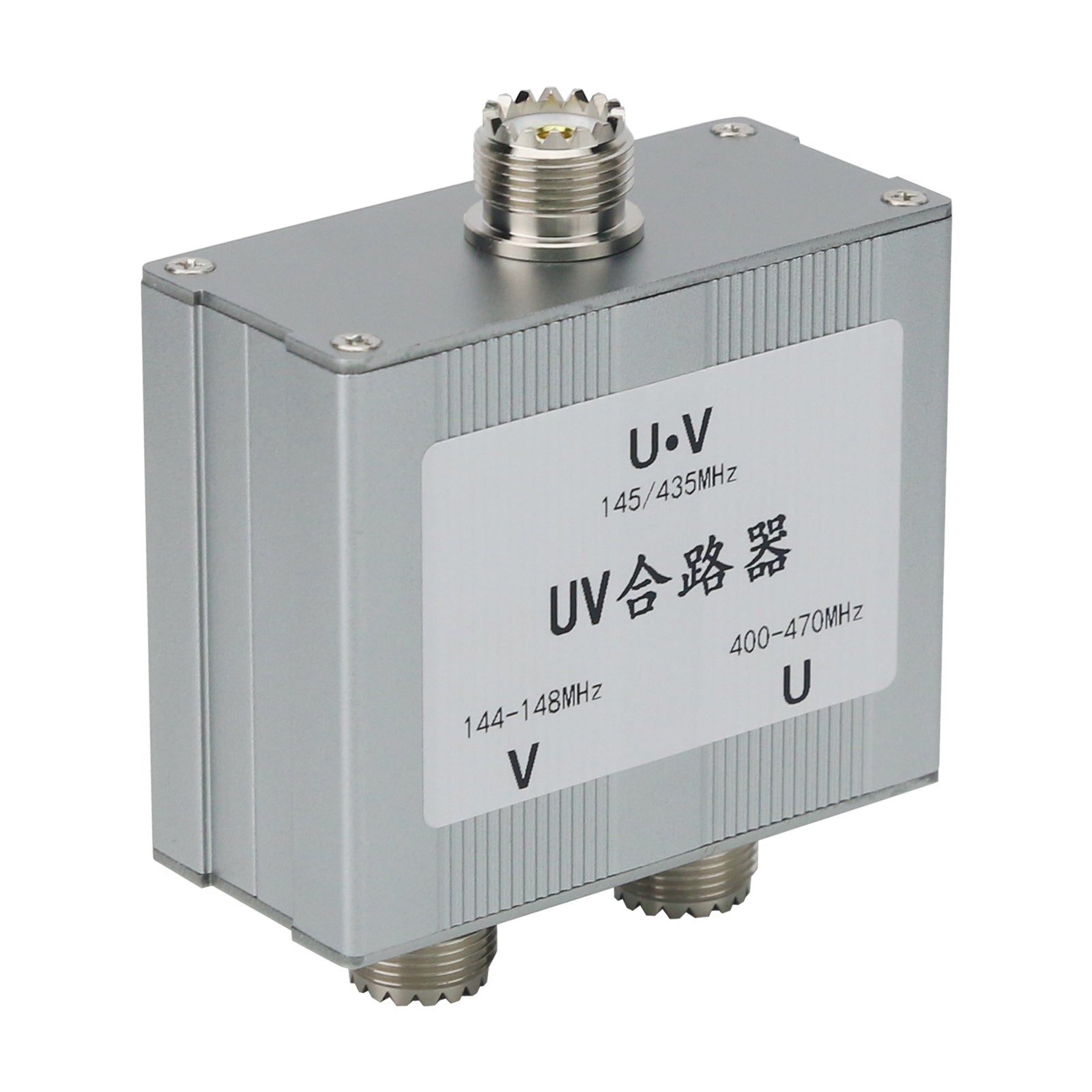

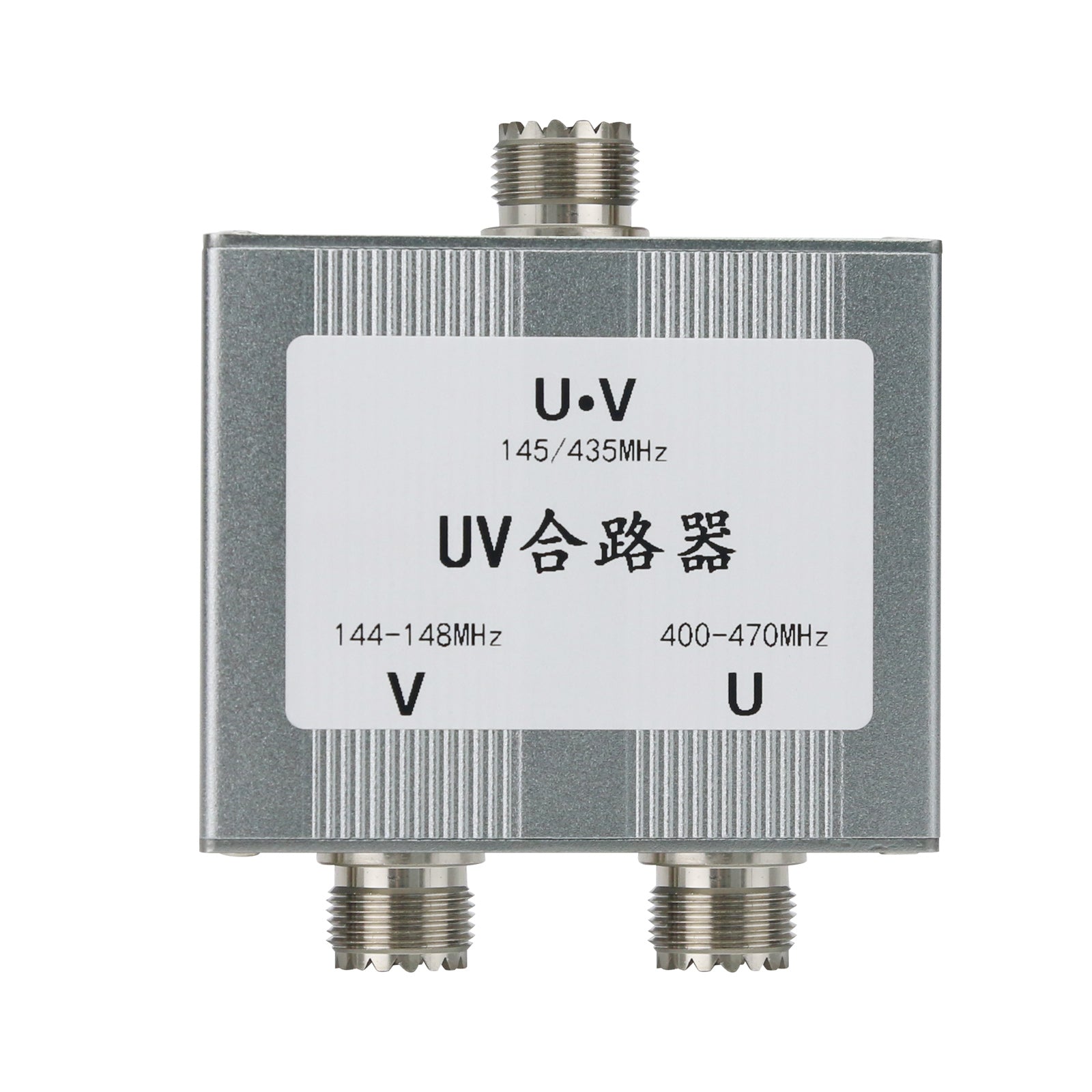

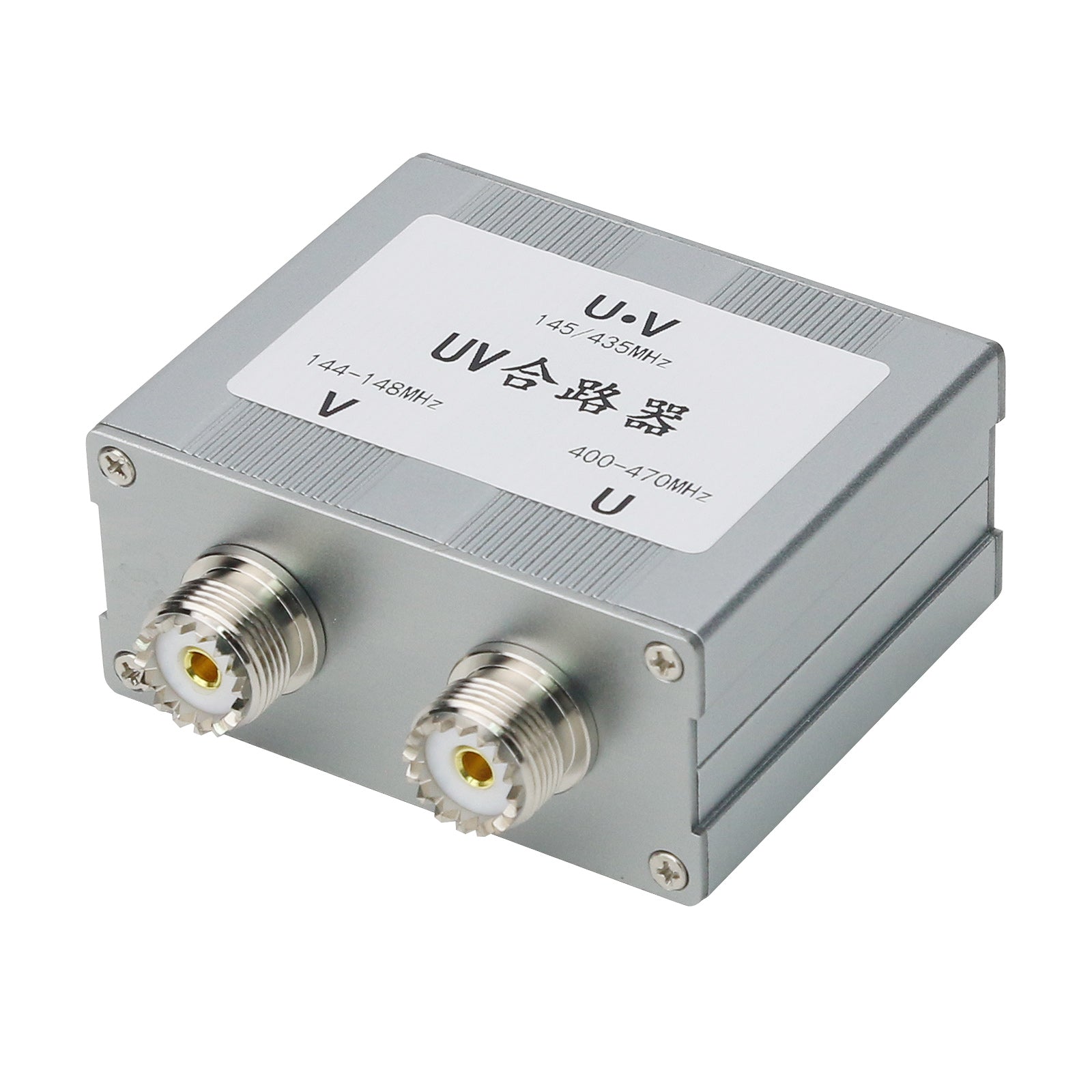

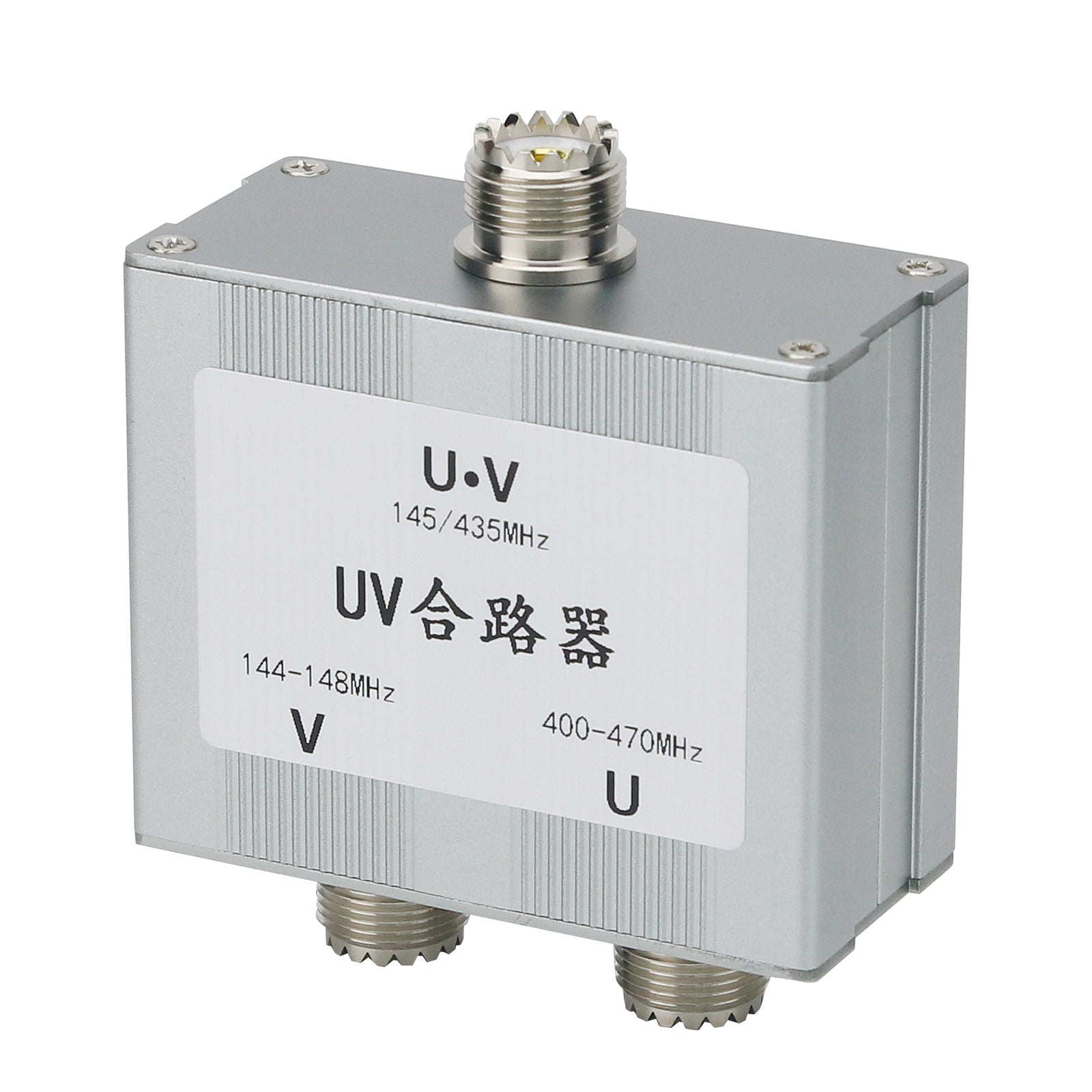

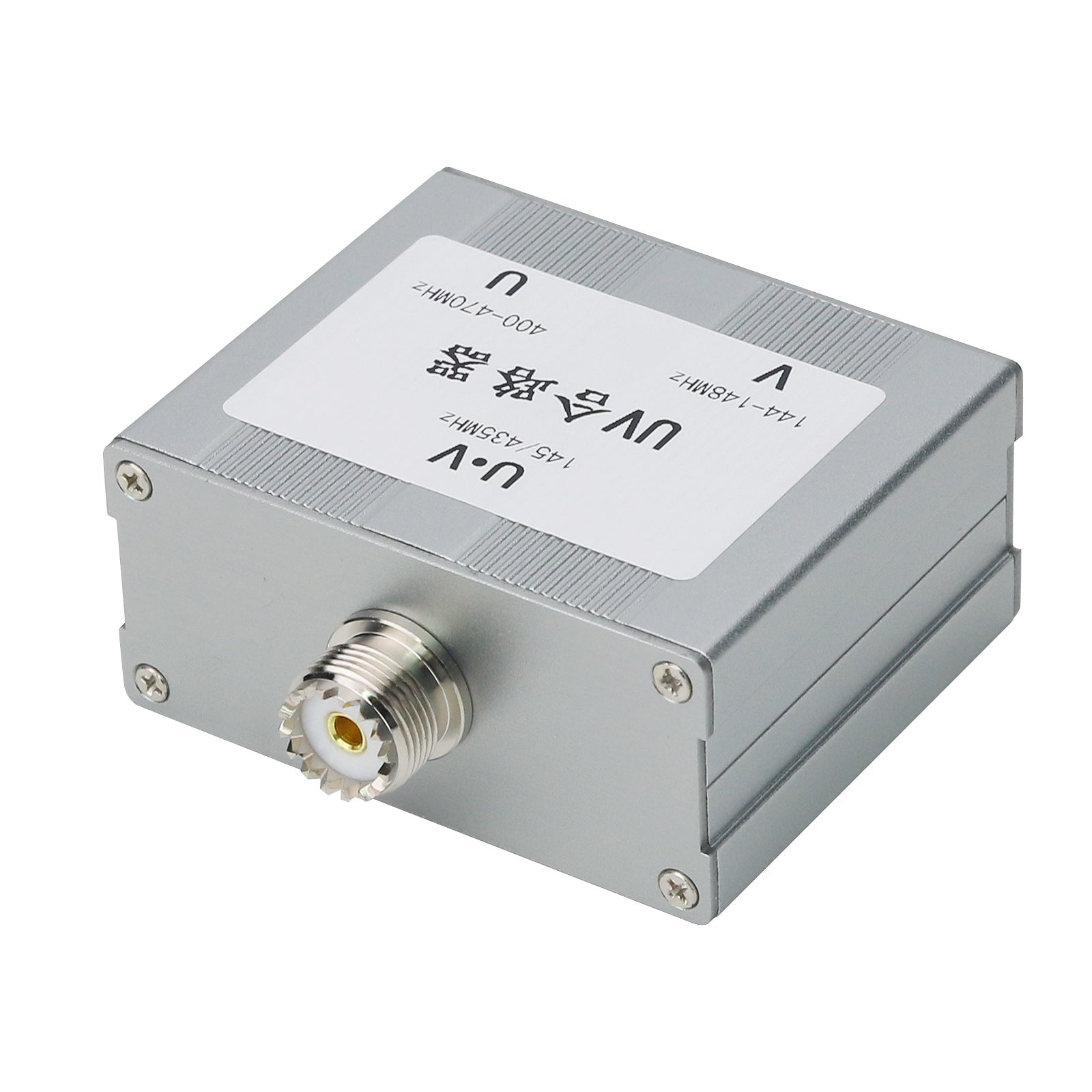

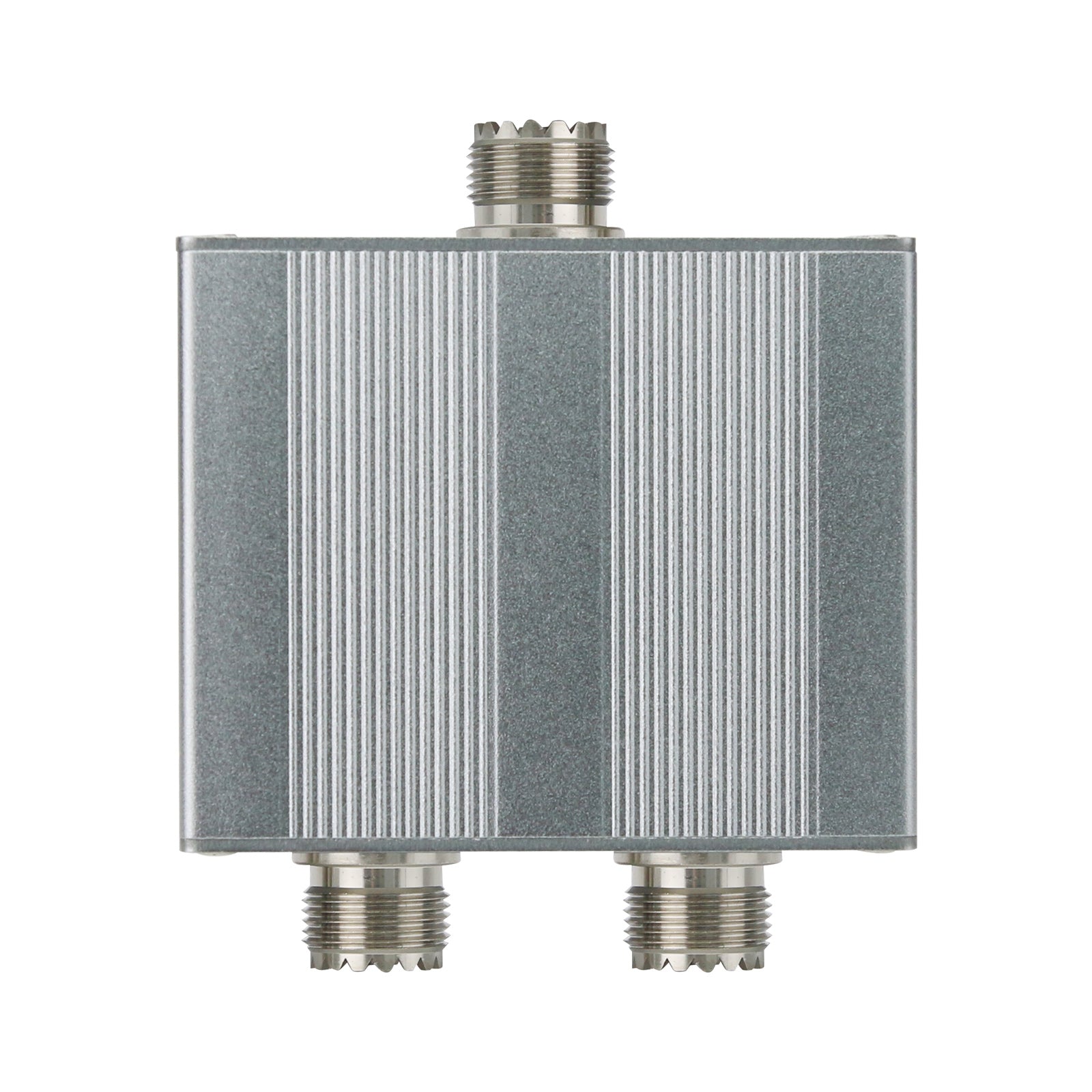

HamGeek VHF UHF RF Combiner RF Power Combiner Power Divider with M Connector Suitable for Ham Radios
تعذر تحميل مدى توفر الطلب
Specifications:

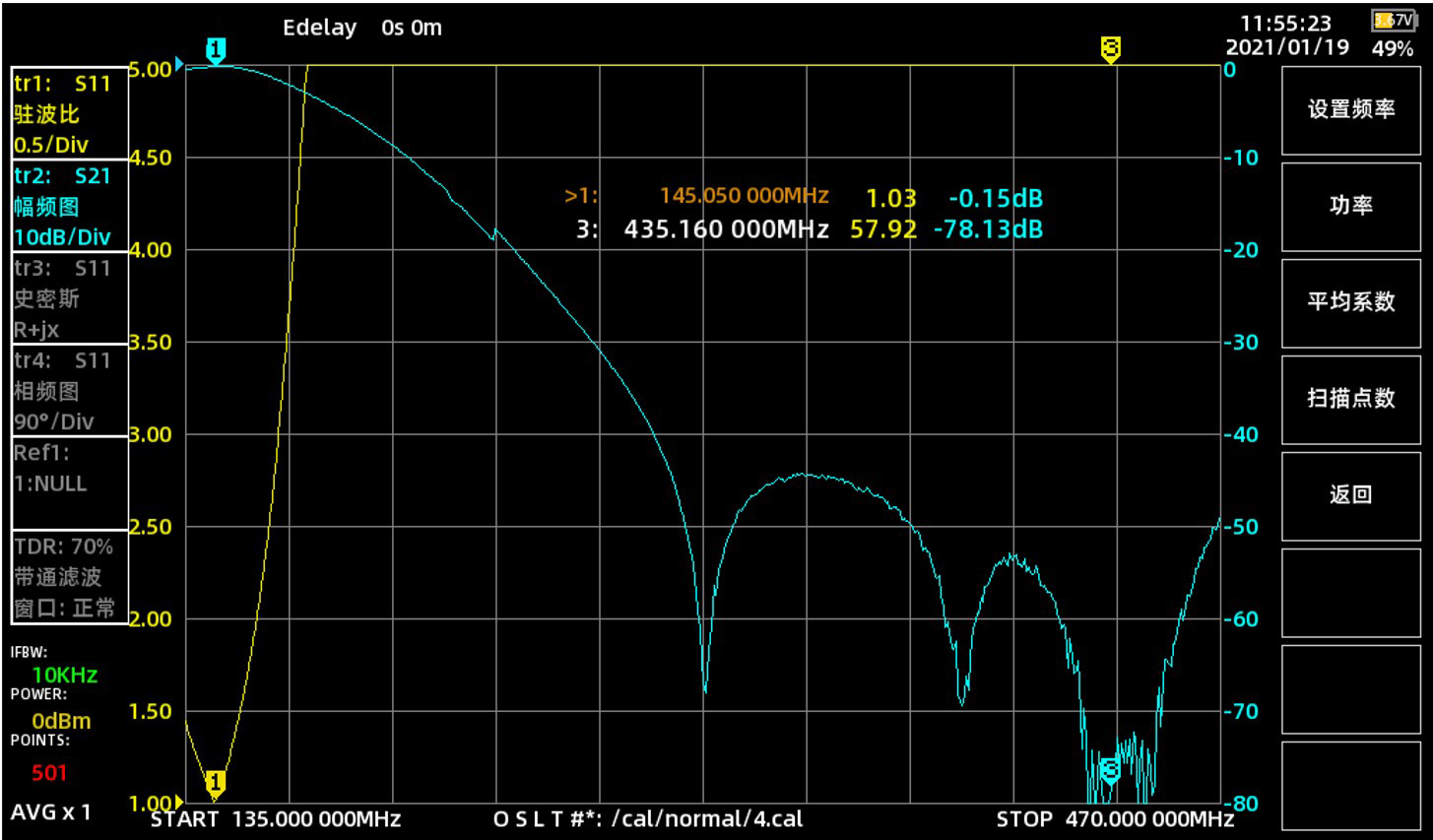

- VHF working bandwidth: 135-175MHz (144-148MHz recommended for better effect); in-band insertion loss: less than 0.2dB

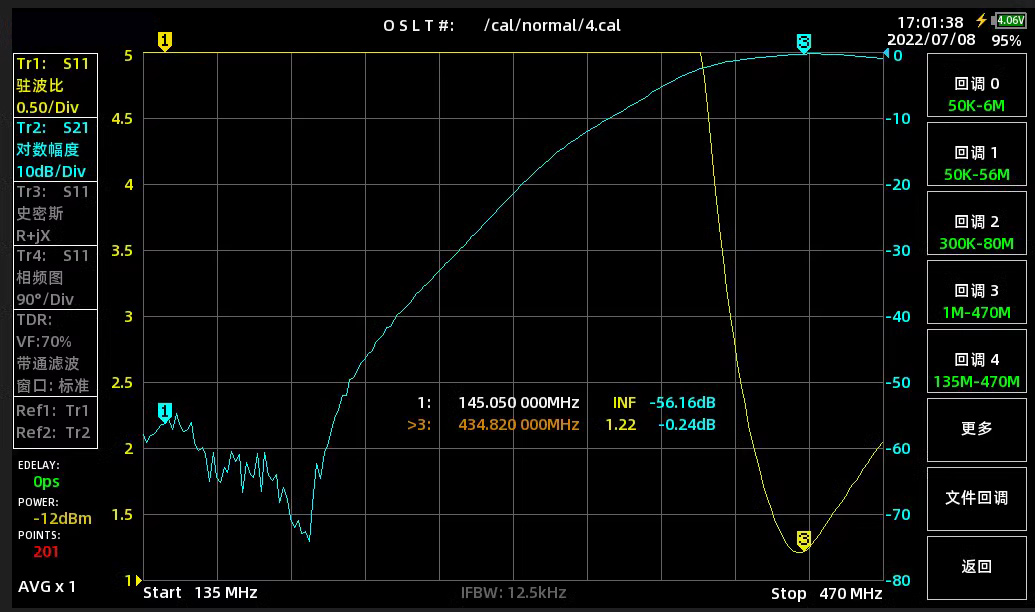

- UHF working bandwidth: 400-470MHz; in-band insertion loss: less than 0.3dB
- Isolation: The isolation of 145MHz and 435MHz is greater than 55db
- SWR: Less than 1.5
- Power: 100W for VHF and 60W for UHF
- Interface: L16-F (to ensure the above technical indicators)
- Dimensions: 95 x 76 x 35mm/3.7 x 3 x 1.4" (including protrusions)
- N.W.: 200g/lb
- G.W.: 0.3kg/0.7lb

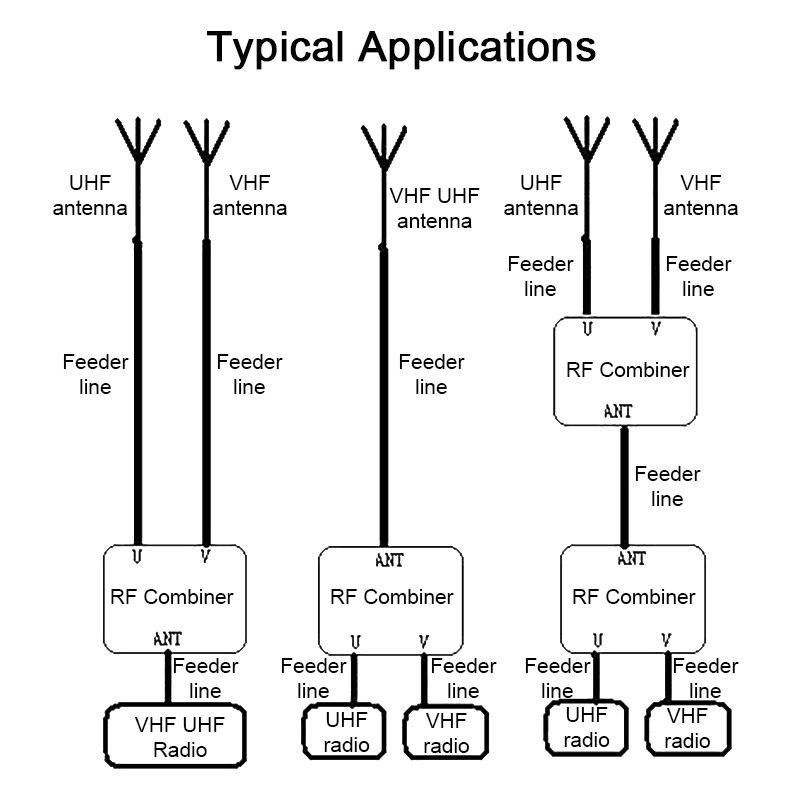

Applicable Scenarios:
1. Some VHF UHF radios have two RF output ports, the original intention is to use VHF and UHF antennas separately (in some cases, better effect can be achieved when VHF and UHF antennas are used separately). At this time you need to use two cables to lead out. If the distance from the radio to the antennas is long, the cost of cables will increase even more. The combiner is a good solution to the high cost of cables.
2. There are many VHF UHF radios with only one RF output. Because the gain of a single-band antenna of the same length is often higher than that of a dual-band antenna, users need to set up two antennas.
3. If you already have two UHF and VHF radios and have a dual-band antenna, you can use the combiner to make reasonable use of your resources.
4. For those who already have UHF and VH radios and two corresponding antennas: If you live on a higher floor, you can use a combiner to reduce the cost of your cable or feeder.
Package Included:
- 1 x HamGeek RF Combiner
Note:
- The VHF and UHF working bandwidths can be customized, please inform us of frequency points when ordering. Thank you!
