HamGeek 1530 SDR Loop Antenna 50KHz-30MHz Radio Active Antenna for ALA1530LNP Tecsun

Description:
The upgraded HamGeek 1530 antenna refers to the British 1530 antenna.

Based on the high gain and powerful noise reduction capability of LNR X Loop, it has greater dynamic performance and lower noise control capability, and can receive various weak signals! Everything is tailor-made for enthusiasts who are looking for class-limited reception and high-end demanding requirements. The upgraded version of ALA1530LN is a 65cm/25.6" small loop antenna, an ultra-low noise active receiving loop antenna.

If the high price and shipping costs of the ALA1530LN for Wellbrook put you off, then this 1530 antenna will bring benefits to HAM/BCL enthusiasts.

The new version 1530 inherits and improves the design of the previous generation product, adds a tuning device, makes the receiving frequency range clearer and accurate, and upgrades the detachable copper ring (for easy storage in a small bag) to make your travel easier. It can also catch radio signals from the noise and greatly enhance your DX experience. The long wave, medium wave, and short wave are all balanced, amplified, and squelched. It is your ideal DX device!

Frequency coverage: 50kHz-30MHz
OIP2: 90dBm+
OIP3: 48dBm+

Compared with ordinary whip whip, it has better anti-interference and omni-directionality, effectively resists electromagnetic interference and power noise, and performs better in harsh electromagnetic environments. With aluminum alloy shell and circuit glue protection, it can better adapt to the outdoor environment.

Features:
1. Exclusive custom copper ring
2. New circuit design
3. Its amplifier unit is equipped with an m connector, which is more convenient for carrying and outdoor erection
4. Exclusive design tuning and tuning-free band switch
5. Can be used indoors and outdoors, with strong anti-interference ability
6. Super dynamic, super bandwidth, higher gain and lower background noise control performance

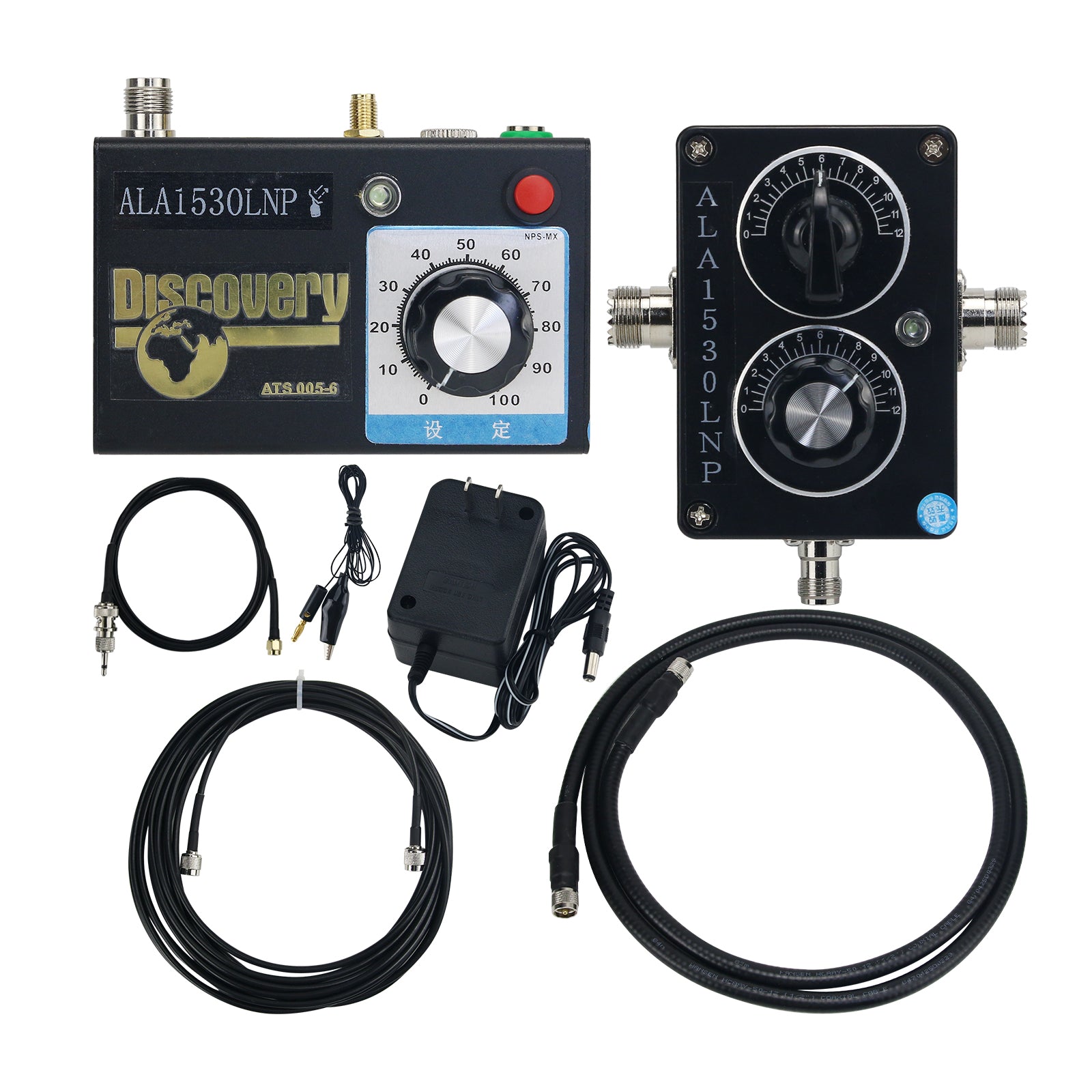

Package Included:
- 1 x 7M/23FT feeder to connect the ring
- 1 x 1M/3.3FT feeder to connect radio

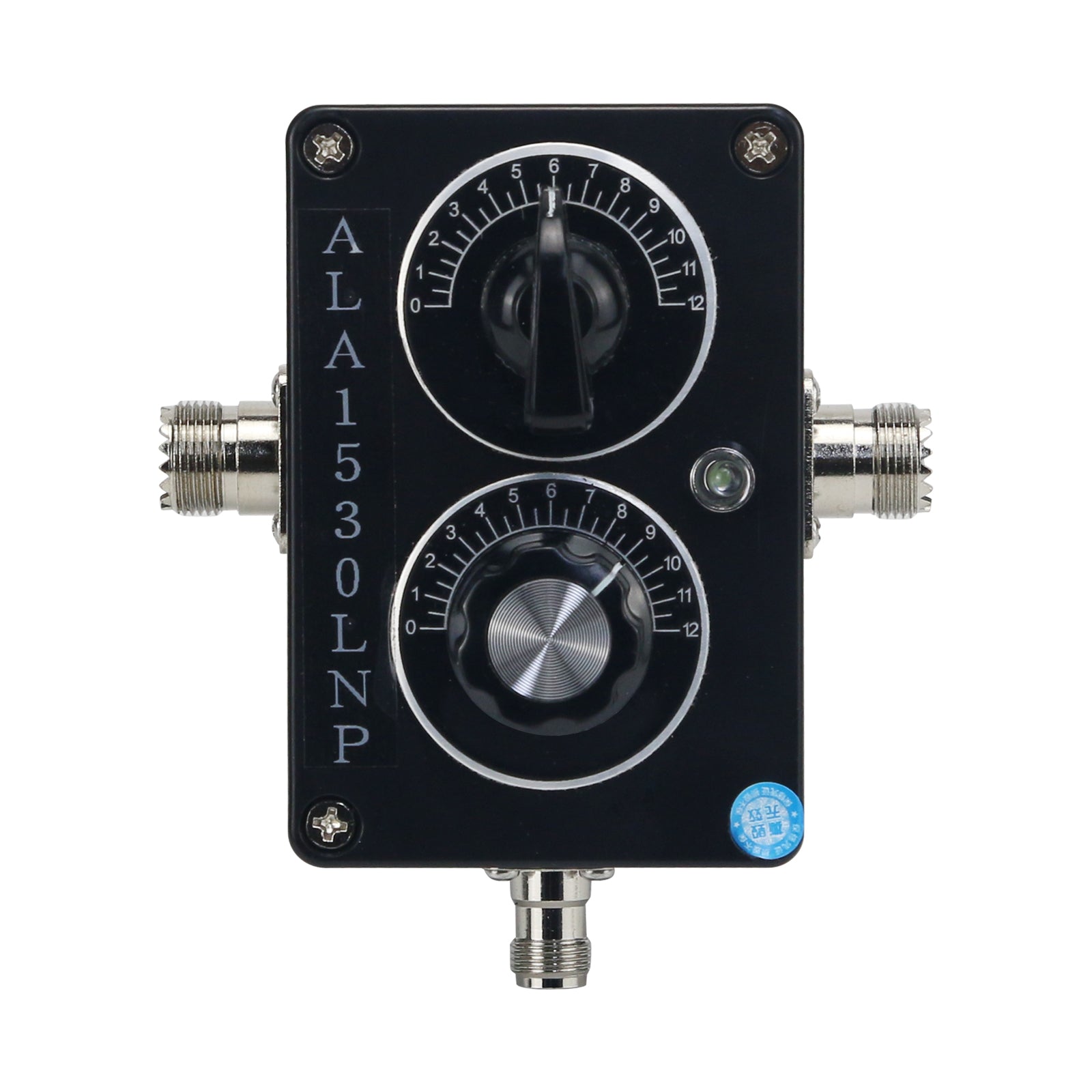

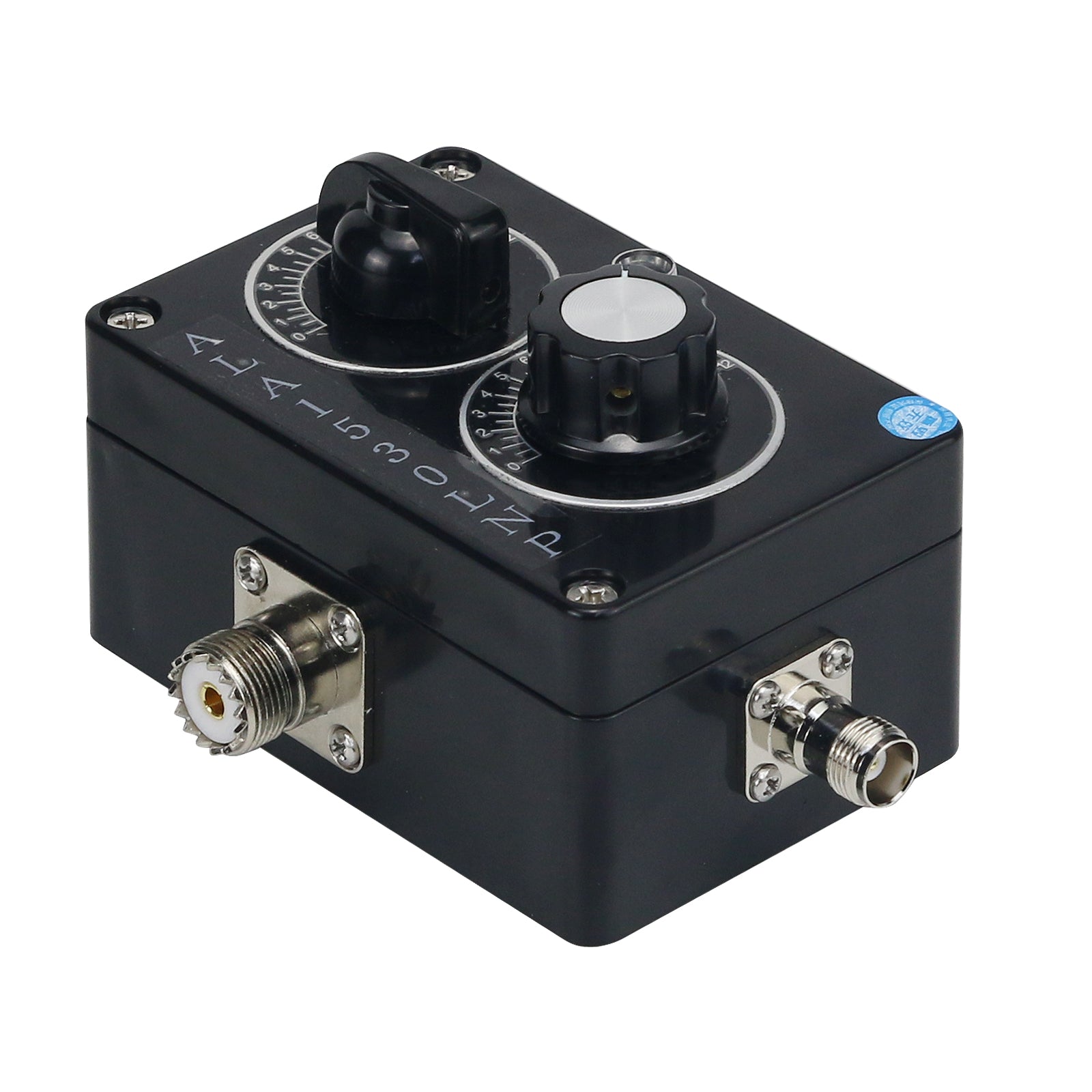

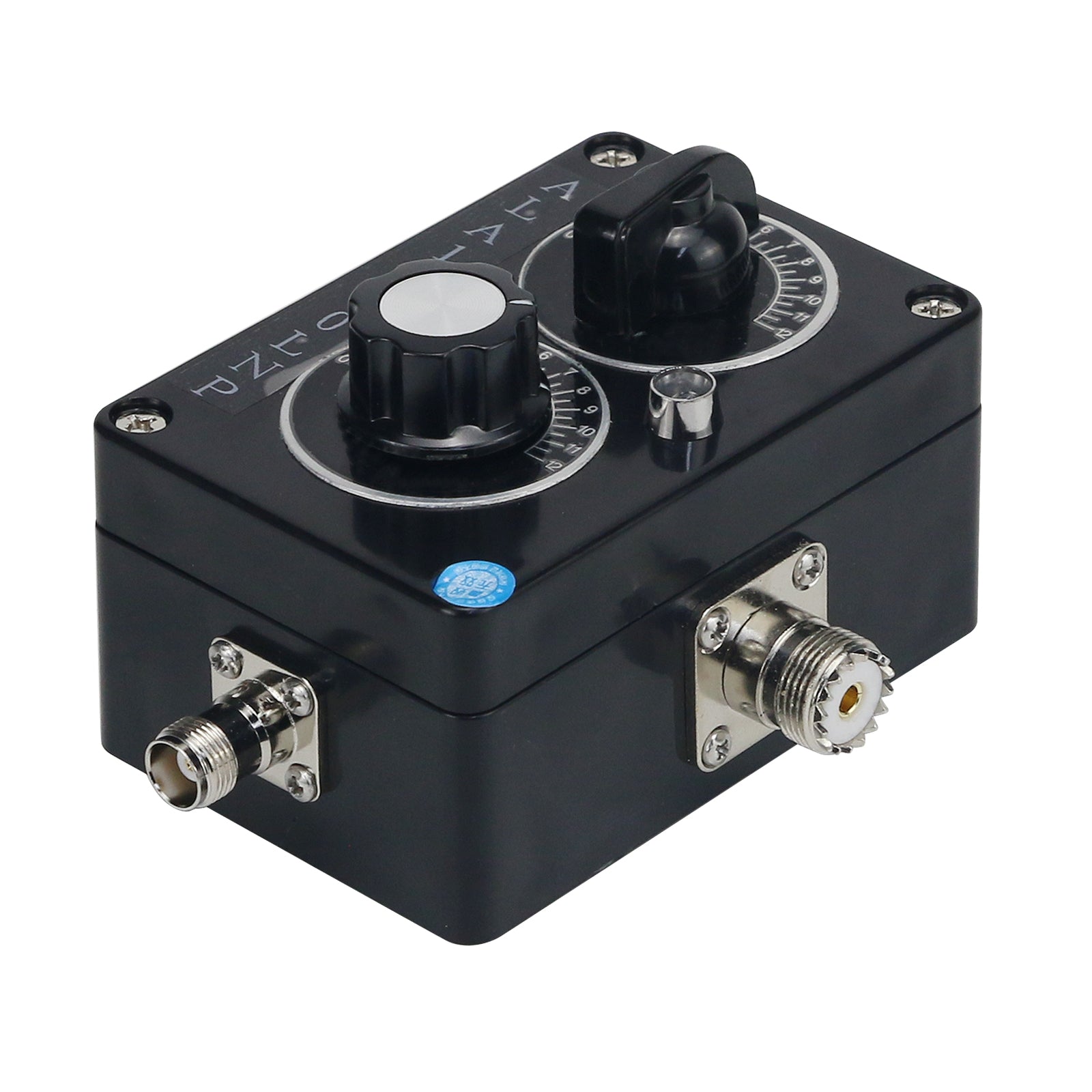

- 1 x Outdoor controller

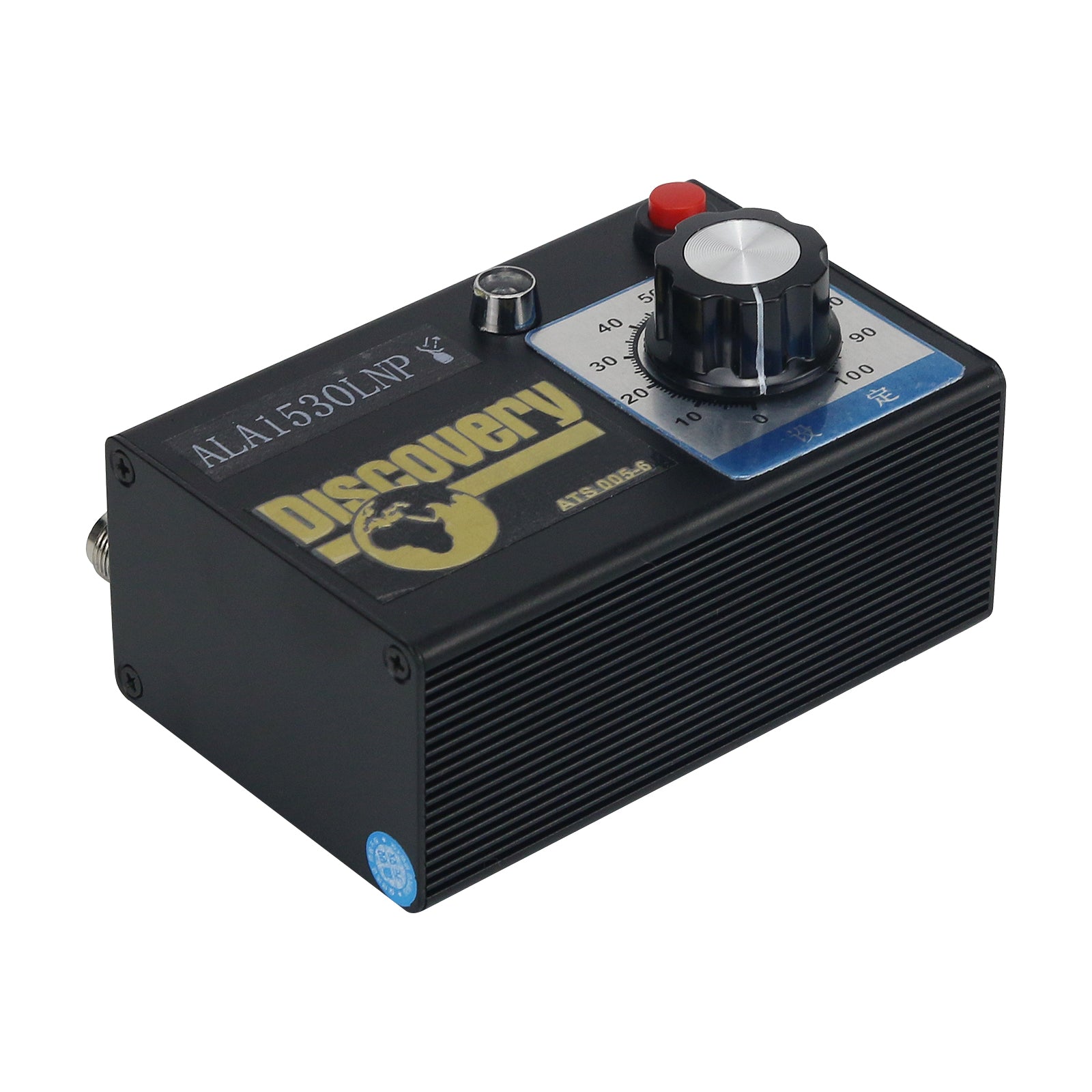

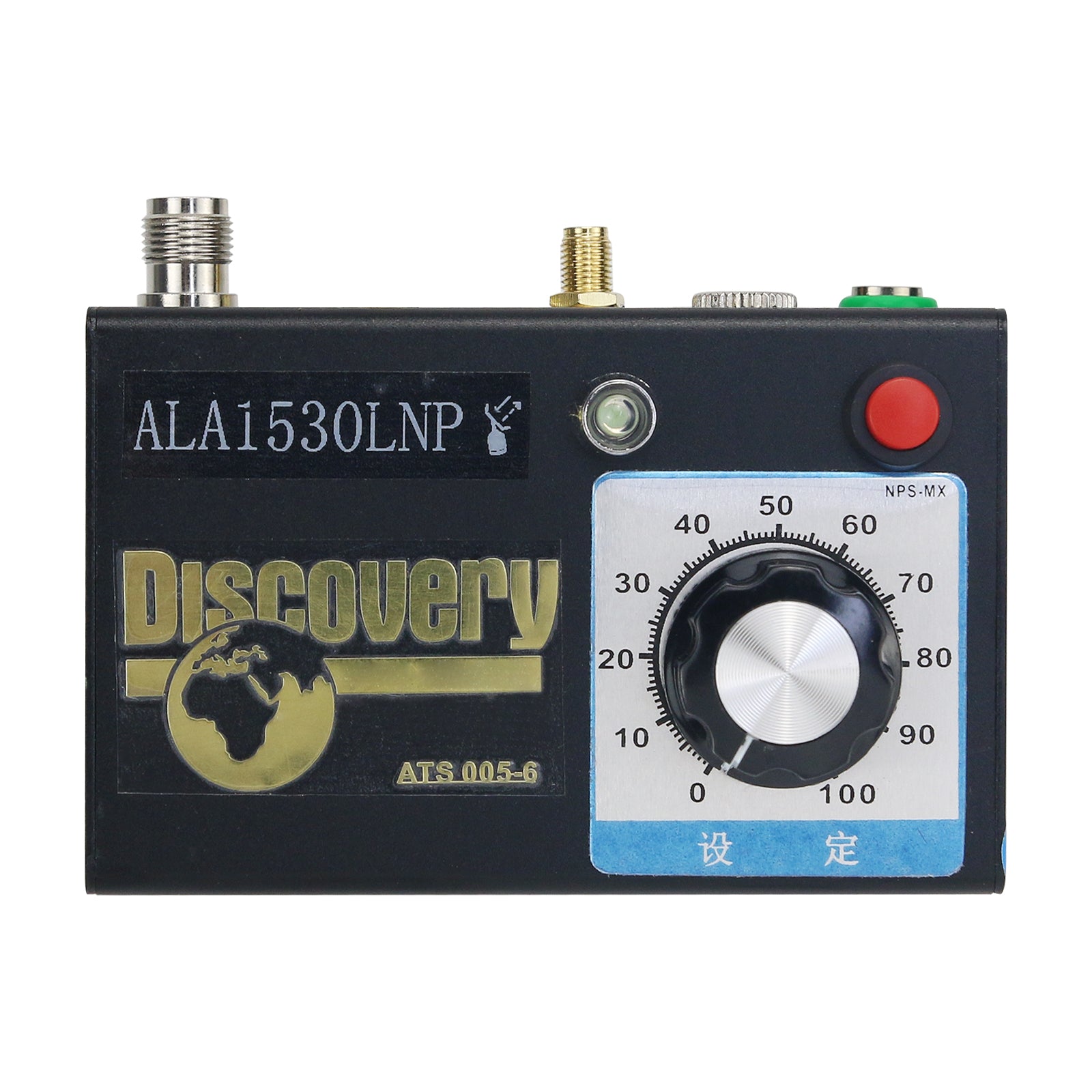

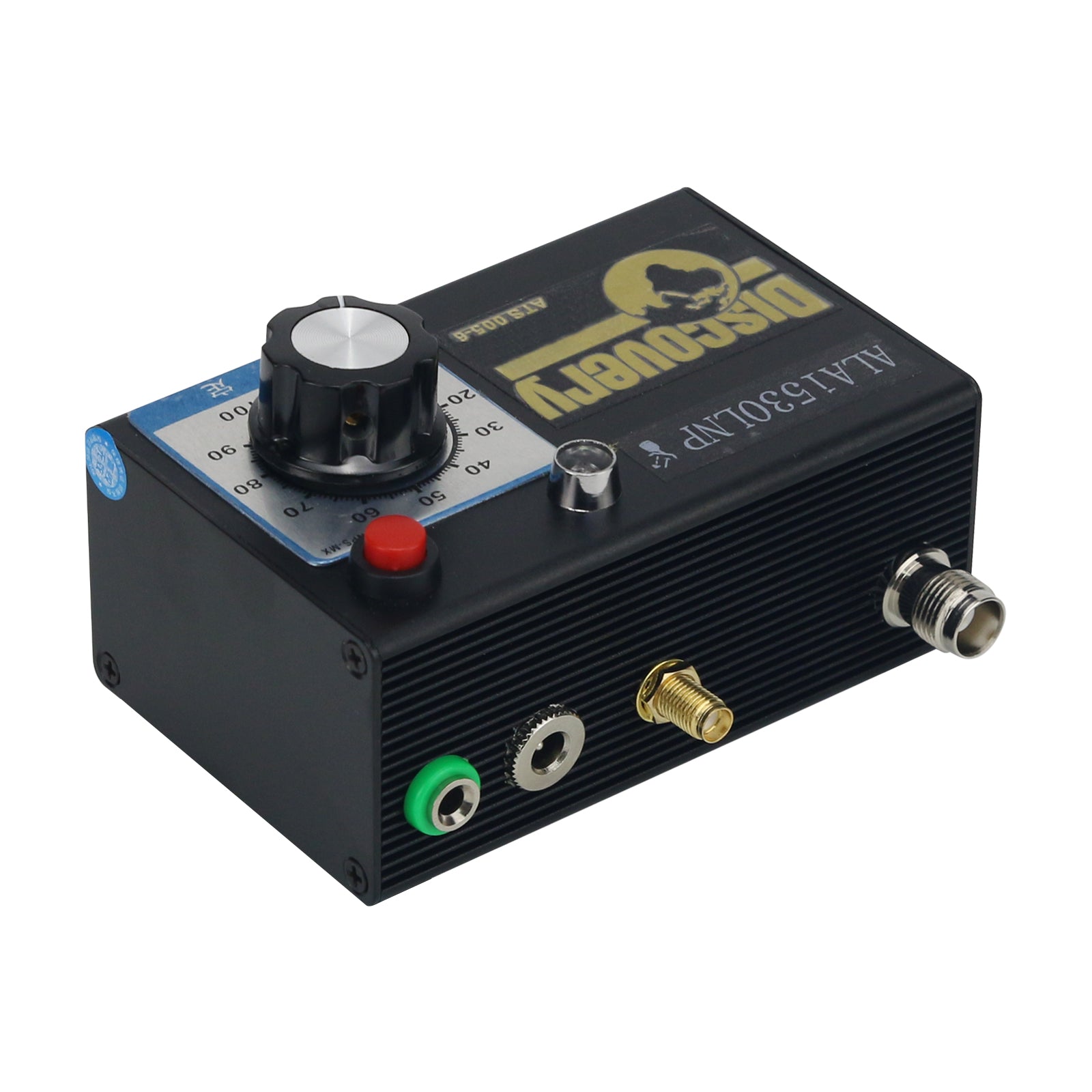

- 1 x Indoor controller
- 1 x Power adapter
- 1 x 65CM/25.6" ring

Note:
- Tripod stand is not included. Please purchase separately.

Instructions:
There are two knobs on 1530 outdoor controller (antenna side). The top knob is for high and low bands. It is measured on three levels, respectively 40-50-60. The frequency range of 40: 3-10MHz. 50's frequency range: 10MHz-30MHz. When in these two levels: first adjust the lower knob to 0. Then turn the knob slowly to the right again. Once when the clearest sound or the loudest noise is heard, it means that the device has reached the best chirp point. Then adjust the direction and erection position of the small ring. It is recommended to install the antenna on the balcony or outdoors.

The knob on the indoor controller is to reduce noise: when the value is 100, it has the smallest gain and the lowest noise. When the value is 0, the signal is the strongest. Generally it is adjusted to 50.

When the top knob on the outdoor controller is 60: it is for tuning-free. When the 60 gear is turned on, the lower knob does not work. At this point, you only need to adjust the direction of the small ring.
